Tire Pressure Warning System





TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code.

Tire Pressure Warning System

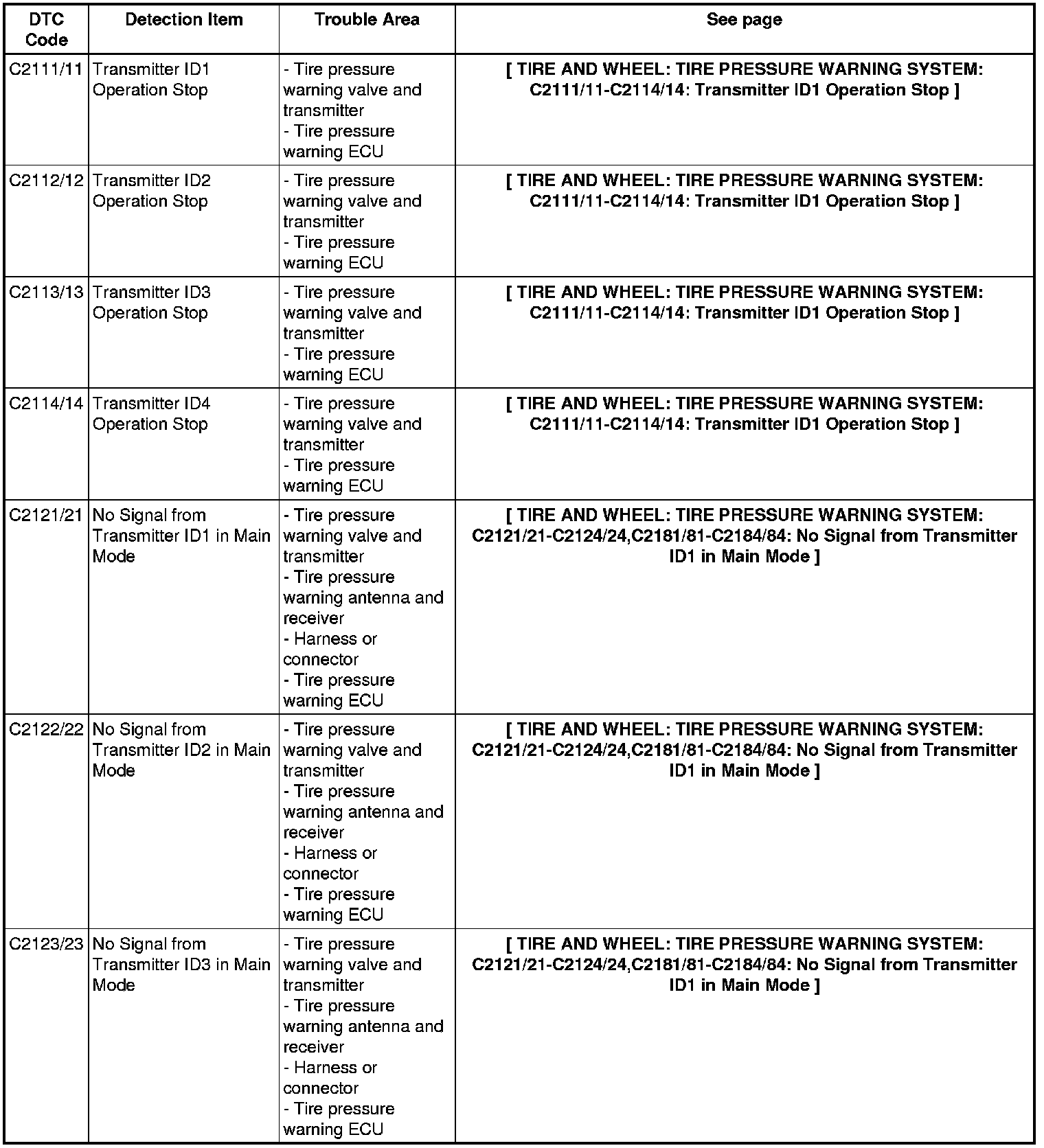

C2111/11-C2123/23:

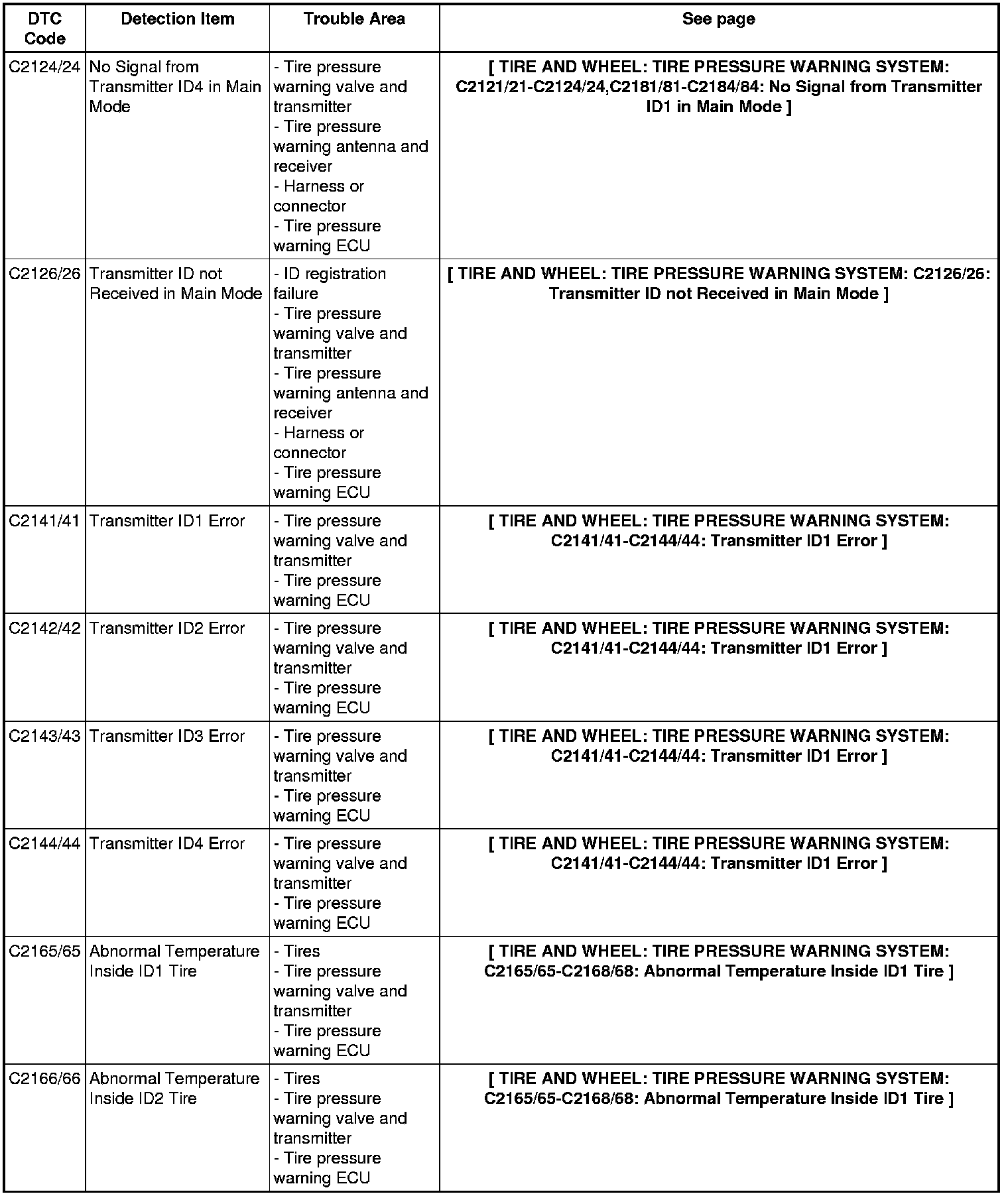

C2124/24-C2166/66:

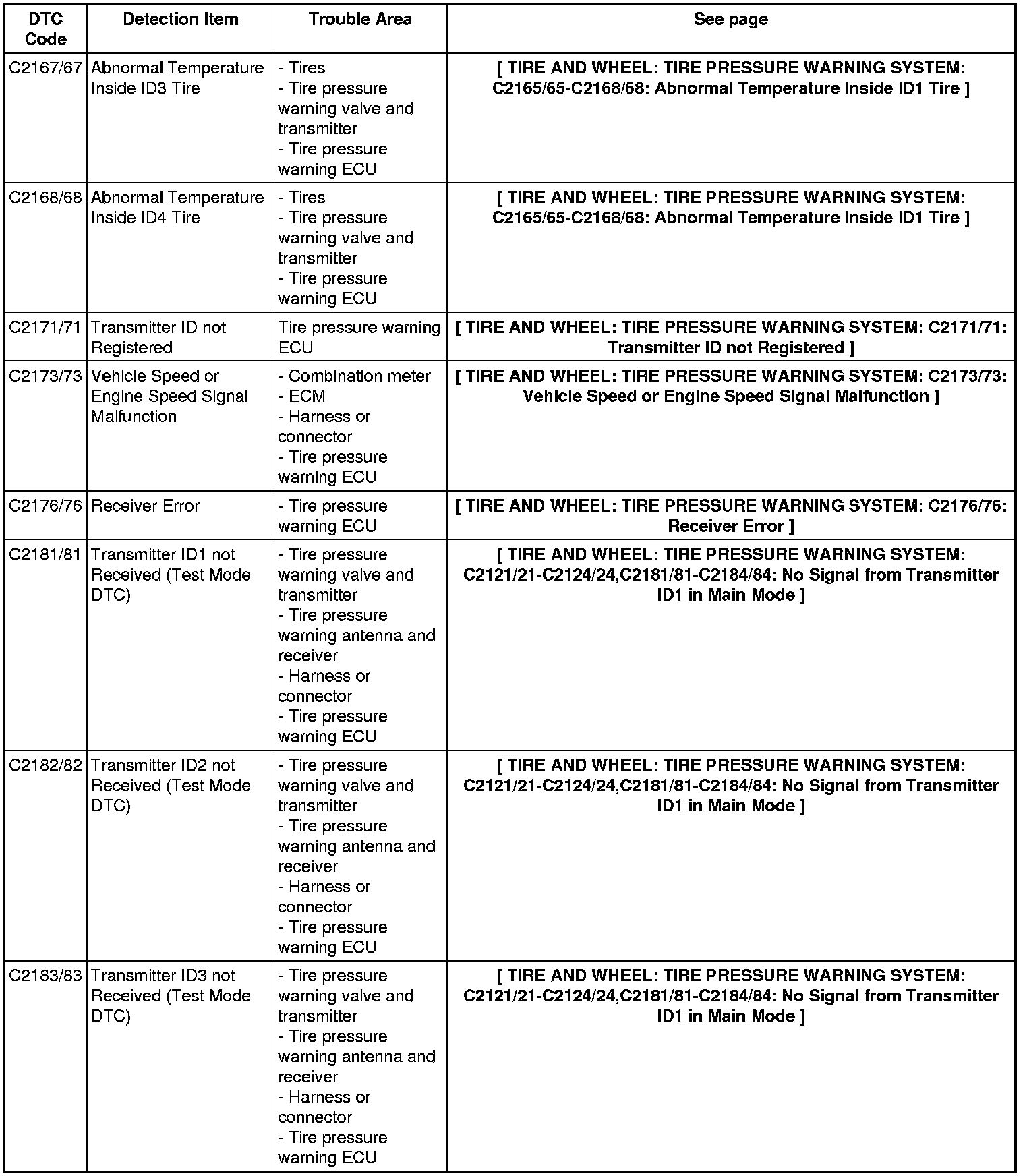

C2167/67-C2183/83:

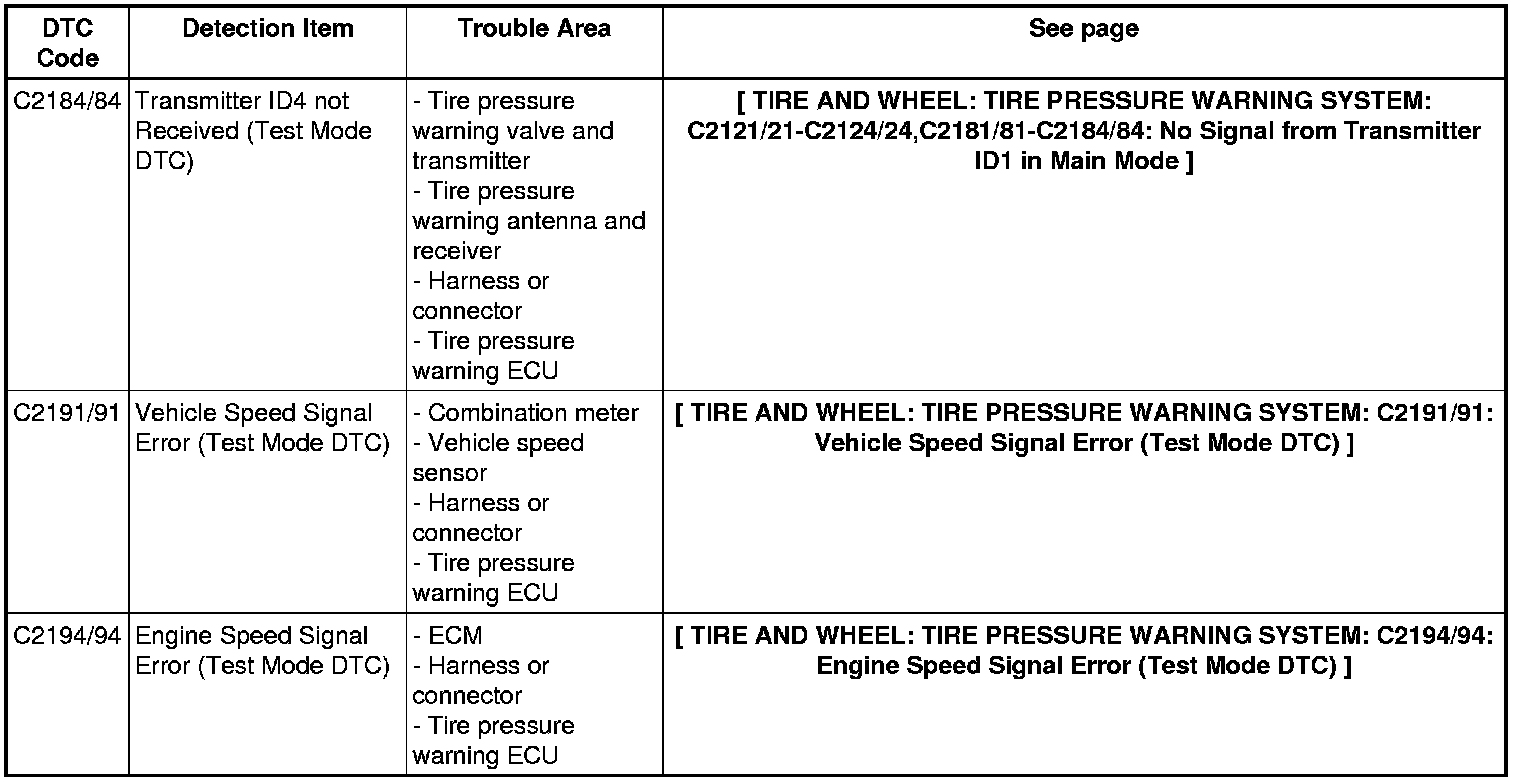

C2184/84-C2194/94:
