Engine Immobiliser System
ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

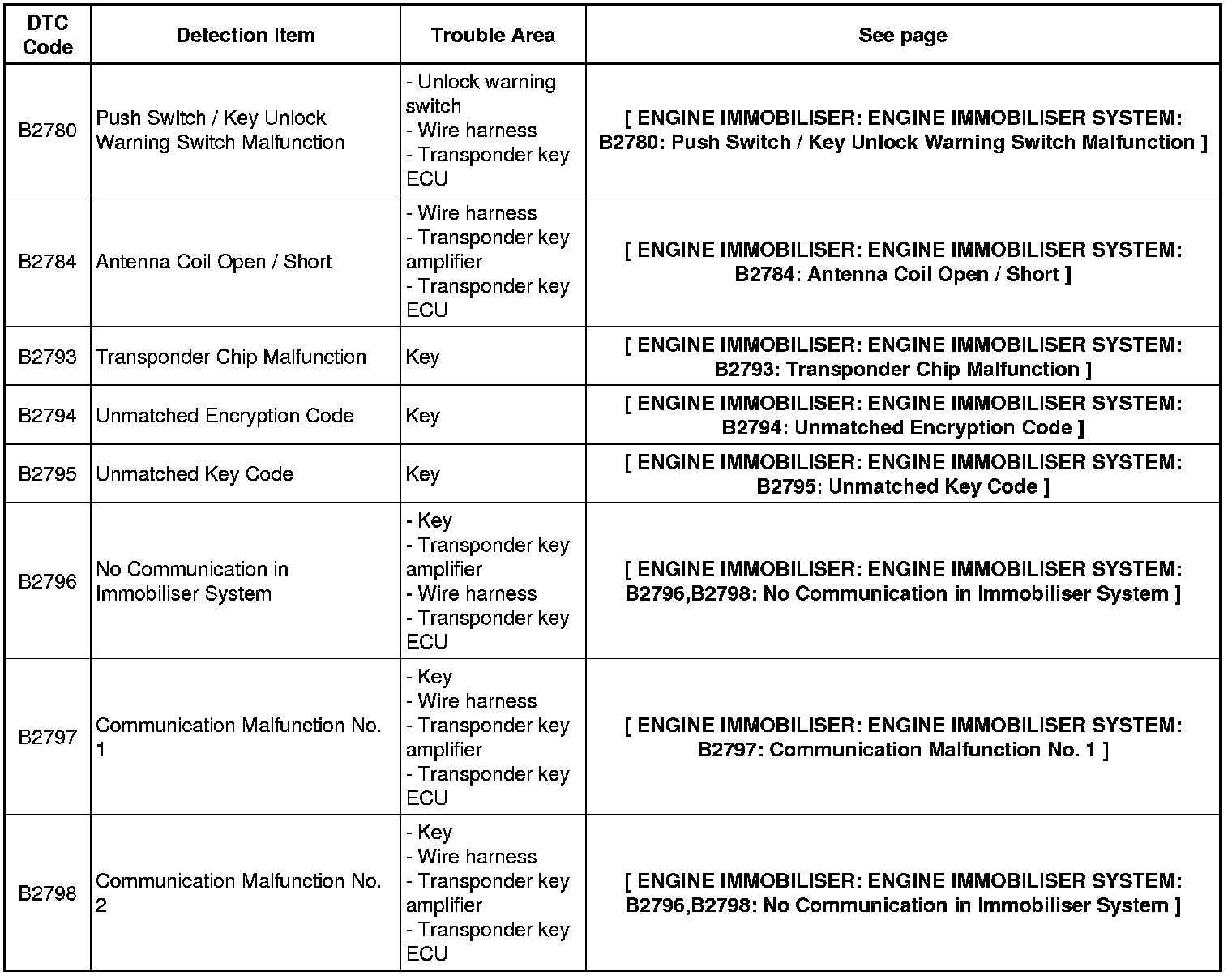

1. TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CHART
Transponder Key ECU:

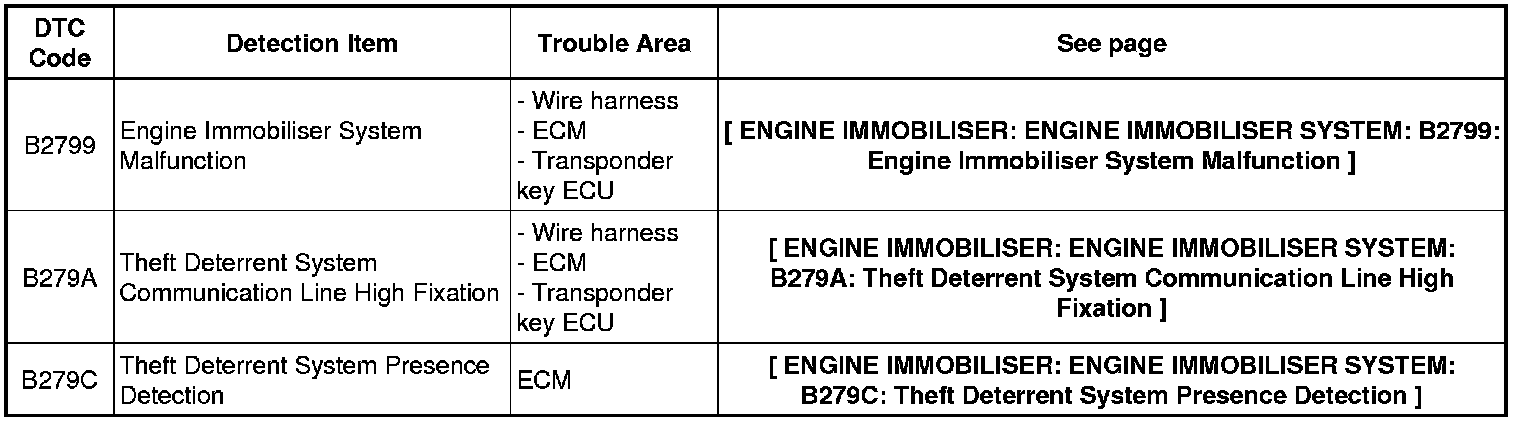

2. ECM DIAGNOSTIC TROUBLE CHART
HINT
The DTCs for the immobiliser system are specified above. If the other codes are output, check the DTC(s) chart for the engine control system.
