Air Conditioning System
AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

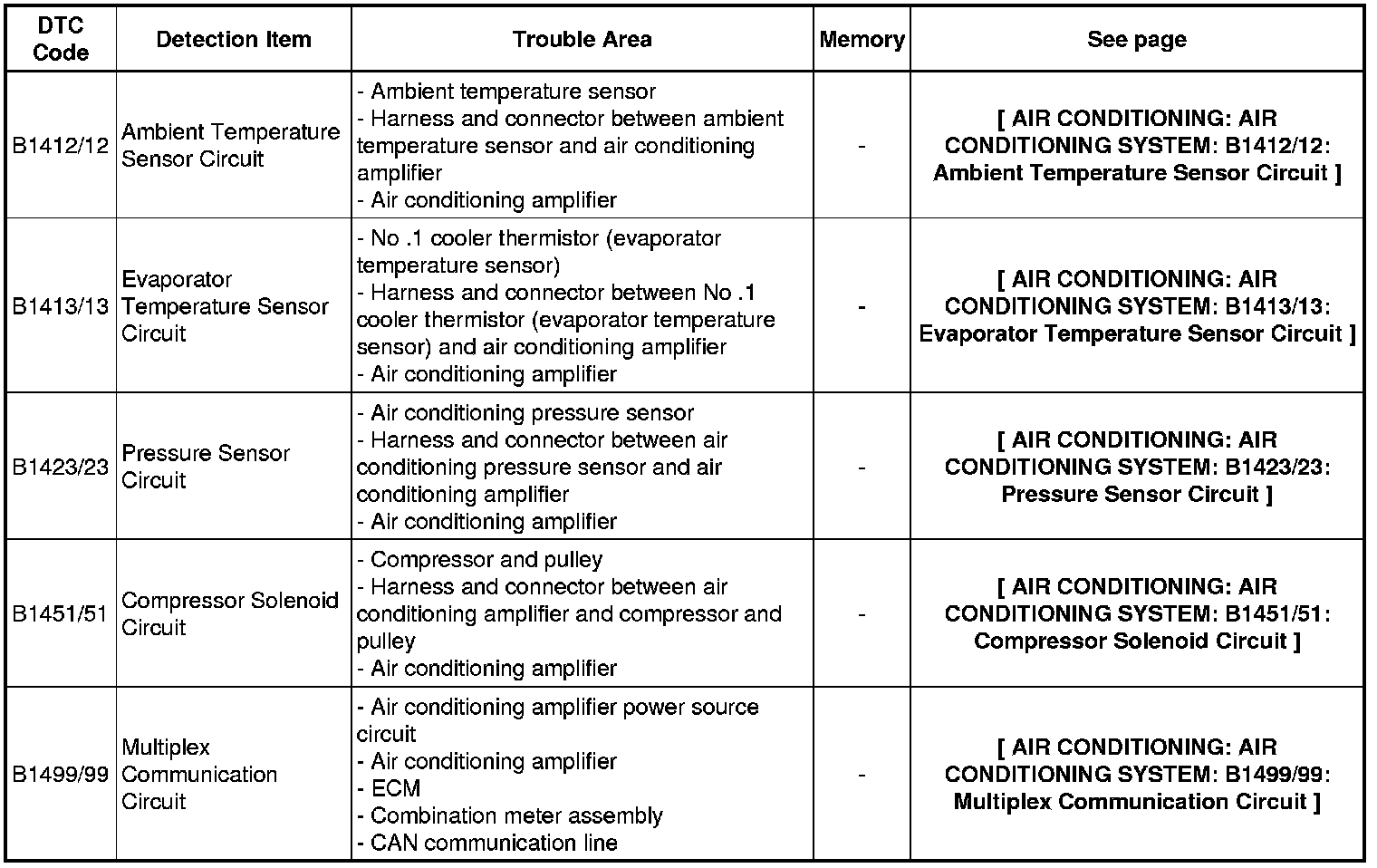

* If a trouble code is displayed during the DTC check, inspect the suspected areas listed for that code.
* Inspect the fuse and relay before investigating the suspected areas shown in the table below.
HINT
When the air conditioning system functions properly, DTC B1400/00 is output.
