ABS (Antilock Brake System) (for Sedan)
BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Sedan): DIAGNOSTIC TROUBLE CODE CHART
NOTICE:
When replacing any parts, turn the ignition switch off.
HINT
* If no abnormality is found when inspecting parts, check the skid control ECU and check for poor contact at ground points.
* If a DTC is displayed during the DTC check, check the circuit for the DTC listed in the table below.
* When 2 or more DTCs are detected, perform circuit inspections one by one until the problem is identified.
* All DTCs in the table below are detected in accordance with 1 trip detection logic.
DTC chart:

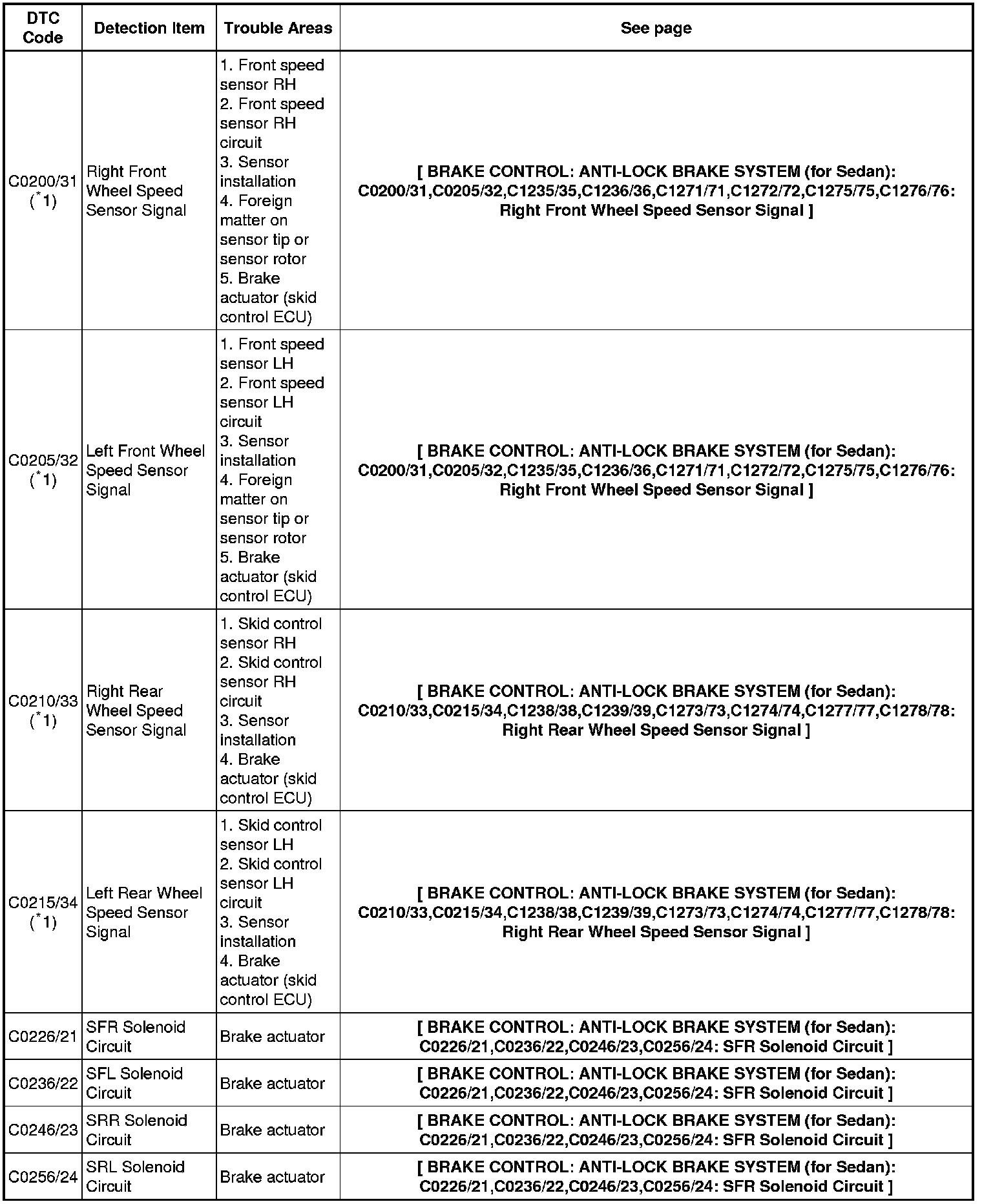

C0200/31-C0256/24:

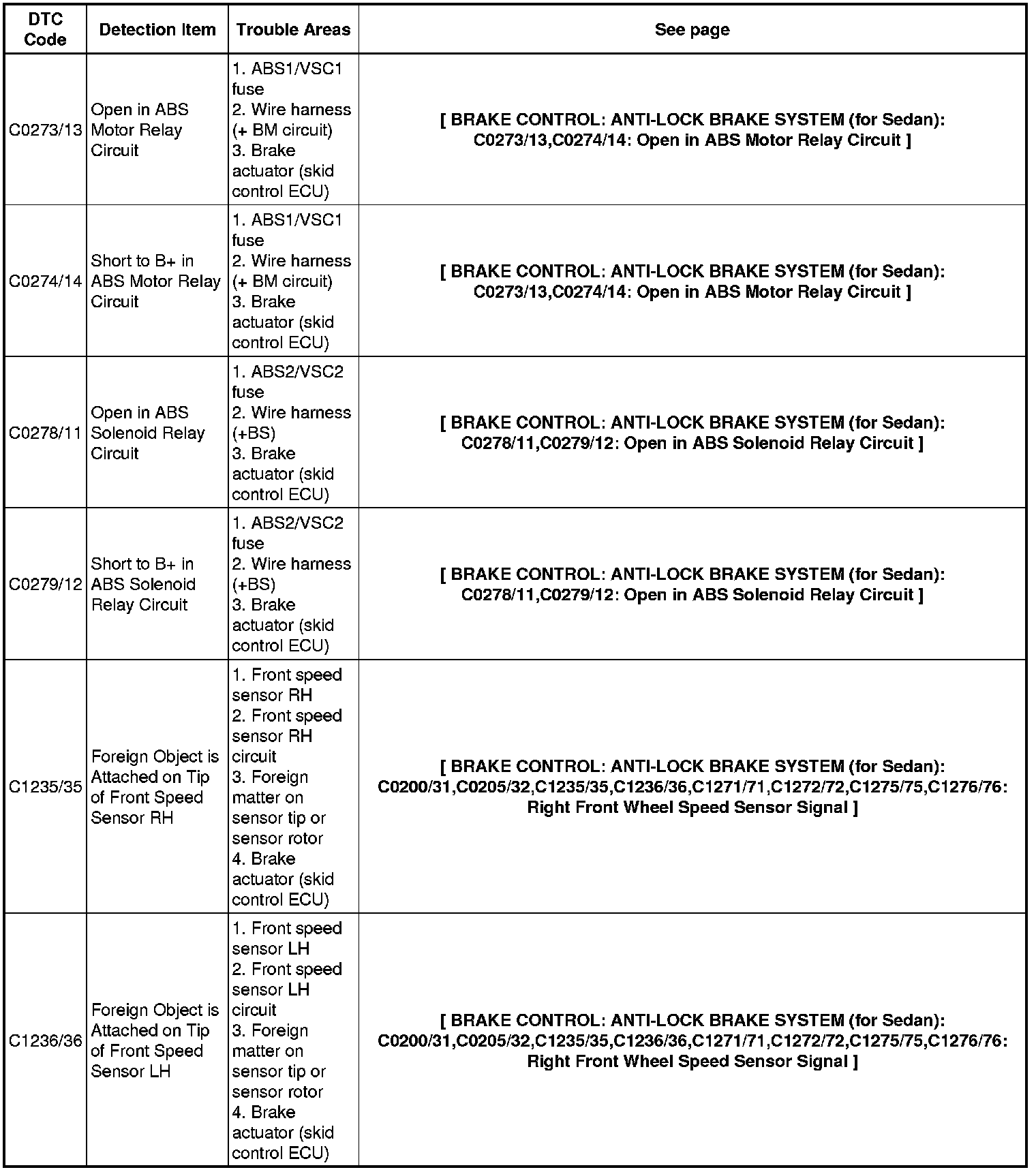

C0273/13-C1236/36:

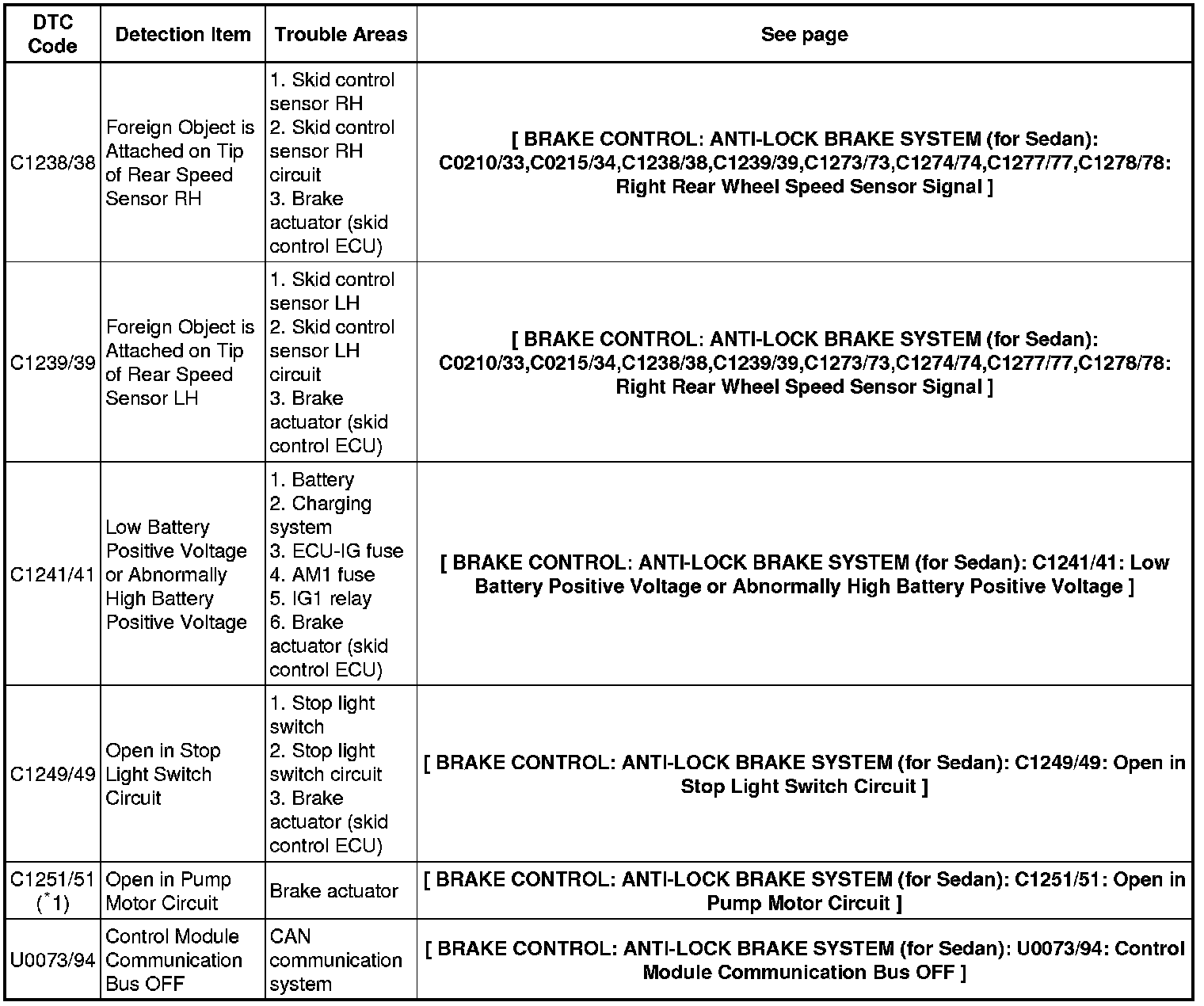

C1238/38-C1251/51 / U0073/94:
HINT
*1:
Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed.
* Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
* Clear the DTC(s).

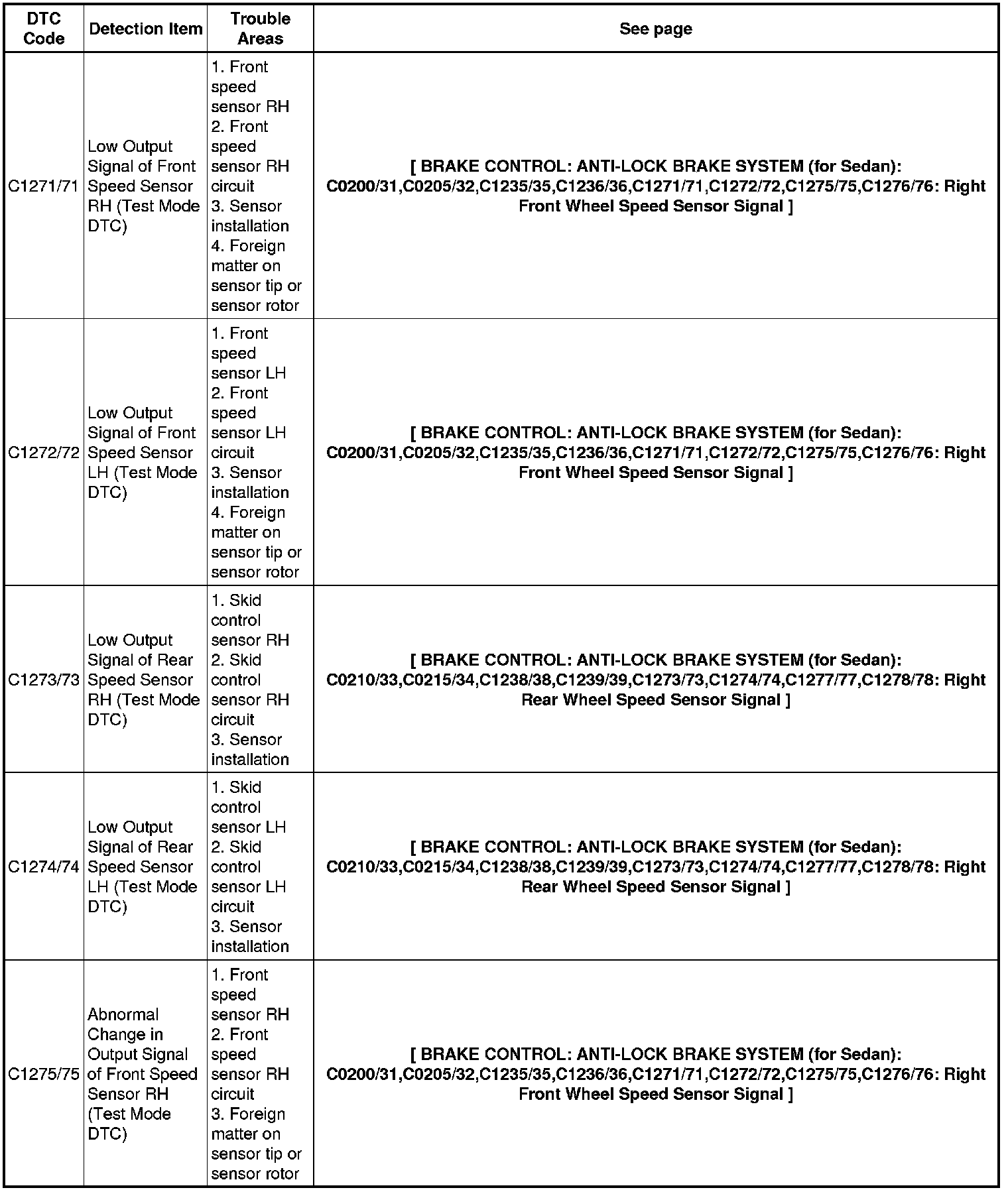

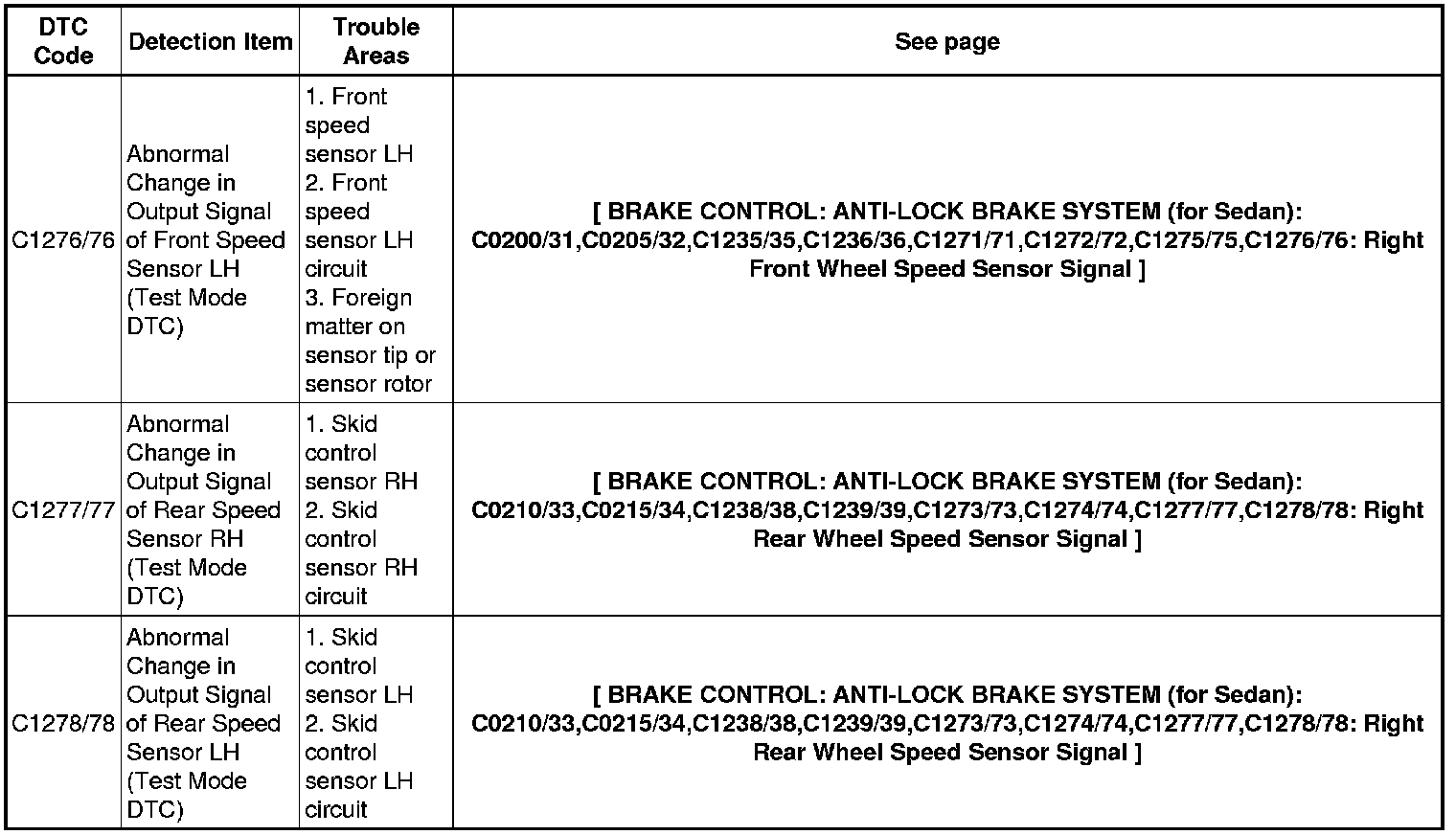

Test Mode DTC:
