ABS (Antilock Brake System) (for Hatchback)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Hatchback): DIAGNOSTIC TROUBLE CODE CHART

NOTICE:
Turn the ignition switch off before removing parts.

HINT
* If no abnormality is found when inspecting parts, inspect the skid control ECU and ground points for poor contact.
* If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, for the respective "DTC Code" in the DTC chart.
* When 2 or more DTCs are detected, perform circuit inspection one by one until the problem is identified.
* Inspect the fuse and relay before investigating the trouble areas as shown in the table below.

DTC Chart of ABS

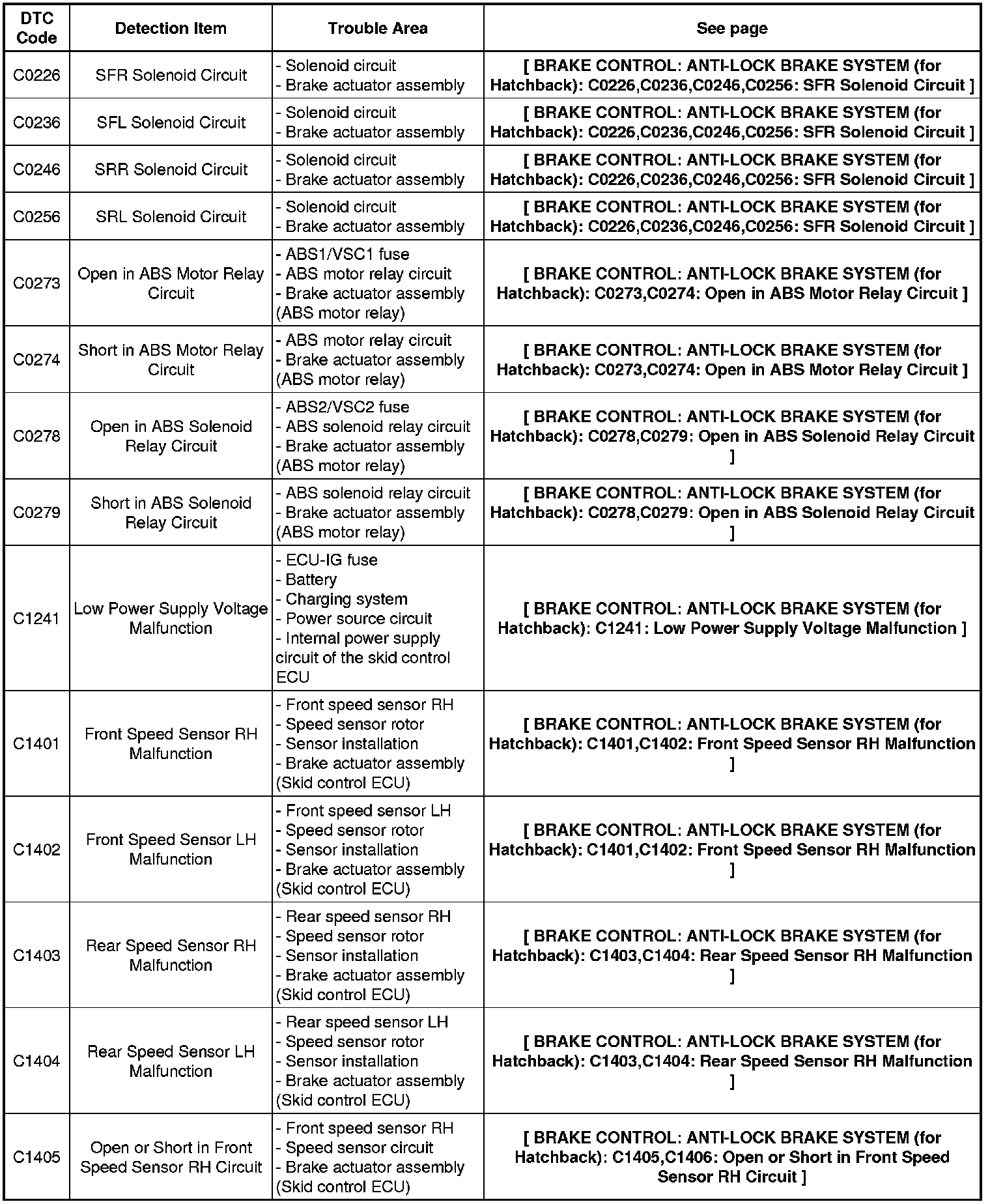

C0226-C1405:

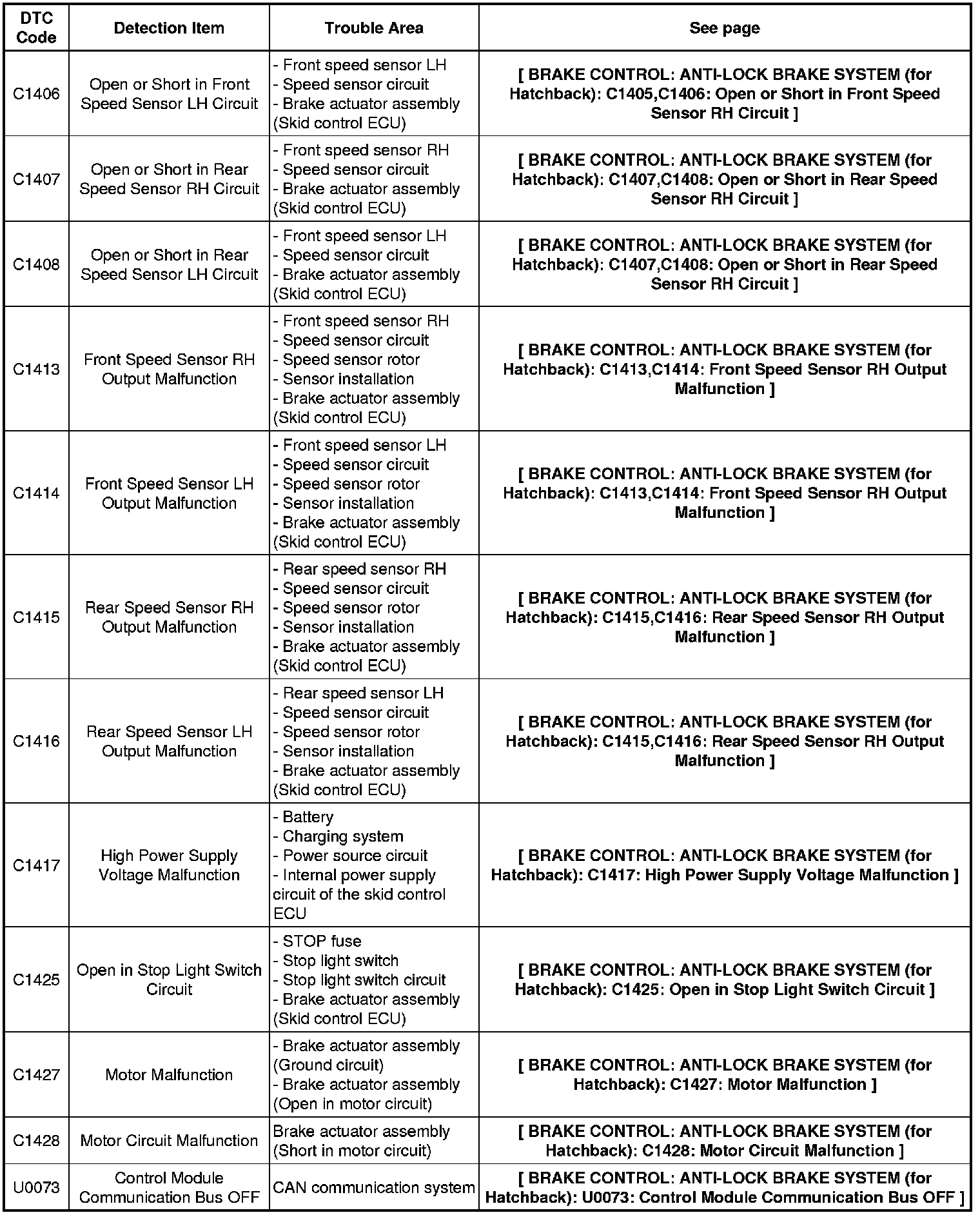

C1406-C1428 / U0073:

*: Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed:

* Drive the vehicle at 20 km/h (12 mph) for 30 seconds or more and check that the ABS warning light goes off.

* Clear the DTC.

HINT
In some cases, the Techstream cannot be used when the ABS warning light remains on.
