BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1427: Motor Malfunction
C1427 - Motor Malfunction

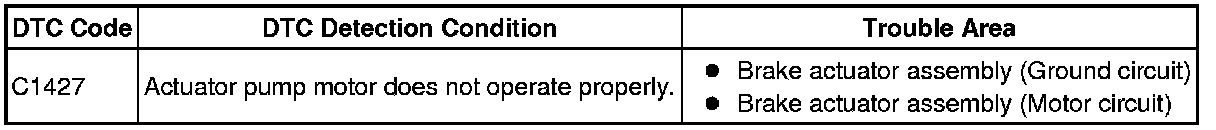

DESCRIPTION
WIRING DIAGRAM
Refer to DTCs C0273, C0274 and C1361 C0273.
INSPECTION PROCEDURE
NOTICE:
* When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.
PROCEDURE
1. PERFORM ACTIVE TEST USING TECHSTREAM (ABS MOTOR RELAY)
(a) Connect the Techstream to the DLC3.
(b) Start the engine.
(c) Enter the following menus: Chassis / ABS/VSC/TRAC / Active Test.
ABS/VSC/TRAC (Skid Control ECU)
ABS/VSC/TRAC (Skid Control ECU):
(d) Check for operating sound of the ABS motor relay when operating it with the Techstream.

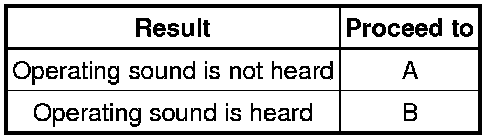

Result
Result:
B -- RECONFIRM DTC
A -- Continue to next step.
2. INSPECT SKID CONTROL ECU (GND2 TERMINAL)
(a) Turn the ignition switch off.
(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.
(c) Disconnect the A30 skid control ECU connector.
Text in Illustration
Text in Illustration:
(d) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (GND2 CIRCUIT)
OK -- Continue to next step.
3. RECONFIRM DTC
HINT
This code is detected when a problem is identified in the brake actuator assembly.
The ABS motor relay is in the brake actuator assembly.
Therefore, ABS motor relay unit inspection cannot be performed. Be sure to check if the DTC is output before replacing the brake actuator assembly.
(a) Turn the ignition switch off.
(b) Reconnect the skid control ECU connector.
(c) Clear the DTCs Vehicle Stability Control System.
(d) Start the engine.
(e) Drive the vehicle at a speed of 20 km/h (12 mph) or more for 30 seconds or more.
(f) Check if the same DTC is recorded Vehicle Stability Control System.

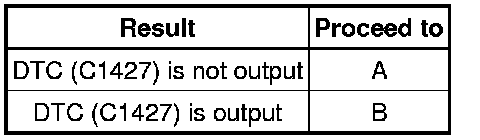

Result
Result:
HINT
* If a speed signal of 6 km/h (4 mph) or more is input to the skid control ECU with the ignition switch ON and the stop light switch off, the ECU performs self diagnosis of the motor and solenoid circuits.
* If the normal system code is output (no trouble codes are output), slightly jiggle the connectors, wire harness, and fuses of the brake actuator assembly. Make sure that no DTCs are output.
* If any DTCs are output while jiggling a connector or wire harness of the brake actuator assembly (skid control ECU), inspect and repair the connector or wire harness.
* The DTCs were probably output due to a bad connection of the connector terminal.
B -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
A -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) Check for Intermittent Problems
