Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1425: Open in Stop Light Switch Circuit
C1425 - Open in Stop Light Switch Circuit

DESCRIPTION

The skid control ECU detects the brake operating conditions through a signal transmitted by the stop light switch.

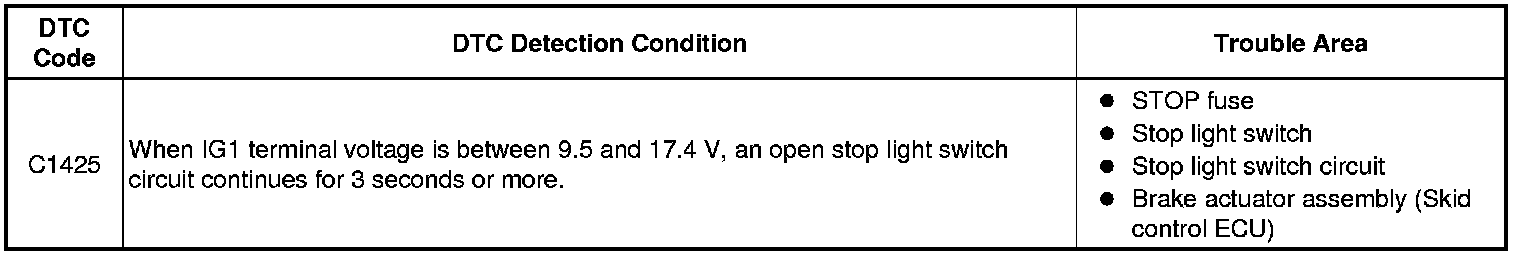

The skid control ECU has an open detection circuit, which outputs this DTC when detecting an open in the stop light input line or the ground line of the stop light circuit with the stop light switch off (brake pedal not depressed).

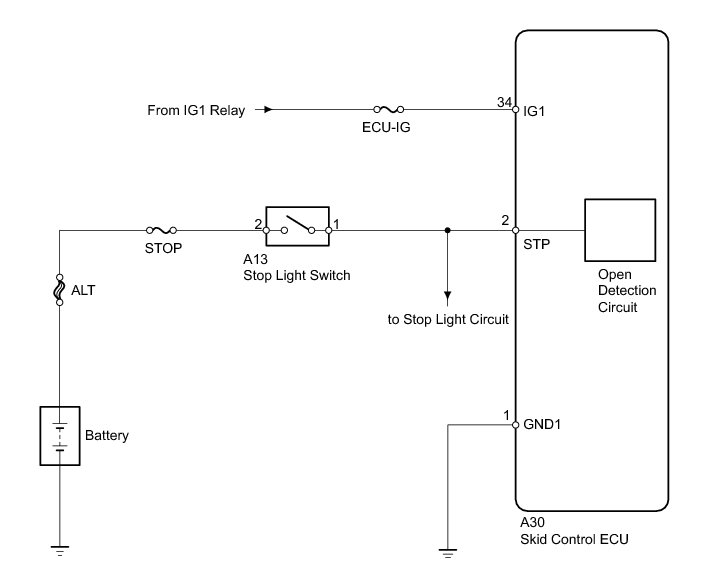

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.
PROCEDURE

1. READ VALUE USING TECHSTREAM (STOP LIGHT SWITCH)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.

ABS/VSC/TRAC (Skid Control ECU)

ABS/VSC/TRAC (Skid Control ECU):

(d) Check that the stop light switch display observed on the Techstream changes according to brake pedal operation.

OK:

The Techstream displays ON or OFF according to brake pedal operation.

NG -- INSPECT STOP LIGHT SWITCH (POWER SOURCE TERMINAL)
OK -- Continue to next step.

2. RECONFIRM DTC

(a) Turn the ignition switch off.

(b) Clear the DTCs Vehicle Stability Control System.

(c) Start the engine.

(d) Depress the brake pedal several times to test the stop light circuit.

(e) Check if the same DTC is recorded Vehicle Stability Control System.

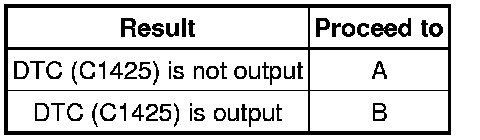

Result

Result:

HINT
If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

B -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

A -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) Check for Intermittent Problems

3. INSPECT STOP LIGHT SWITCH (POWER SOURCE TERMINAL)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.





Text in Illustration

Text in Illustration:

(b) Disconnect the A13 stop light switch connector.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
OK -- Continue to next step.

4. INSPECT STOP LIGHT SWITCH

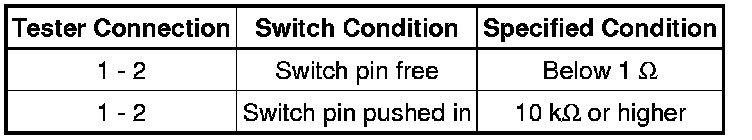

(a) Measure the resistance according to the value(s) in the table below.





Text in Illustration

Text in Illustration:

Standard Resistance:

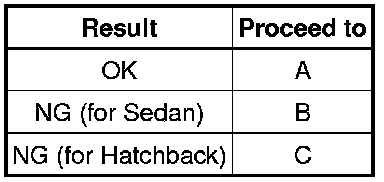

Result

Result:

C -- REPLACE STOP LIGHT SWITCH

B -- REPLACE STOP LIGHT SWITCH
A -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (STP TERMINAL)

(a) Turn the ignition switch off.





Text in Illustration

Text in Illustration:

(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

(c) Disconnect the skid control ECU connector.

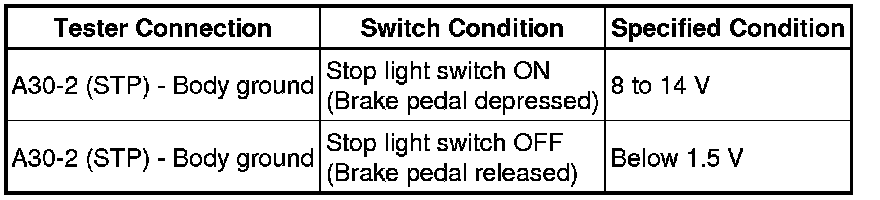

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
