U660E AUTOMATIC TRANSMISSION / TRANSAXLE: TRANSMISSION CONTROL CABLE: REMOVAL

1. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT

Removal

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal

3. REMOVE INLET NO. 2 AIR CLEANER Removal

4. REMOVE AIR CLEANER CAP WITH HOSE Removal

5. REMOVE AIR CLEANER CASE Removal

6. REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY Removal

7. SEPARATE MANIFOLD STAY Removal

8. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Removal

9. REMOVE EXHAUST MANIFOLD TO HEAD GASKET Removal

10. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

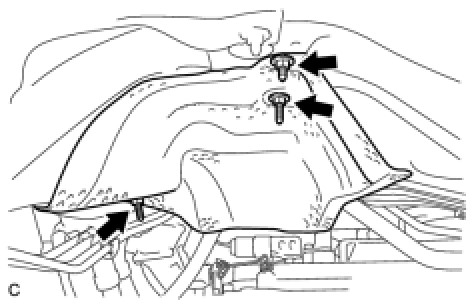

(a) Remove the 3 nuts and front No. 1 floor heat insulator.





11. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Remove the clip and disconnect the transmission control cable assembly from the No. 1 control cable bracket.

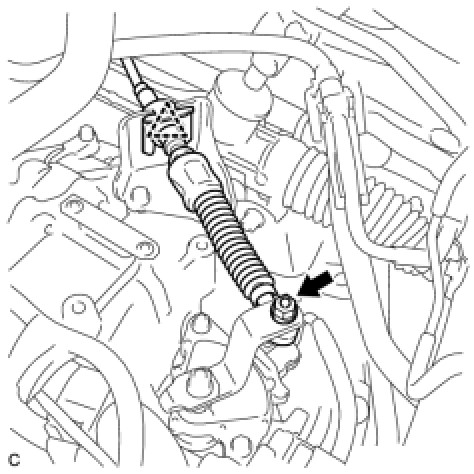

(b) Remove the nut and transmission control cable assembly from the control shaft lever.

(c) Disconnect the transmission control cable assembly from the No. 2 transmission control cable bracket.

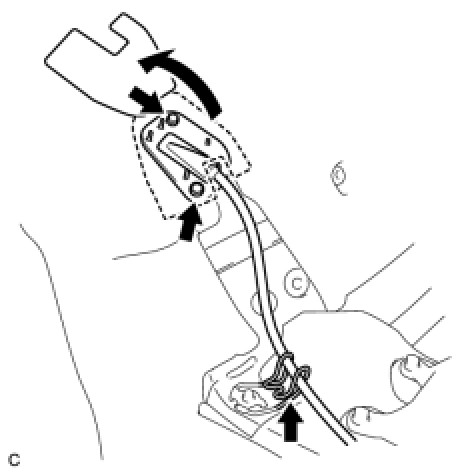

(d) Turn back the carpet.

(e) Remove the 2 bolts and pull out the transmission control cable assembly from the body.
