Ignition Switch

2GR-FE STARTING: IGNITION SWITCH: INSPECTION

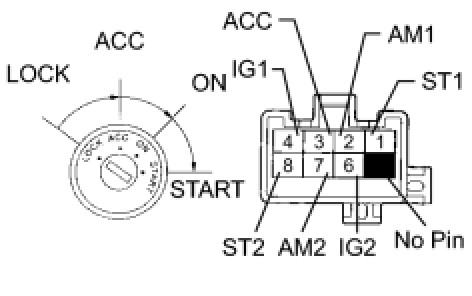

1. INSPECT IGNITION SWITCH

(a) Measure the switch resistance.

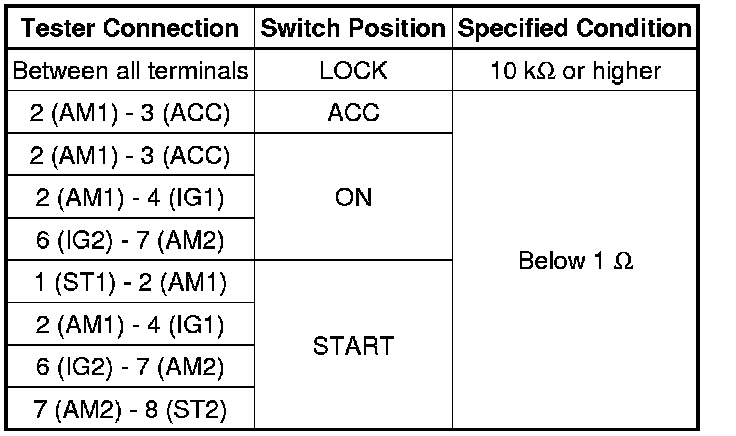

Standard Resistance:





(b) If the result is not as specified, replace the switch assembly.
