Torque Specifications





SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: TORQUE SPECIFICATIONS

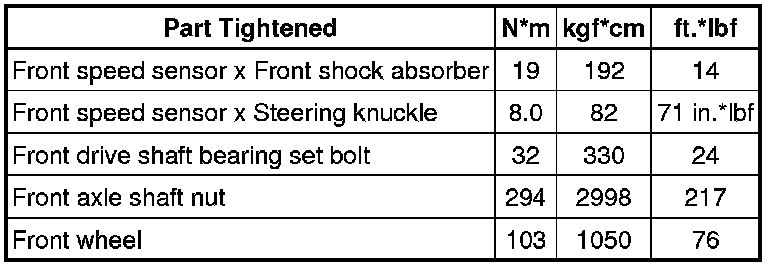

Front Drive Shaft:





Rear Drive Shaft:

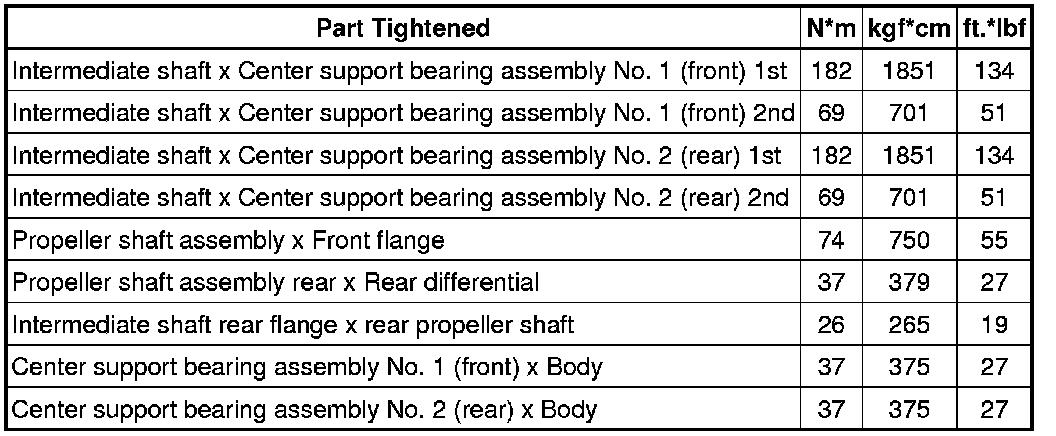

Propeller Shaft:
