Removal

1AR-FE EMISSION CONTROL: PURGE VALVE: REMOVAL

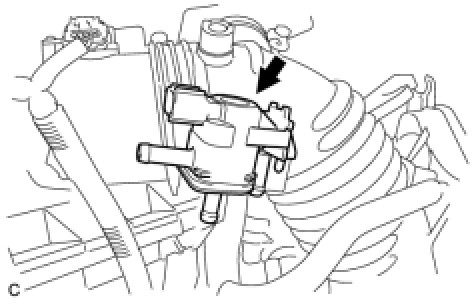

1. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY

(a) Disconnect the connector and 2 fuel vapor feed hoses.





(b) Remove the No. 1 vacuum switching valve assembly.
