Venza FWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>

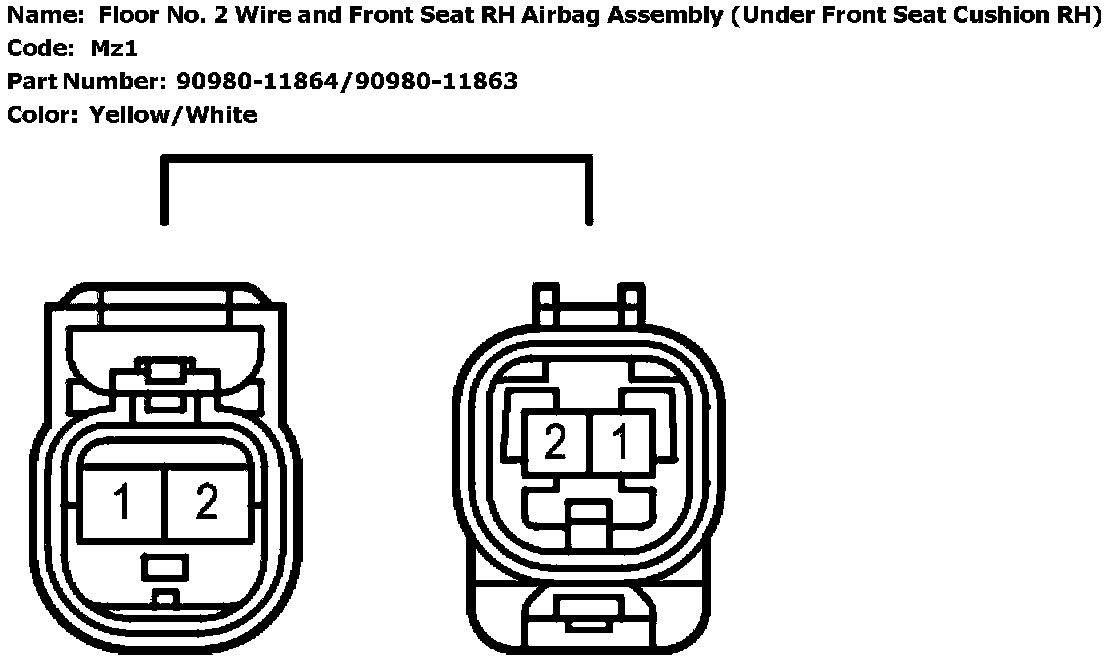

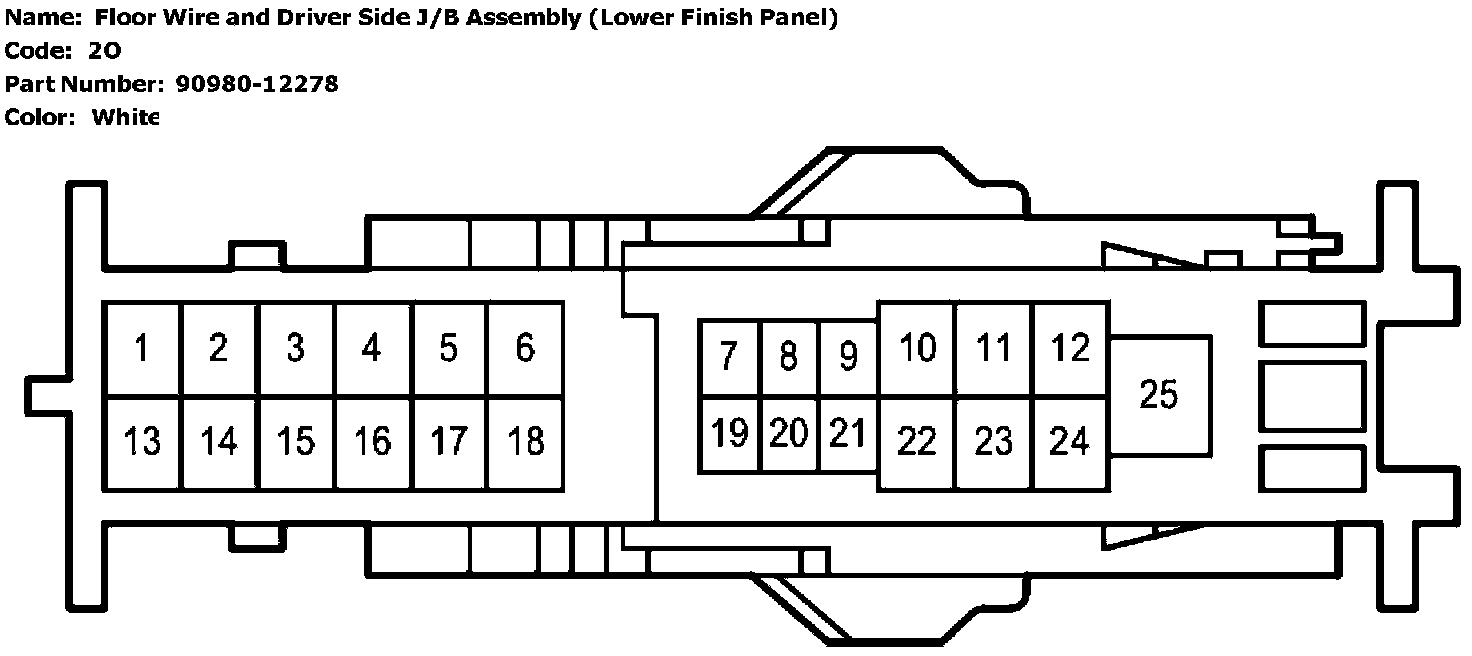

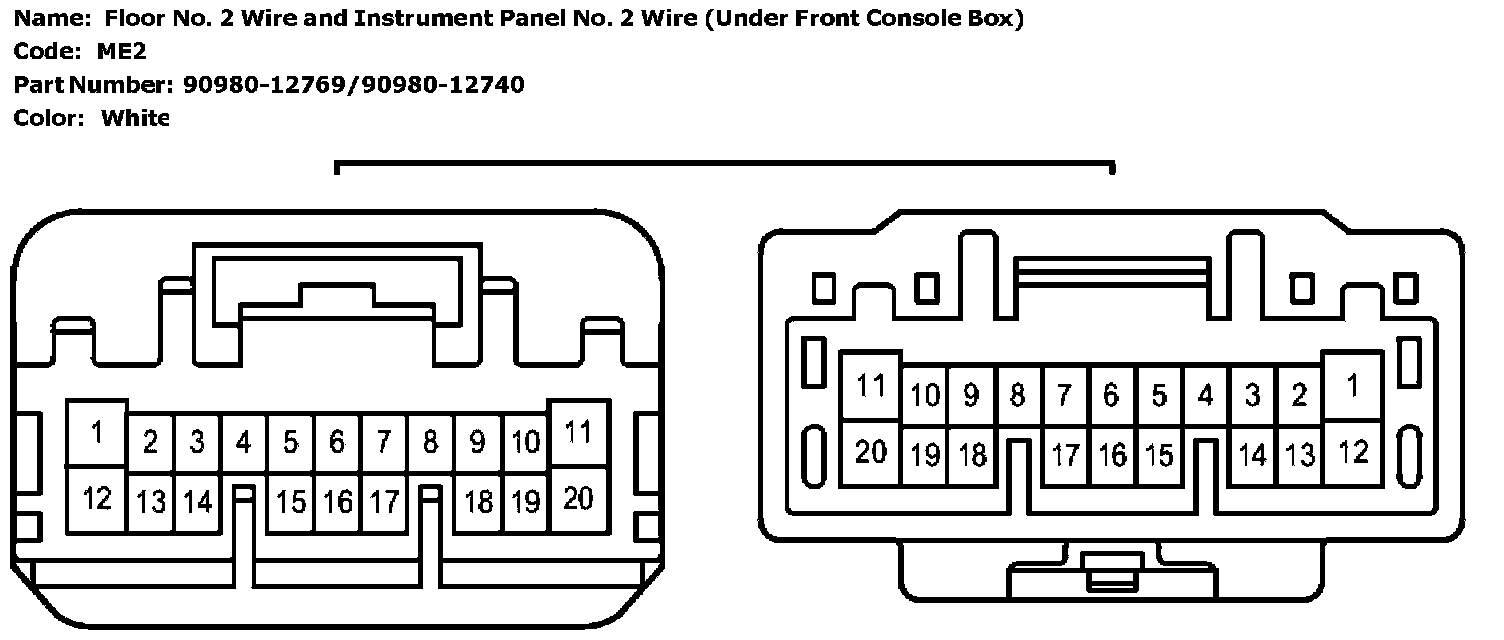

Connector Views
>>
Floor Wire
Floor Wire
Yellow/White:
