Home
>>
Toyota
>>
2010
>>
Venza FWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector Views
>>
Back Door Wire
Back Door Wire

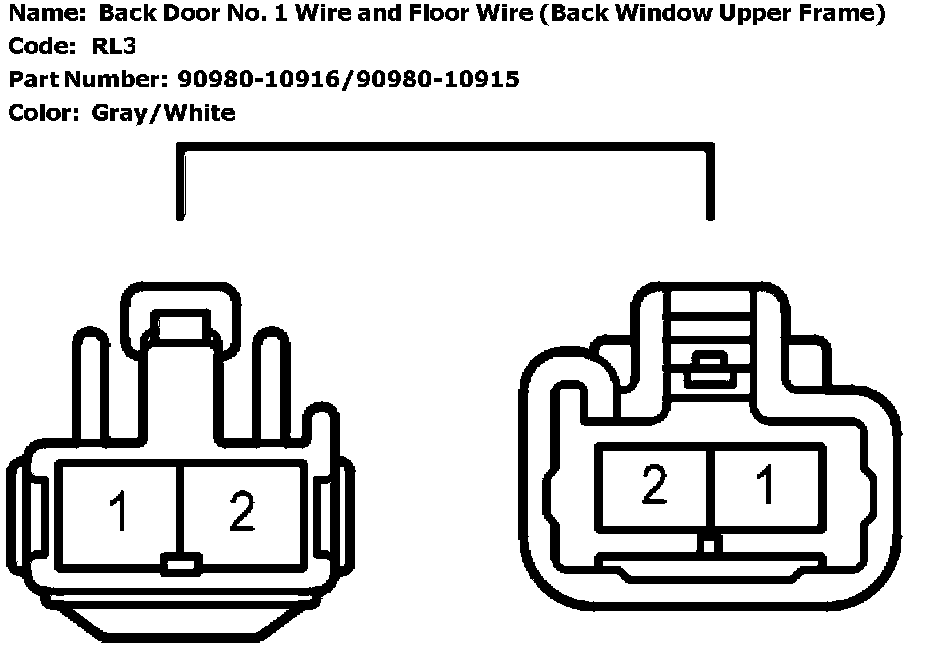

Gray/White:
