Multiple Junction Connector
>>

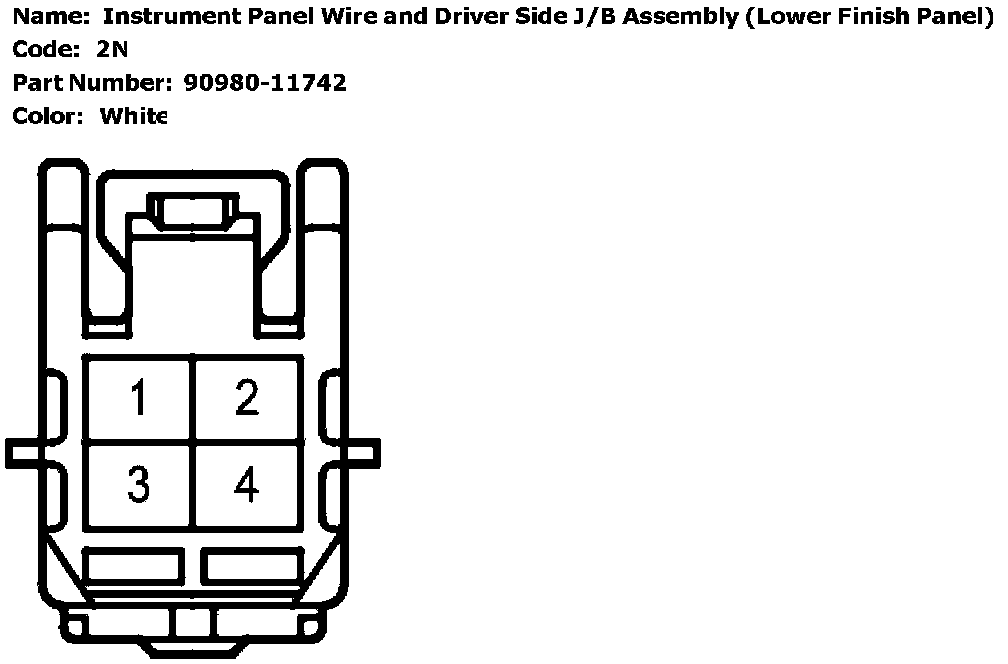

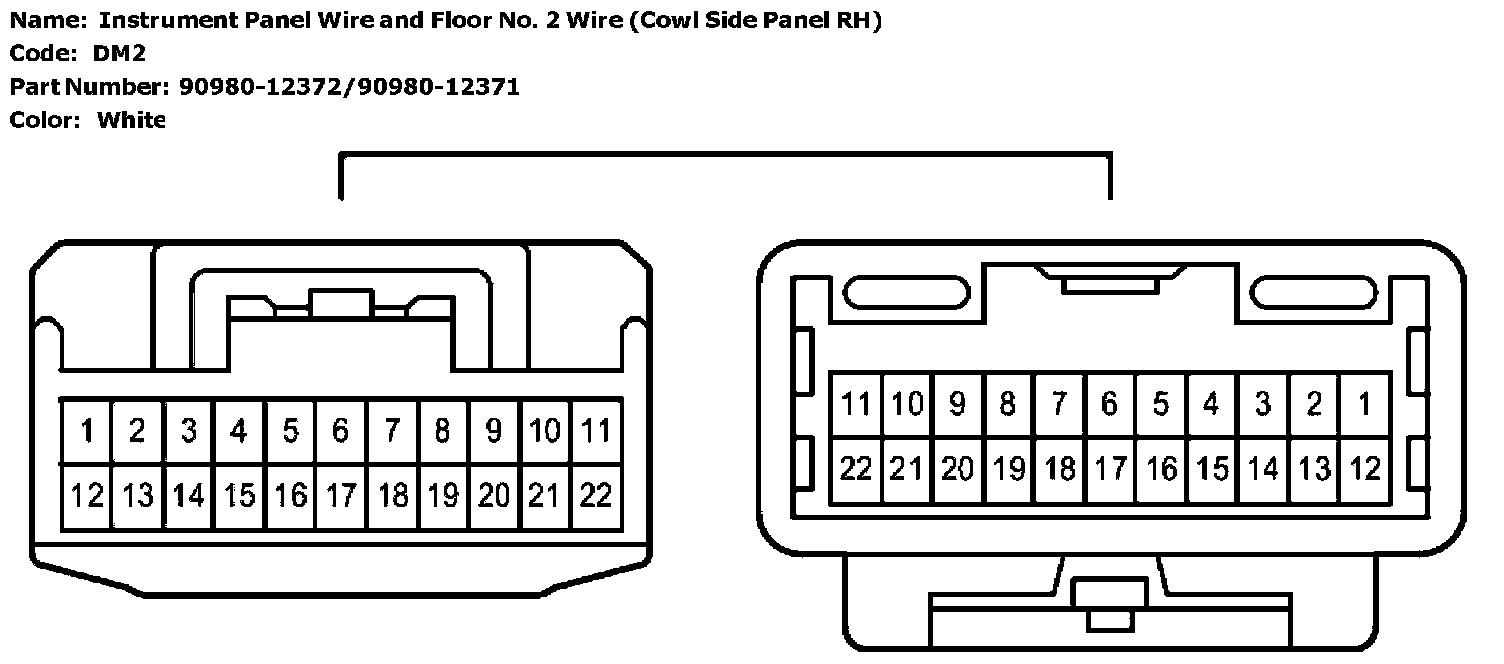

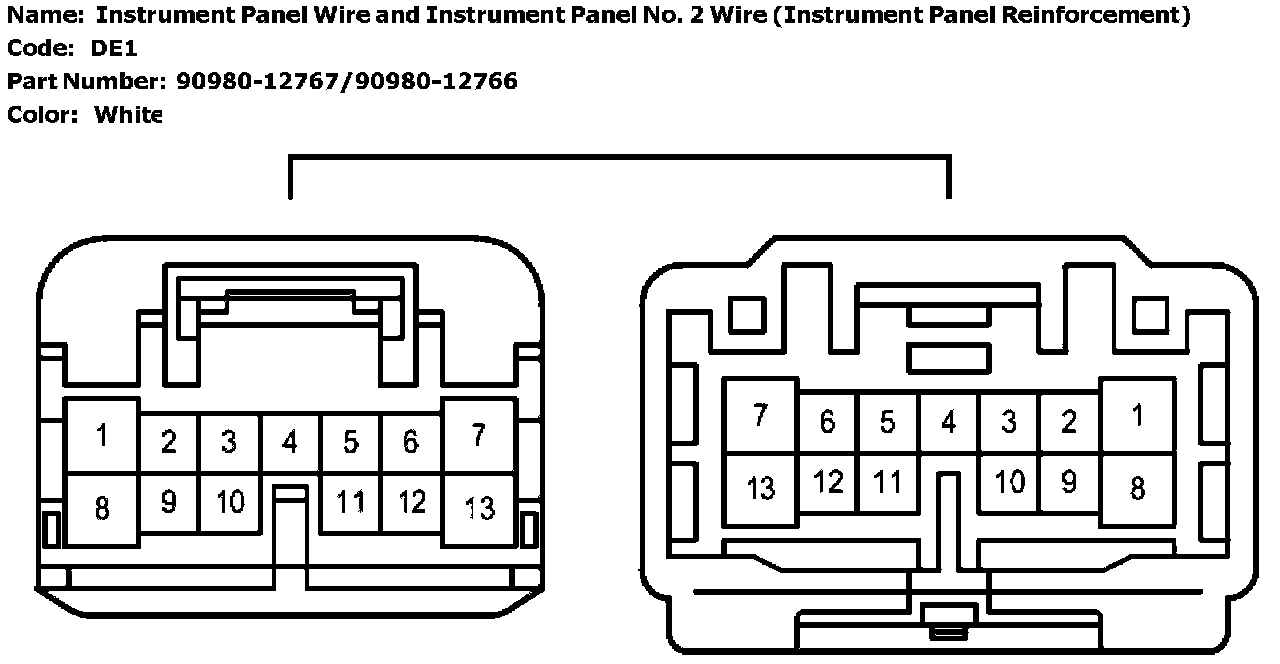

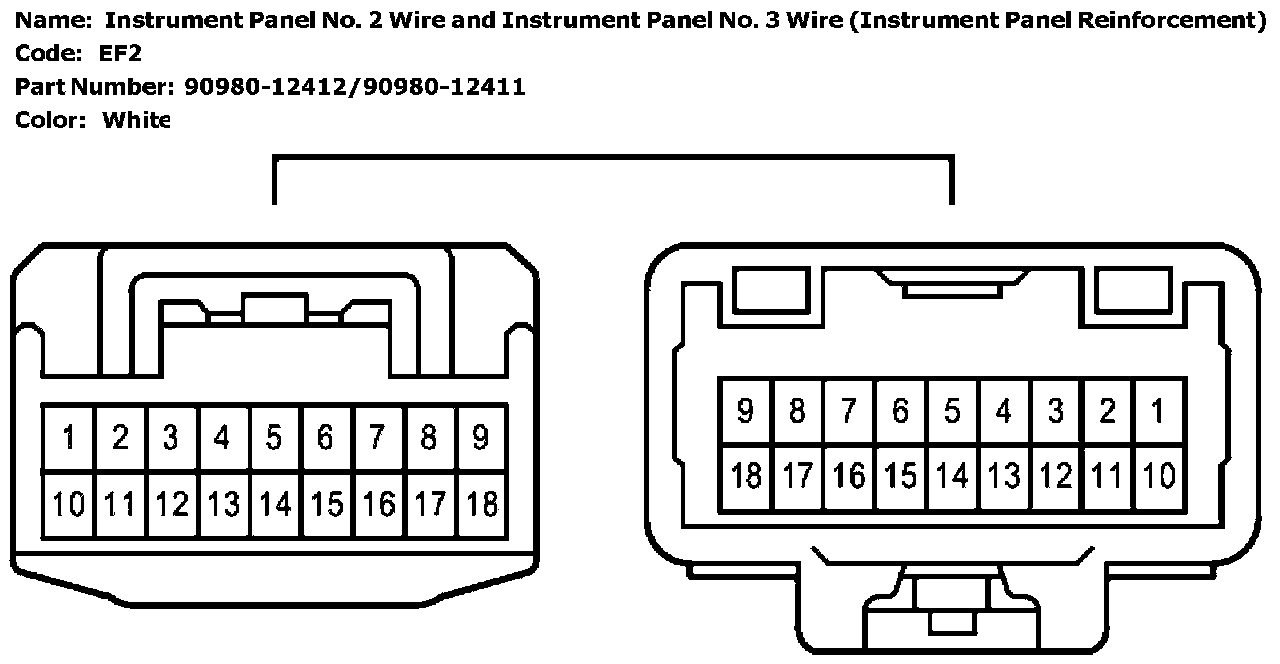

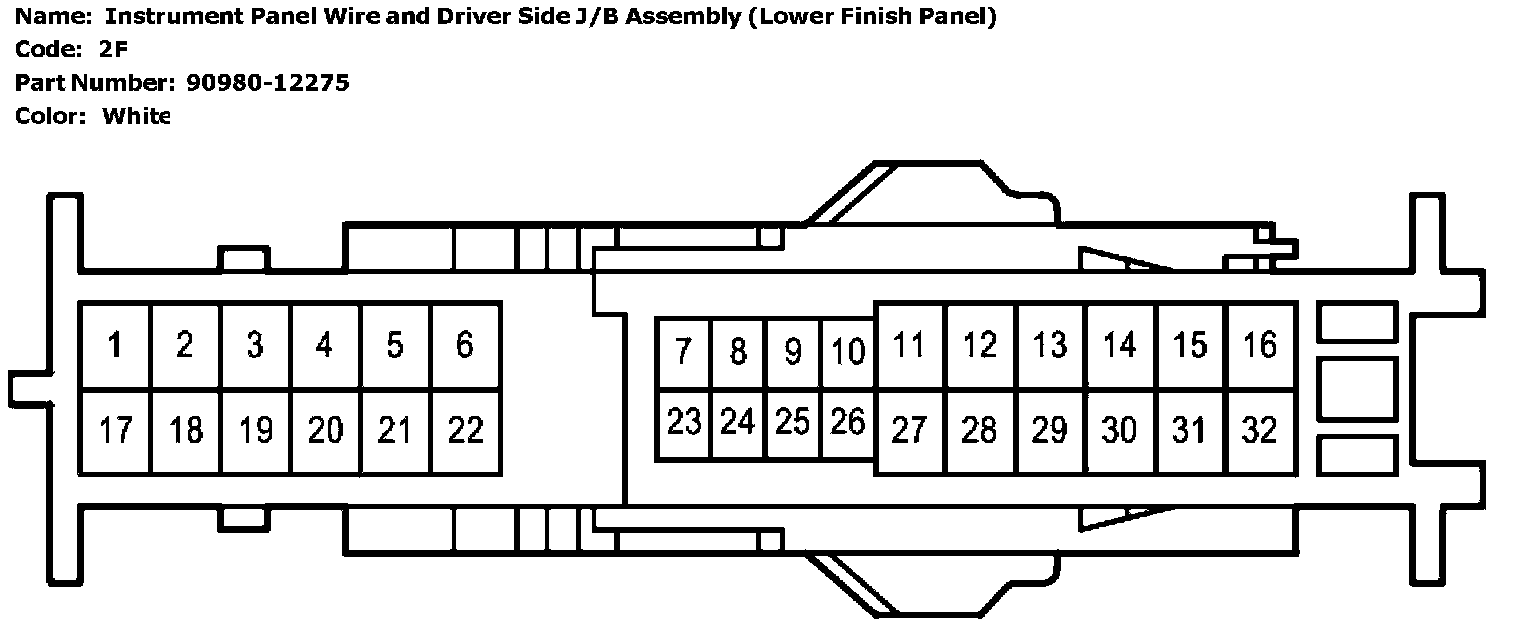

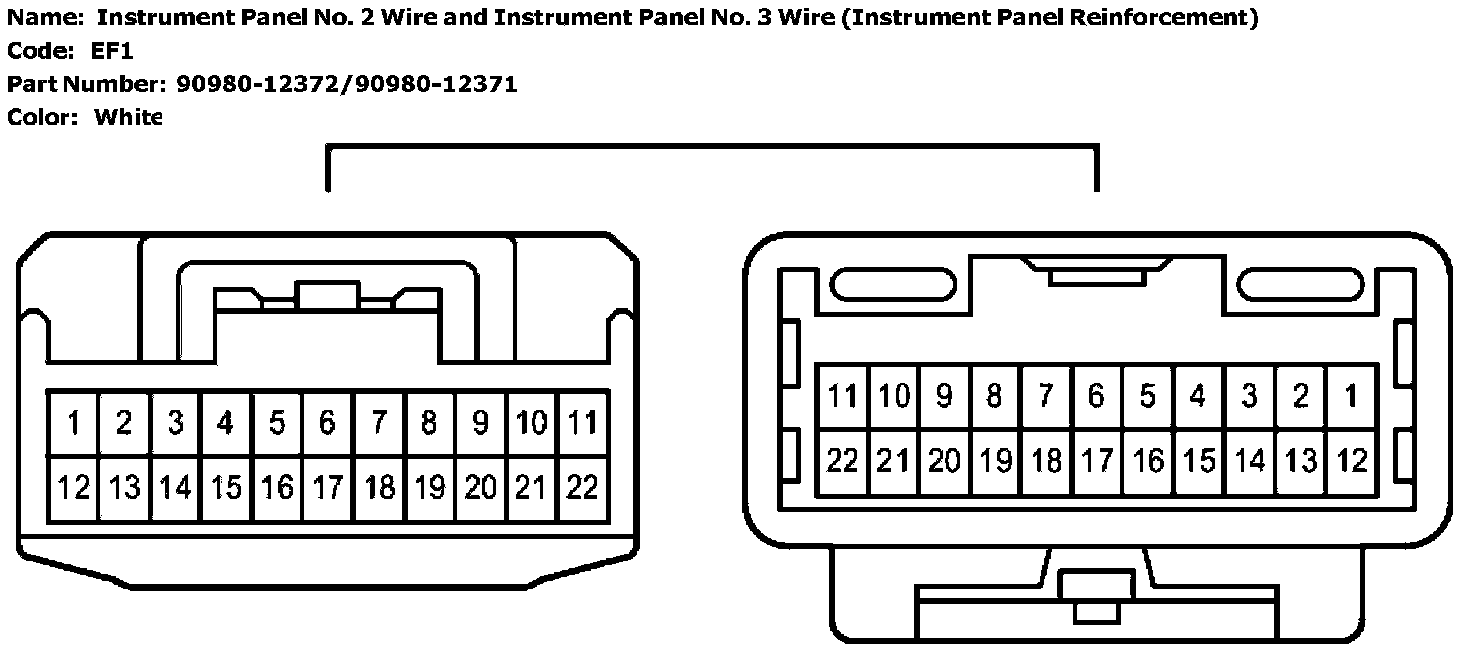

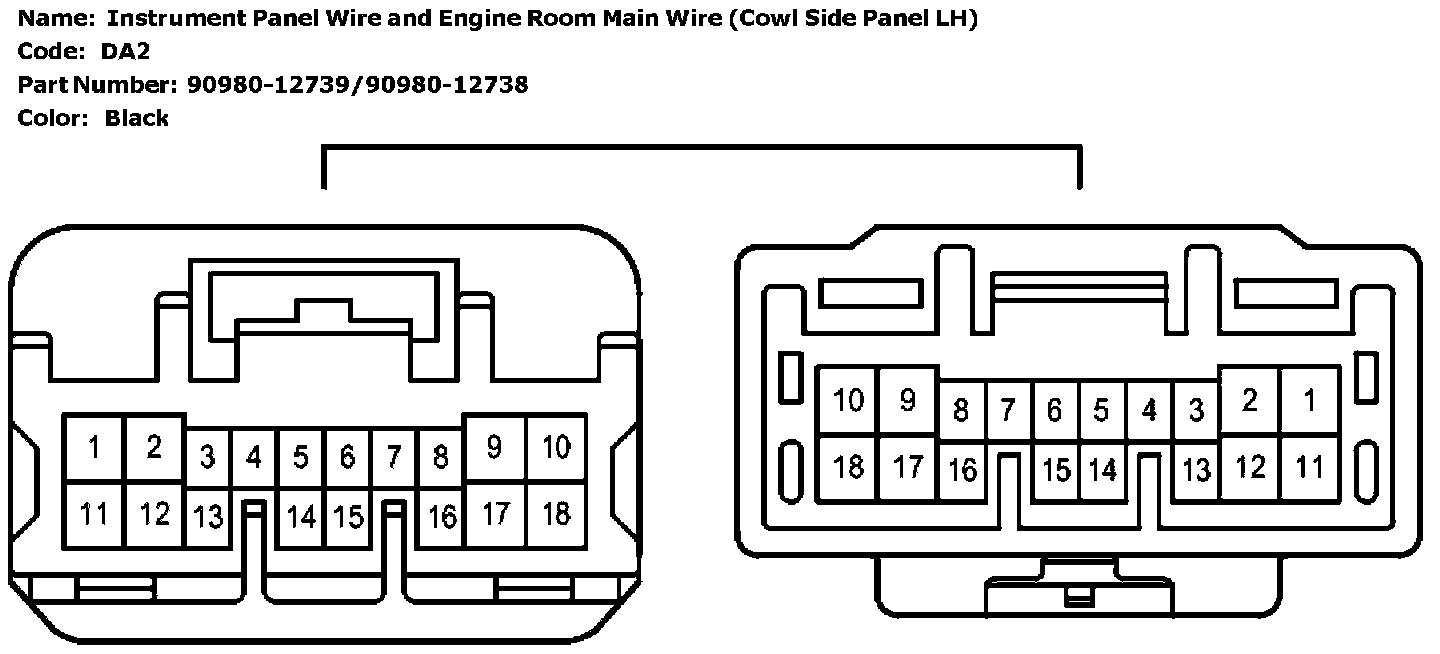

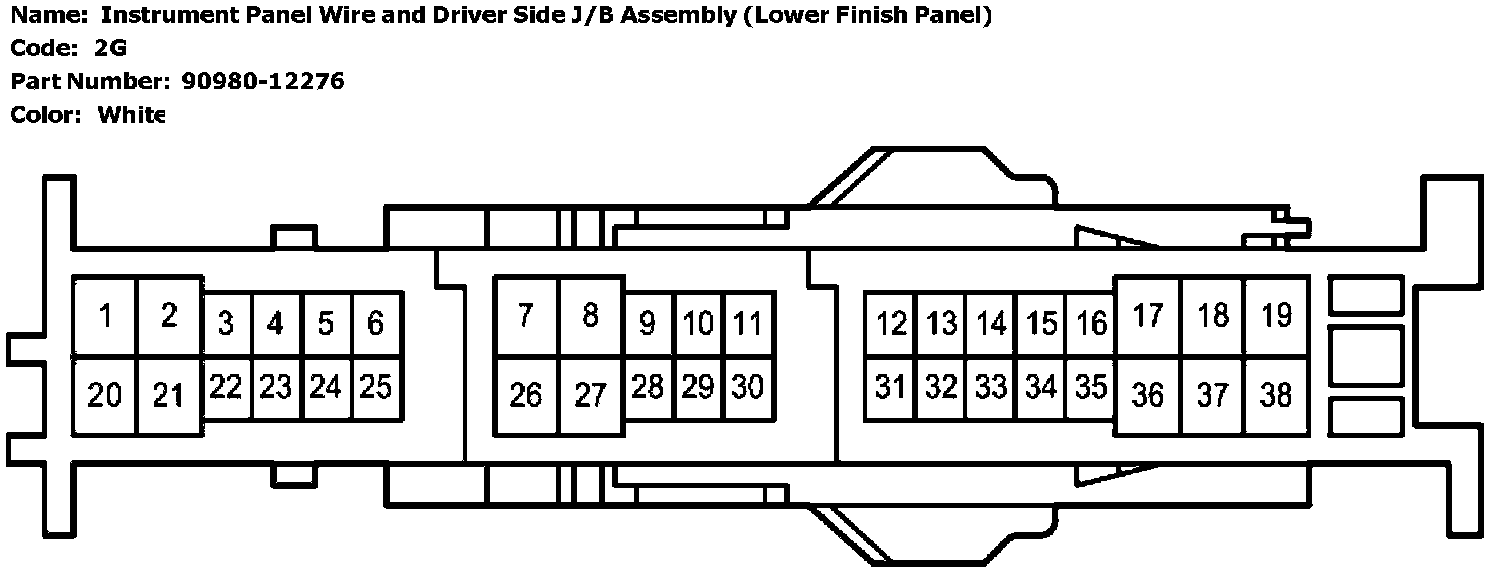

Instrument Panel Wire
Instrument Panel Wire

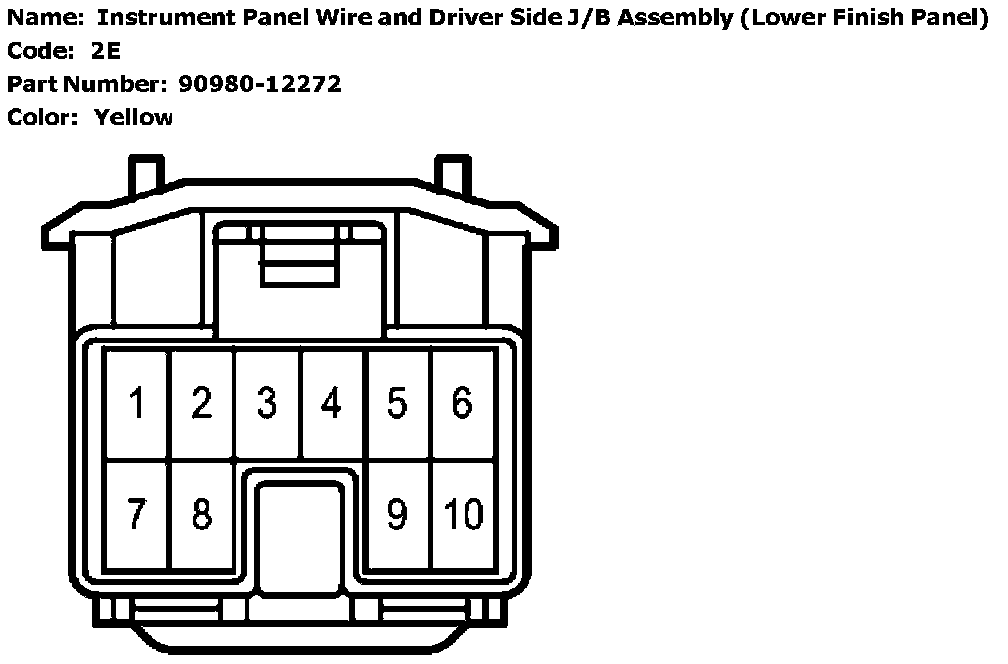

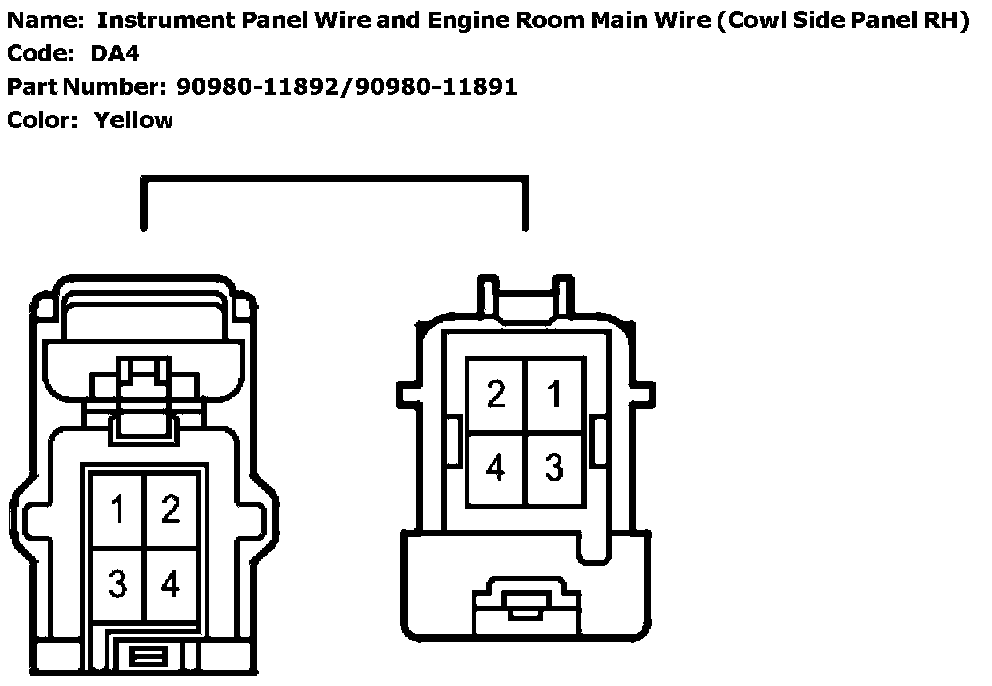

Yellow:

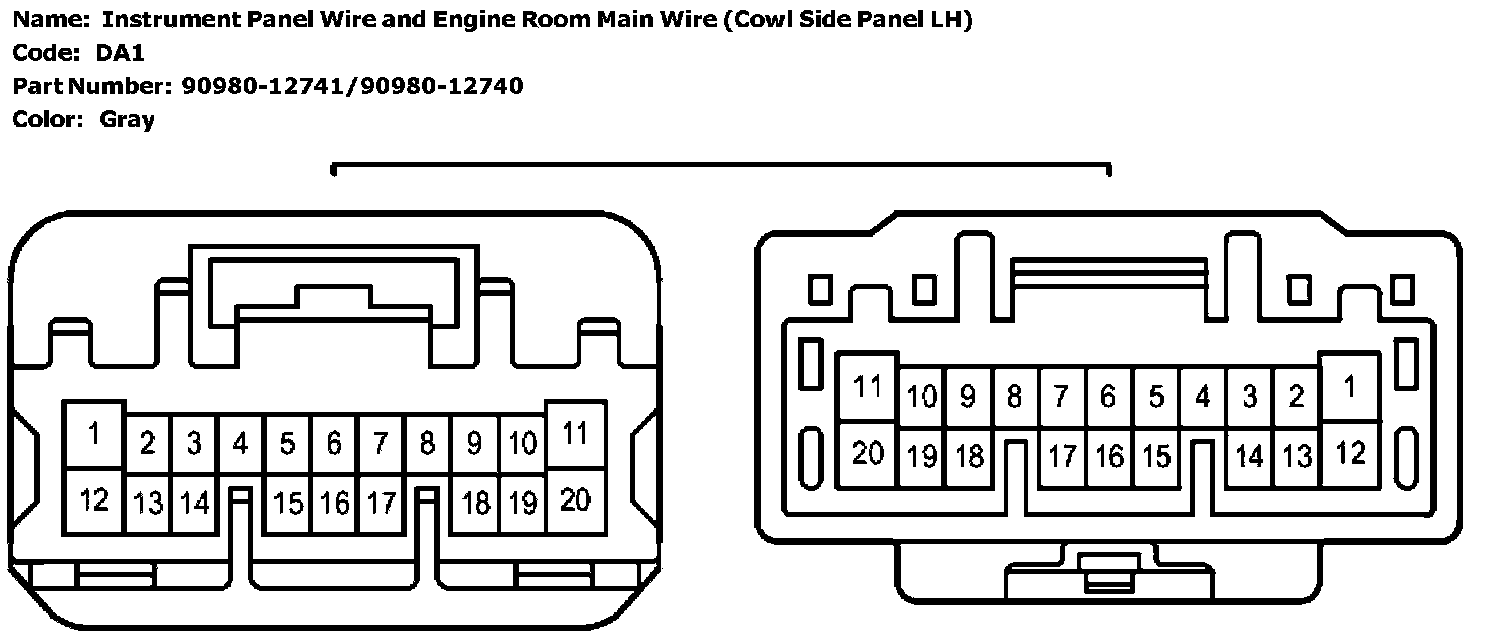

Gray:
Black:
Yellow:
