Toyota
>>
2010
>>
Venza FWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
CRUISE CONTROL

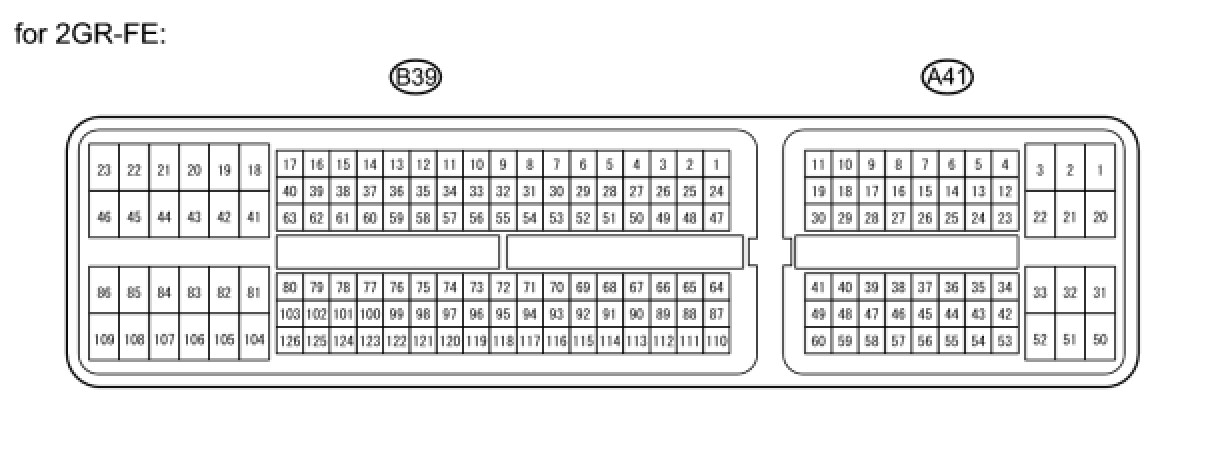

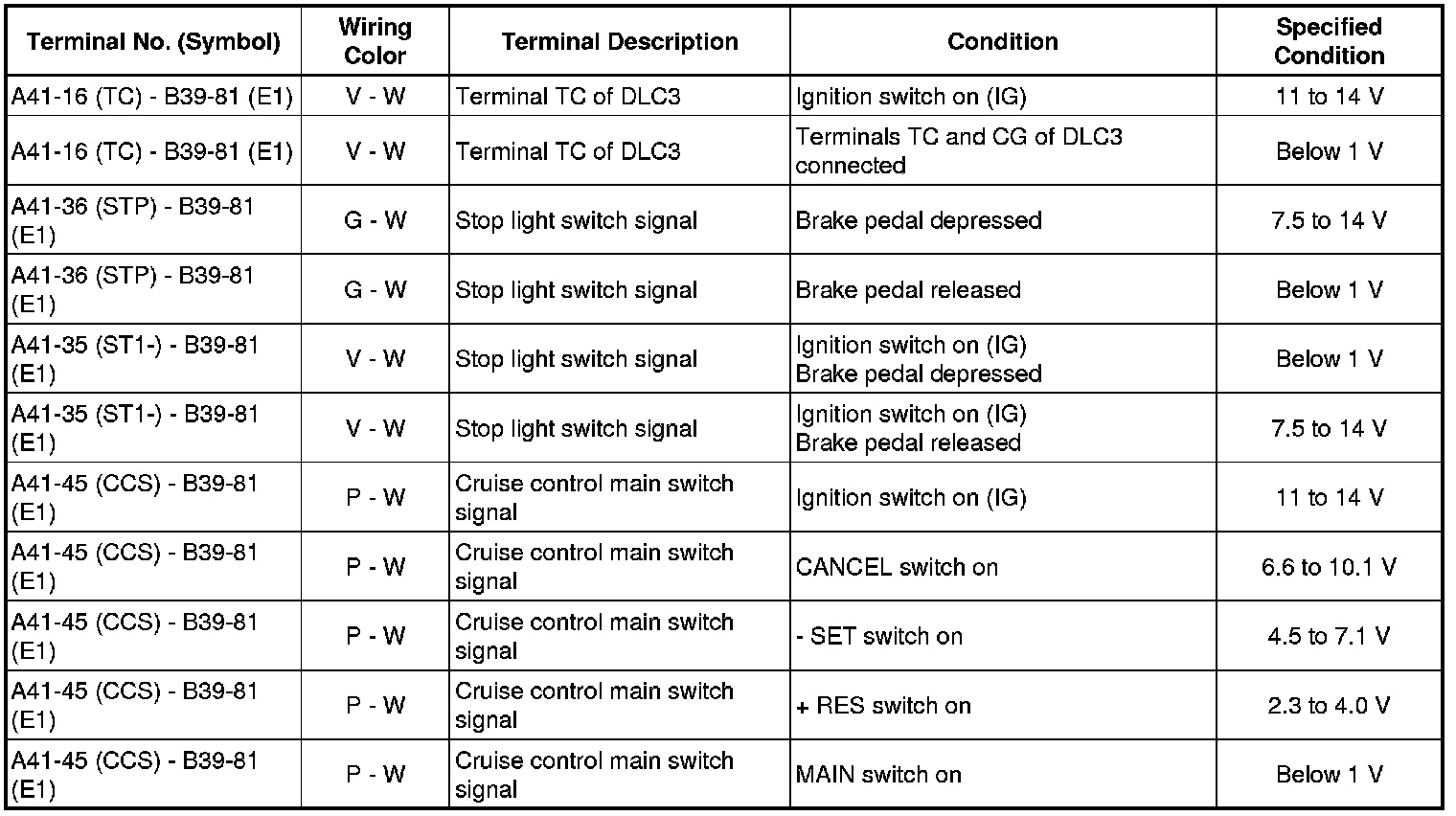

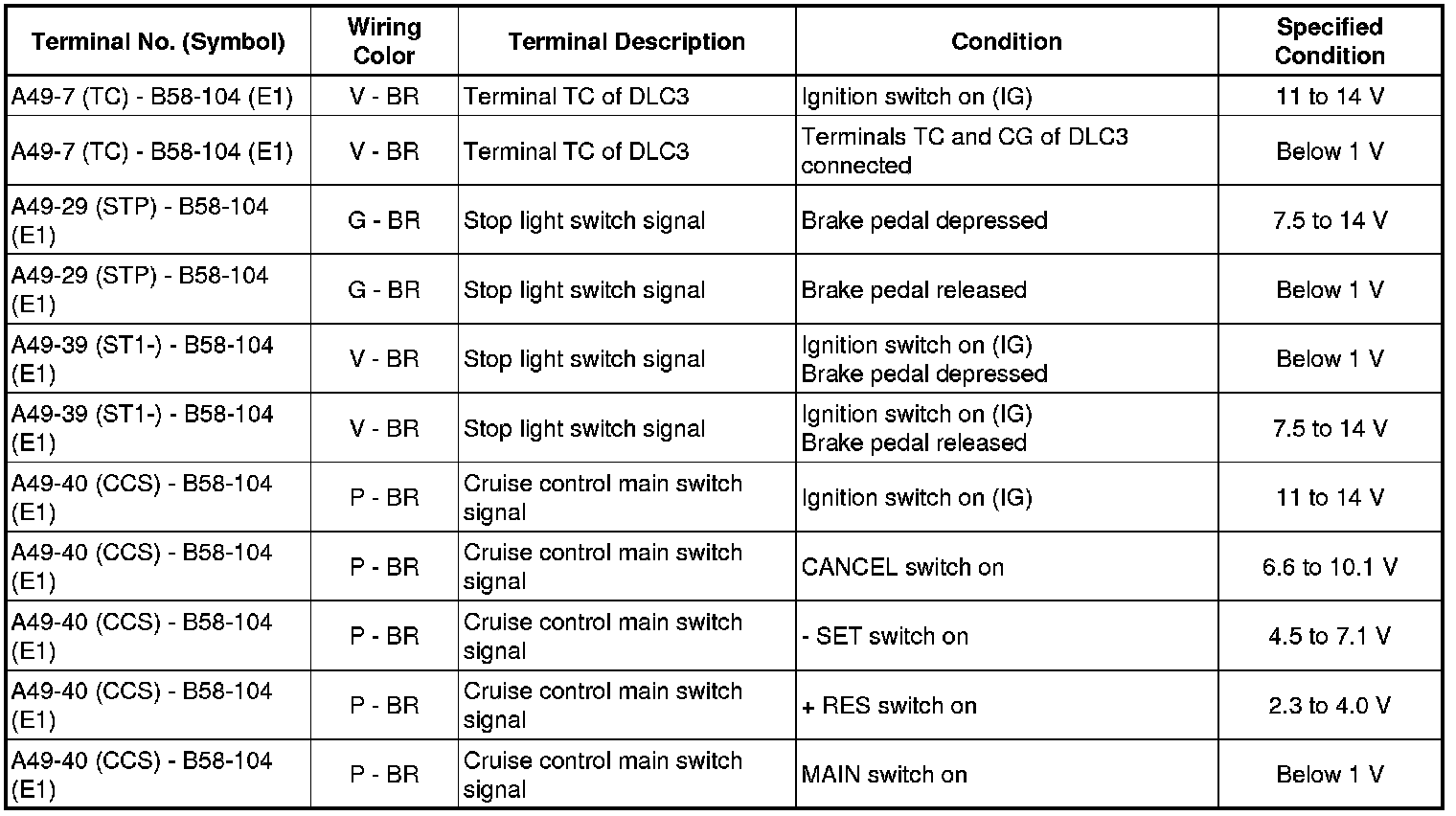

: CRUISE CONTROL SYSTEM: TERMINALS OF ECM
1.
CHECK ECM
