Electrical Specifications
SPECIFICATIONS: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: SERVICE DATA

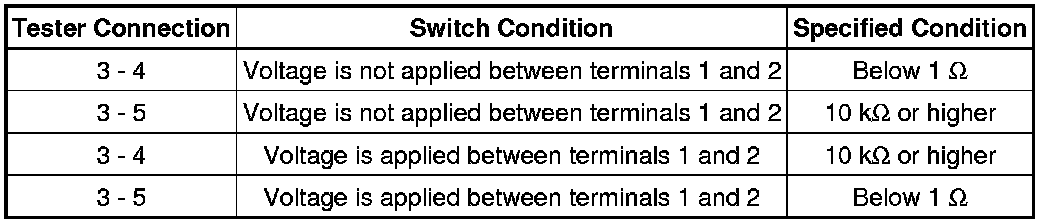

Stop Light Control (BRK) Relay:

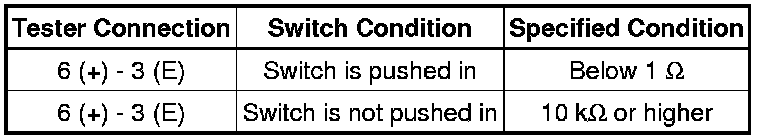

VSC OFF Switch:

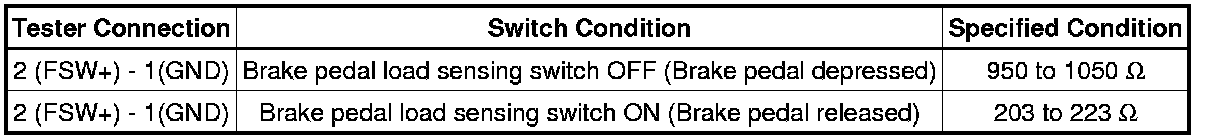

Brake Pedal Load Sensing Switch:
