Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.
HINT
The following items can be customized.

1. POWER DOOR LOCK CONTROL SYSTEM





* *: for Korea





2. WIRELESS DOOR LOCK CONTROL SYSTEM





* *1: except for Korea

* *2: for Korea





3. SMART KEY SYSTEM (for Entry Function)





* *1: Weak radio waves will still be emitted from oscillators other than the front oscillator even when the "Front" customize setting is selected.

* *2: w/ Entry System Back Door Open Function





4. ENTRY UNLOCK MODE SWITCHING* (SMART KEY SYSTEM (for Entry Function))

*: except for Korea and Mexico

(a) To change the vehicle entry unlock mode, make sure that the vehicle power is off and simultaneously push and hold the lock switch and another switch on the key for 5 seconds.

Driver door unlock default setting:

When the switches are pressed and held for 5 seconds, the entry door unlock mode changes to the mode that is not currently selected.

NOTICE:
After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

* Driver door unlock mode:

* When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.*

* *: w/ Entry System Back Door Open Function

* All door unlock mode:

* When any touch sensor is touched, all doors unlock.

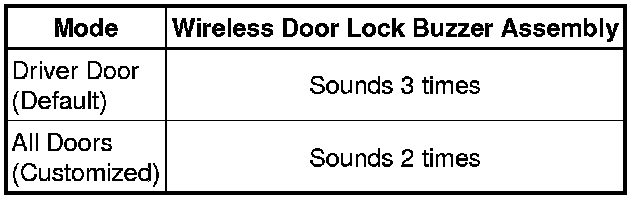

(b) The certification ECU (smart key ECU assembly) receives this signal from the door control receiver assembly and changes the smart key system to entry unlock mode.

(c) The certification ECU (smart key ECU assembly) sounds the buzzers of the wireless door lock buzzer assembly.





HINT
The procedure only changes entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

5. ELECTRICAL KEY CANCEL (SMART KEY SYSTEM (for Entry Function))

The electrical key cancel operation disables the following functions:

* Entry Unlock/Lock

* Entry Hybrid Vehicle Control System Start

* Entry System Back Door Open Function*

* *: w/ Entry System Back Door Open Function

* Electrical Key Lock-in Prevention

* Warning

(a) The operation procedure is as follows:

Precondition:

Power switch off, driver door closed and unlocked.

(1) Push the unlock switch of the key once.

(2) Open the driver door within 5 seconds.

(3) Push the unlock switch of the key twice within 5 seconds.

(4) Close and open the driver door twice within 30 seconds.

(Driver door: Close -> Open -> Close -> Open)

(5) Push the unlock switch of the key twice within 5 seconds.

(6) Close and open the driver door within 30 seconds.

(Driver door: Close -> Open)

(7) Close the driver door within 5 seconds.

When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

To return to the original condition, perform the procedure again. When the original condition is returned, the wireless door lock buzzer sounds once.

6. SMART KEY SYSTEM (for Start Function)





* *: Weak radio waves will still be emitted from oscillators other than the front oscillator even when the "Front" customize setting is selected.

7. CUSTOMIZING FUNCTION WITHOUT TECHSTREAM (SMART KEY SYSTEM (for Start Function))

Performing the following procedure disables the smart key system.

HINT
To start the hybrid control system while the smart key system is disabled, follow the procedure for when the key battery is low Smart Key System (for Start Function).

(a) The procedure to disable the smart key system is as follows:

HINT
Repeating the following steps switches the smart key system status between activated and disabled.

(b) Preconditions:

Power switch off, driver door closed and unlocked.

(1) Press the unlock switch of the key once.

(2) Open the driver door within 5 seconds after pressing the unlock switch of the key in the previous step.

(3) Repeat closing and opening of the driver door twice within 30 seconds after opening the driver door in the previous step.

(4) Press the unlock switch of the key twice within 30 seconds after the last closing of the driver door in the previous step.

(5) Close and then open the driver door within 30 seconds after pressing the unlock switch of the key twice in the previous step.

(6) Close the driver door within 5 seconds after opening the driver door in the previous step.

(7) Check that the wireless buzzer sounds once*1 or twice*2.

* *1: When the smart key system status is changed from activated to disabled.

* *2: When the smart key system status is changed from disabled to activated.

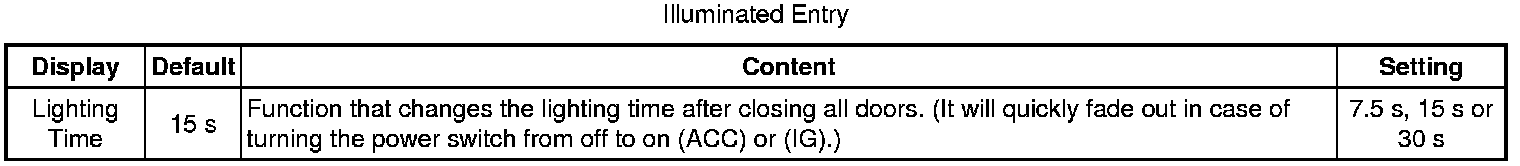

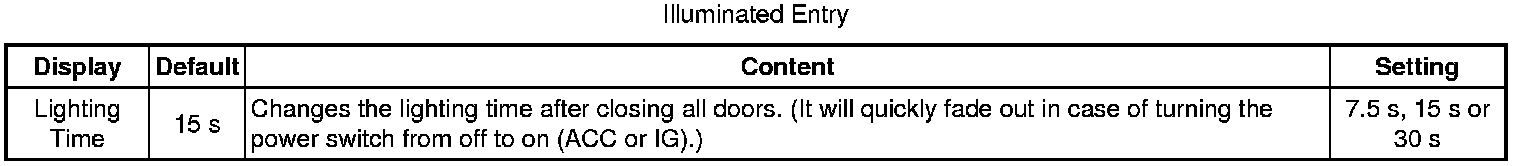

8. LIGHTING SYSTEM (LIGHTING INT)

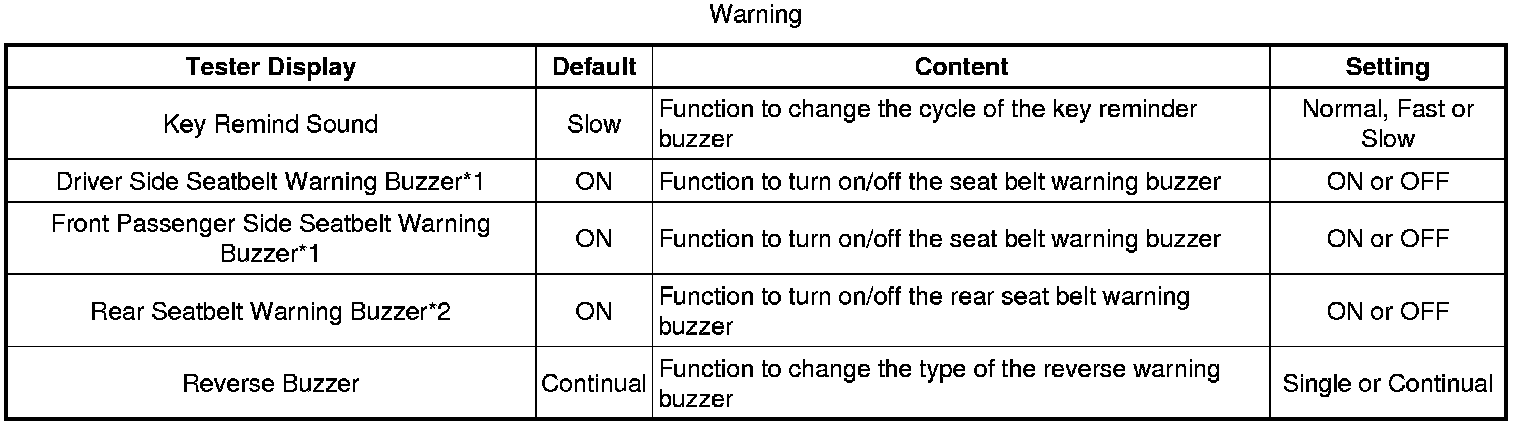

9. METER / GAUGE SYSTEM





* *1: This setting is only valid for the buzzer which sounds at 20 km/h (12 mph) or more.

* *2: w/ Rear Seat Belt Warning

10. SEAT BELT WARNING SYSTEM





HINT
This setting is only valid when the vehicle is driven at 20 km/h (12 mph) or more.

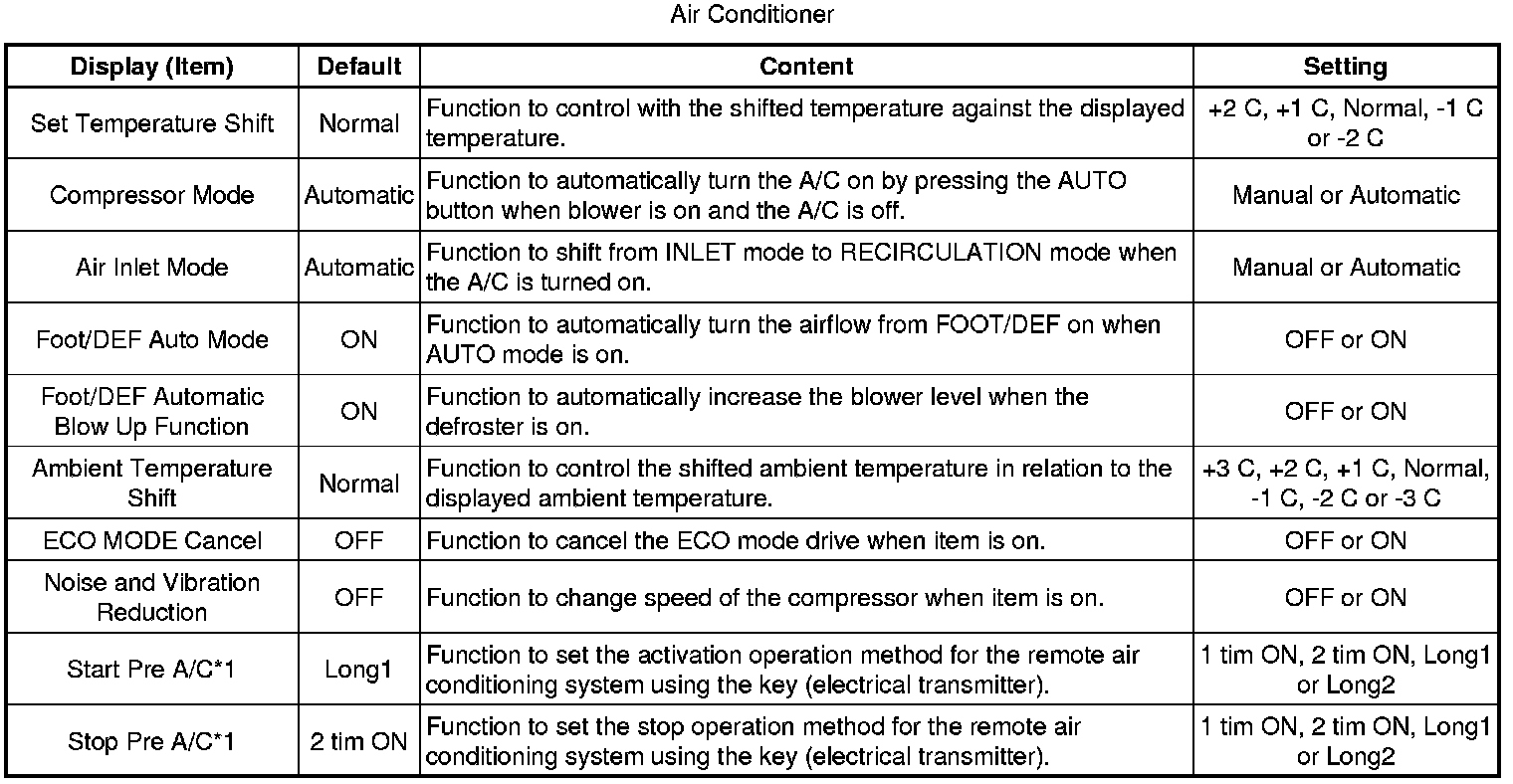

11. AIR CONDITIONING SYSTEM





* *1: w/ Remote Air Conditioning System

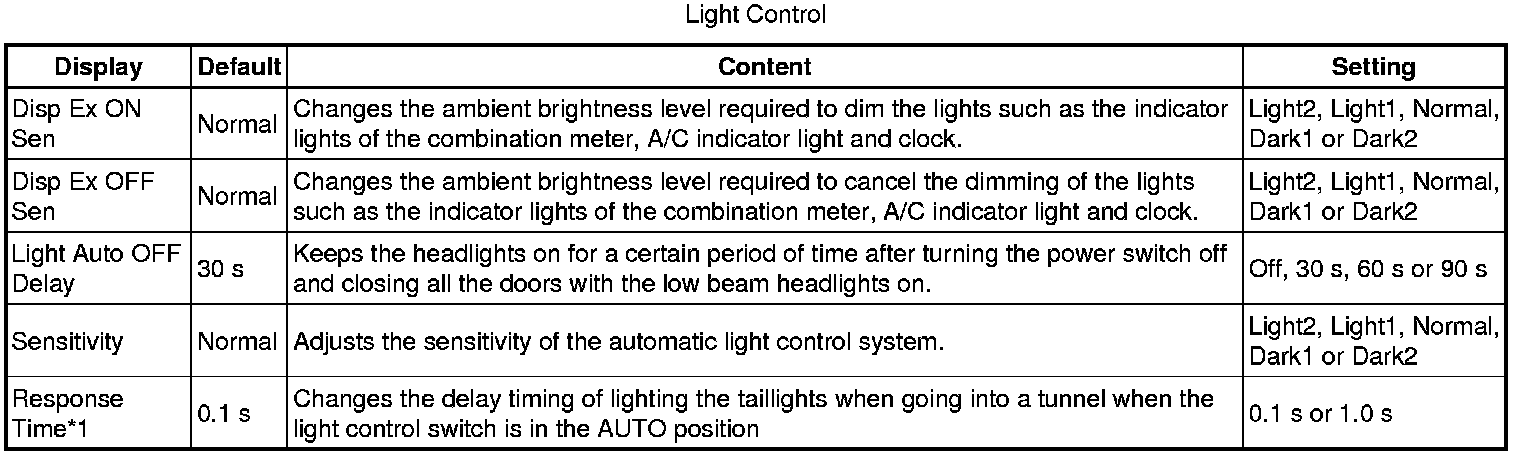

12. LIGHTING SYSTEM (LIGHTING EXT)





* *1: for Korea
