Canada - Audio System - Poor FM Radio Reception

Bulletin
TSB3465

Issue Date
September 23, 2010

Market
Canada

Title
POOR FM RADIO RECEPTION

Component
ELECTRICAL

Models
'10 Prius

INTRODUCTION:
Some 2010 model year Prius vehicles may exhibit poor FM radio reception. A radio with updated tuning has been developed to improve this condition.

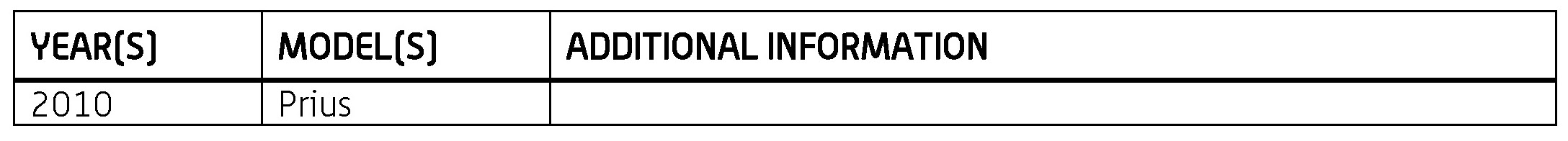

APPLICABILITY:

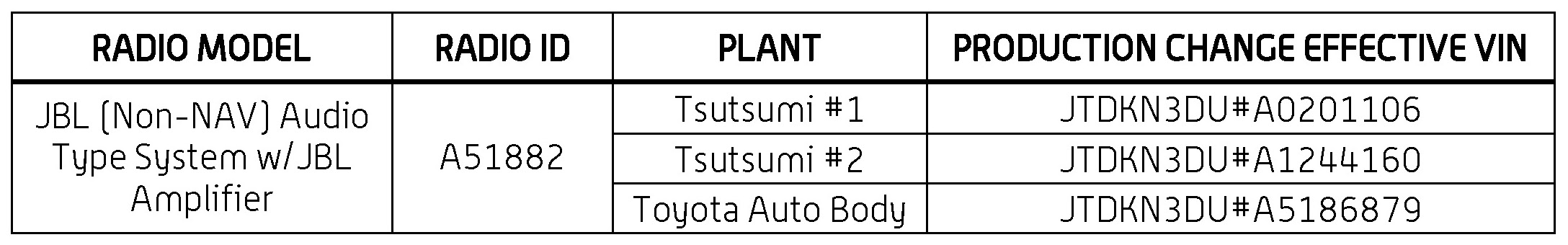

PRODUCTION CHANGE INFORMATION:







This TSB applies to vehicles produced BEFORE the Production Change Effective VIN shown.

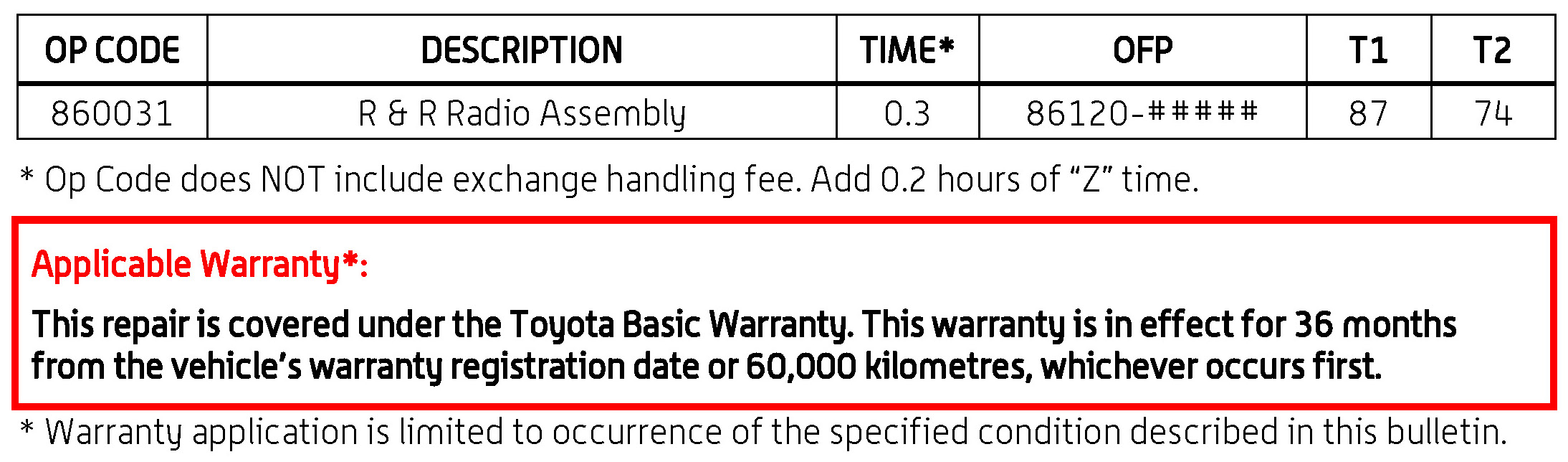

WARRANTY INFORMATION:

NOTE:
Radio MUST be obtained from the exchange program to qualify for warranty coverage.

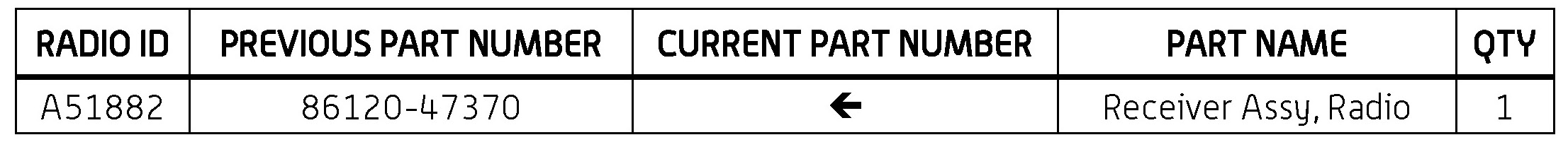

PARTS INFORMATION:

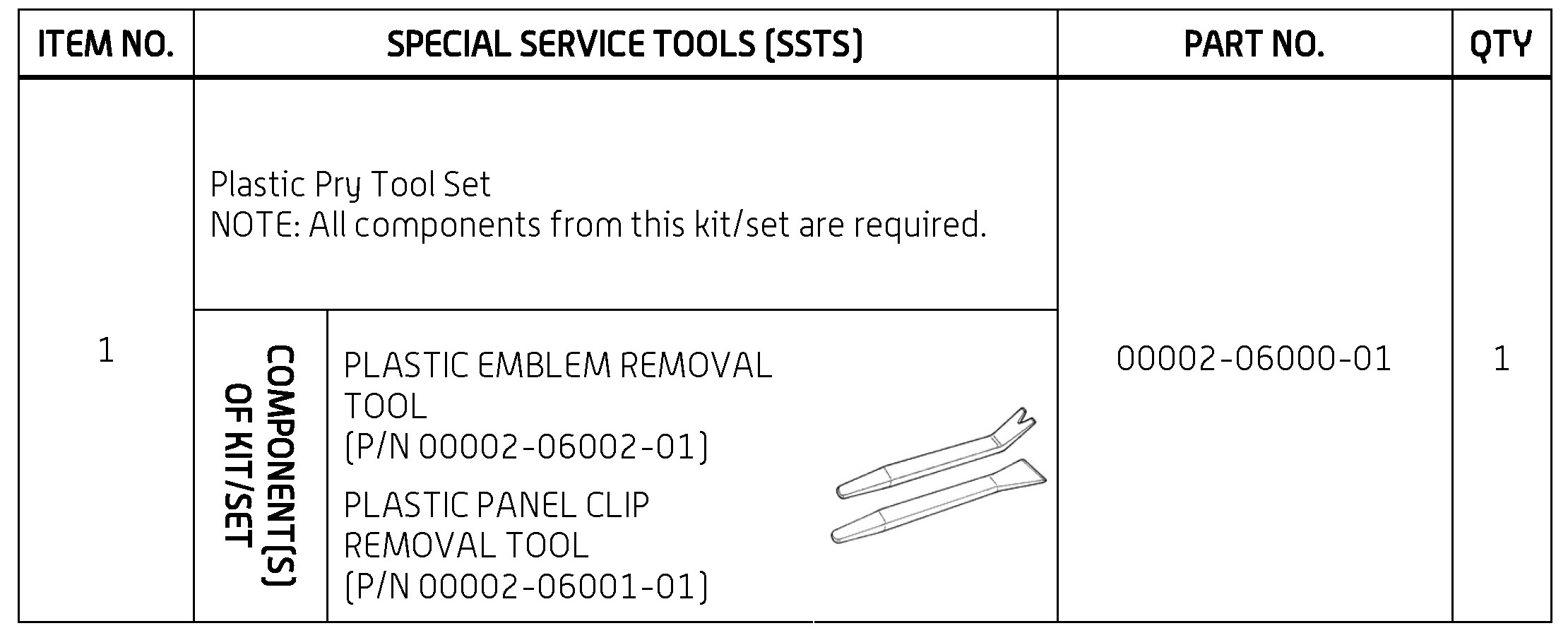

REQUIRED TOOLS & EQUIPMENT:

NOTE:
Additional SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

REPAIR PROCEDURE:
1. Confirm the poor reception condition.
2. Replace the radio receiver with the updated part.
Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Prius
- Year: 2010
- Service Category: Audio/Visual/Telematics
- Section: Audio/Video
- Keyword: Audio/Video: Radio Receiver: Removal / Installation

3. Confirm that the condition has been corrected.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
