Canada - A/C - A/C Control Display Difficult To Read

Bulletin
TSB3327

Issue Date
December 10, 2009

Market
Canada

Title
A/C CONTROL DISPLAY DIFFICULT TO READ

Component
HEATING/ AIR CONDITIONING

Models
'10 Prius

INTRODUCTION:
Some 2010 model year Prius vehicles may have an A/C control panel electronic display that is blurry, cloudy, or difficult to read. An improved A/C control panel has been made available to improve this condition.

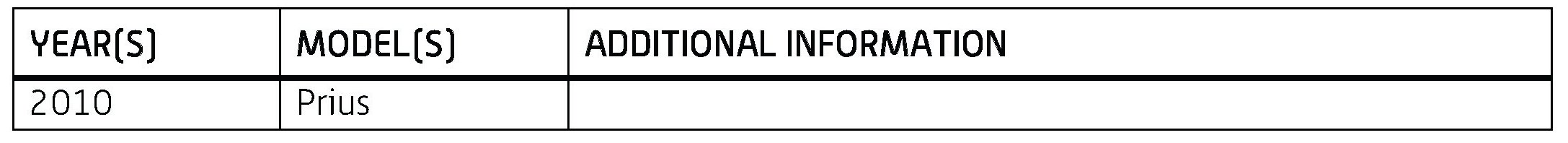

APPLICABILITY:

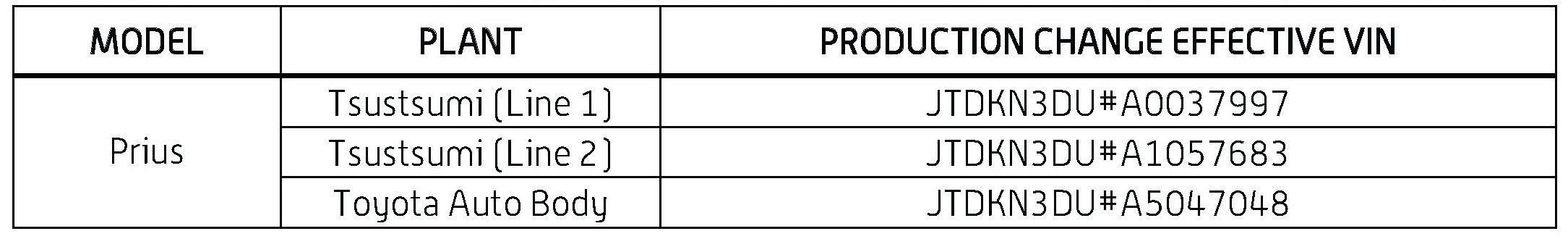

PRODUCTION CHANGE INFORMATION:







This TSB applies to vehicles produced BEFORE the Production Change Effective VIN shown.

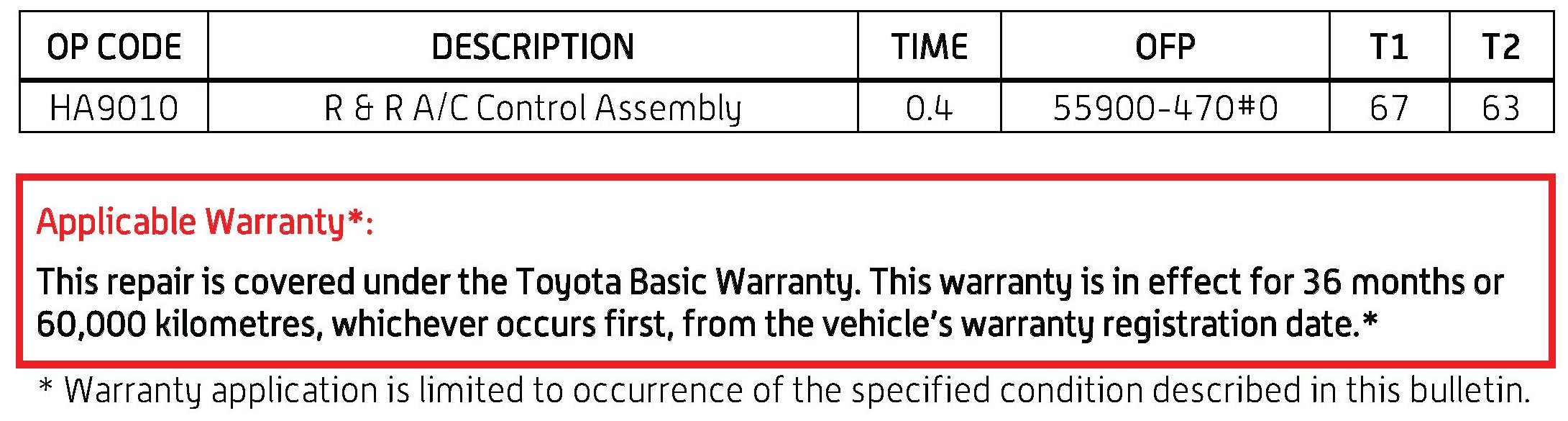

WARRANTY INFORMATION:

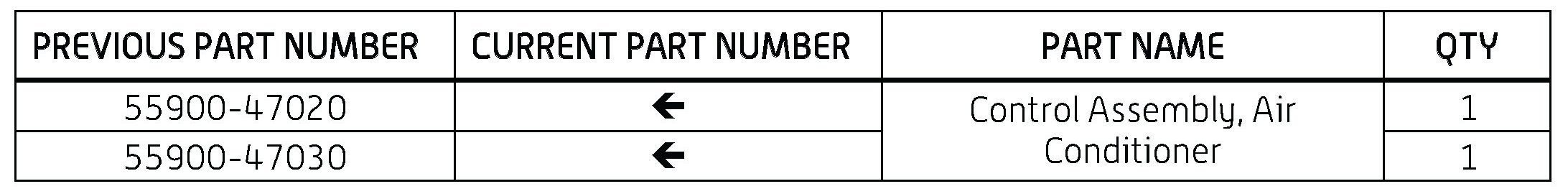

PARTS INFORMATION:

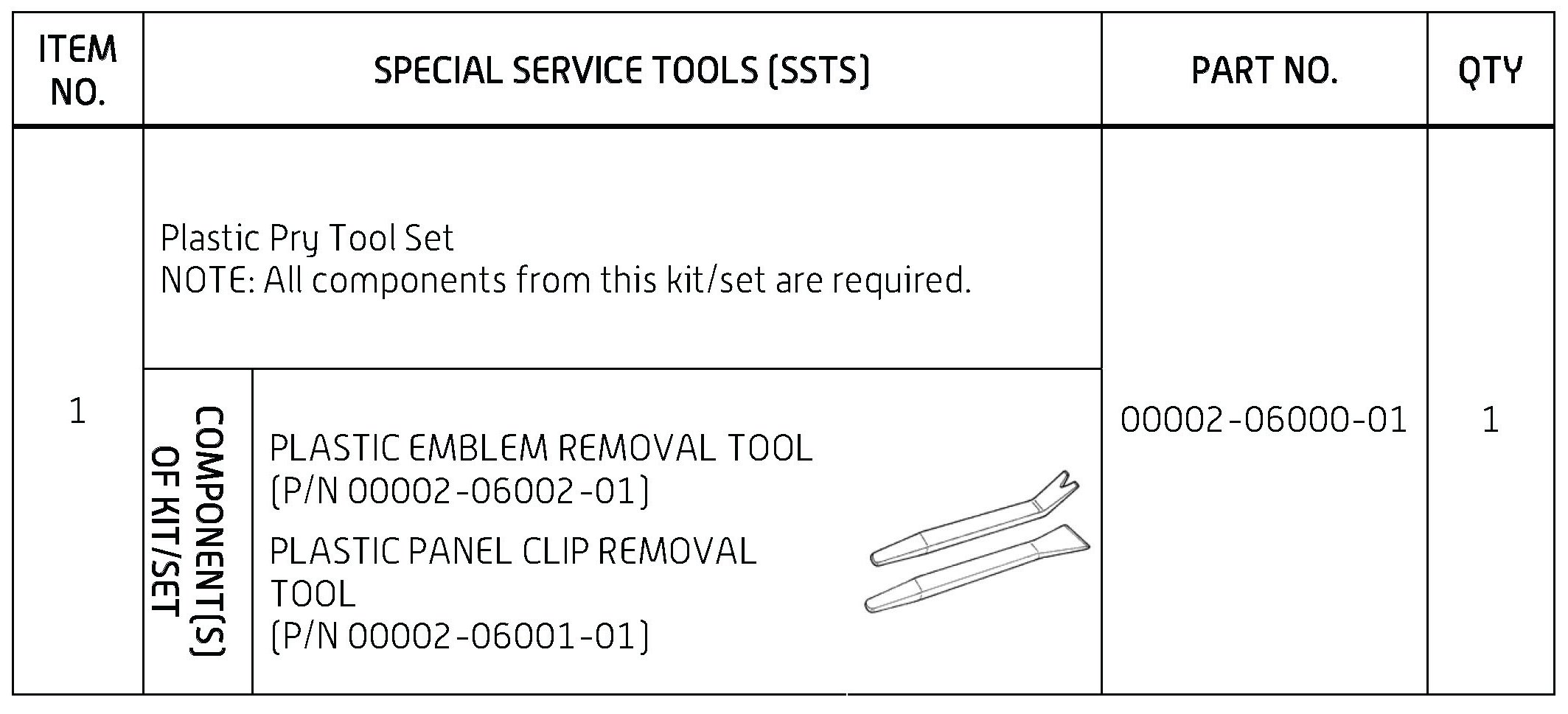

REQUIRED TOOLS & EQUIPMENT:

NOTE:
Additional SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

REPAIR PROCEDURE:
1. Confirm the A/C control panel display is difficult to read.
2. Remove and replace the A/C control assembly.
Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Prius
- Year: 2010
- Service Category: Vehicle Interior
- Section: Heating/Air Conditioning
- Keyword: Heating / Air Conditioning: Air Conditioning Panel: Removal / Installation

3. Verify proper operation.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
