Reassembly

HEATING / AIR CONDITIONING: CONDENSER: REASSEMBLY

1. INSTALL COOLER DRYER

(a) Using pliers, install a new cooler dryer to the modulator.





(b) Sufficiently apply compressor oil to a new O-ring and the fitting surfaces of the cap.





Compressor oil:

ND-OIL 11 or equivalent

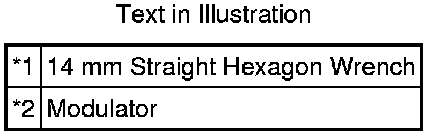

(c) Using a 14 mm straight hexagon wrench, install the cap to the cooler condenser core.





Torque : 2.9 Nm (30 kgf-cm, 26 in-lbf)

NOTICE:
* Keep the O-ring and O-ring fitting surfaces clean from dirt or any foreign objects.
* Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.






2. INSTALL COOLER CONDENSER CUSHION

(a) for LH Side:

(1) Install the cooler condenser cushion.





(b) for RH Side:

(1) Install the cooler condenser cushion.
