Prius L4-1.8L (2ZR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Back Door Wire

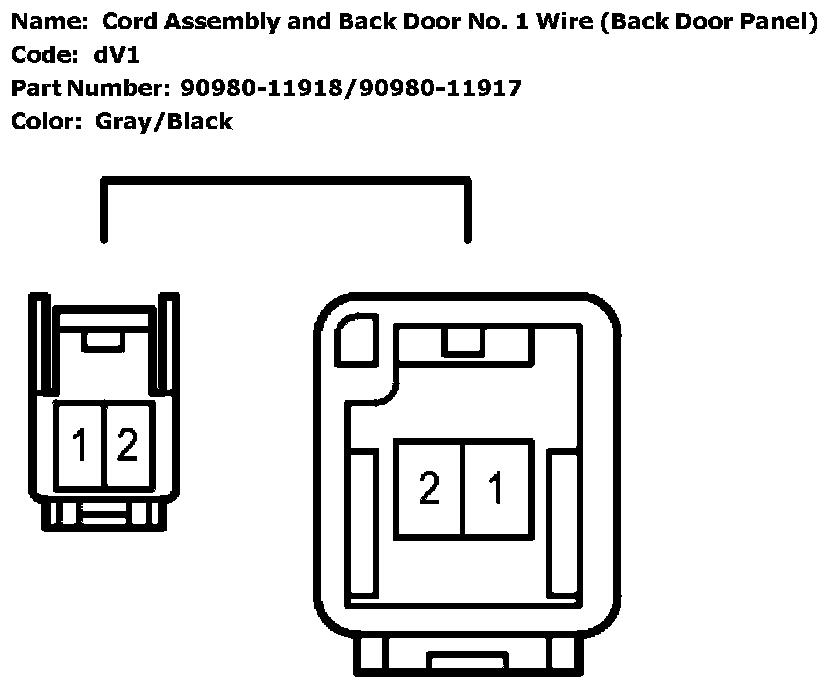

Back Door Wire
Gray/Black:
