Home
>>
Toyota
>>
2010
>>
Prius L4-1.8L (2ZR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet
>>

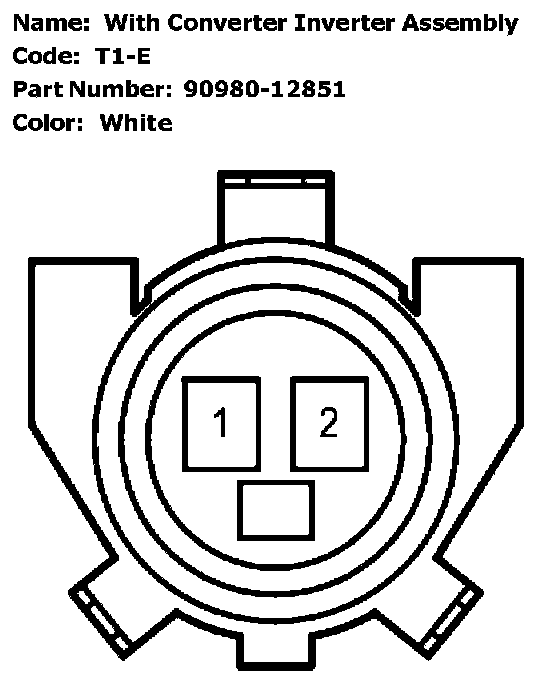

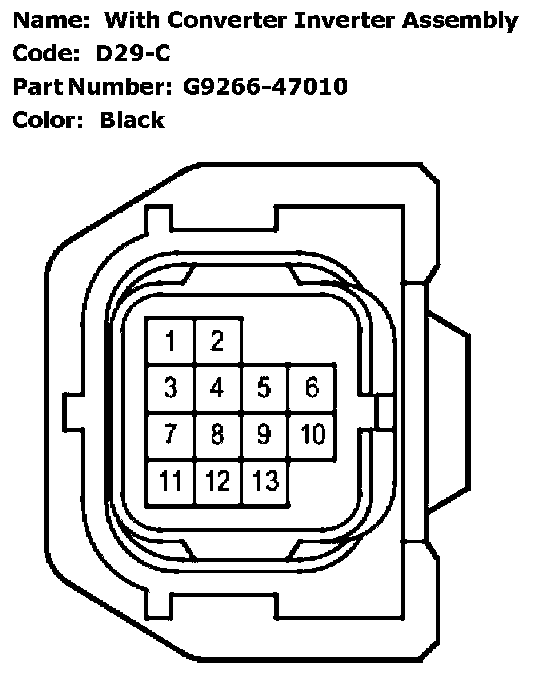

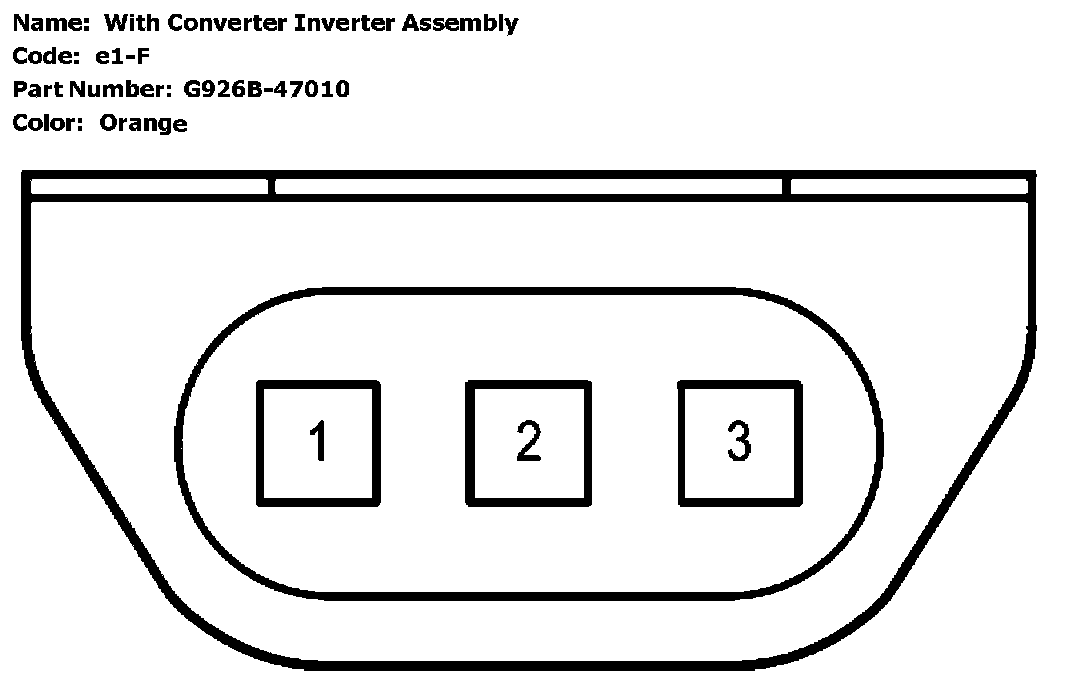

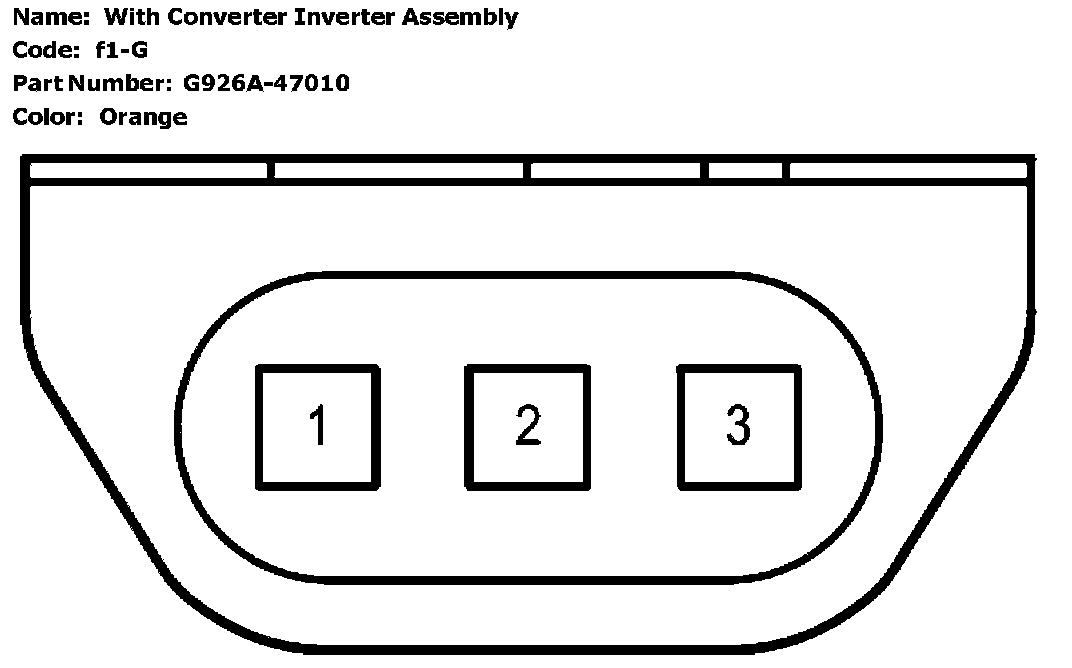

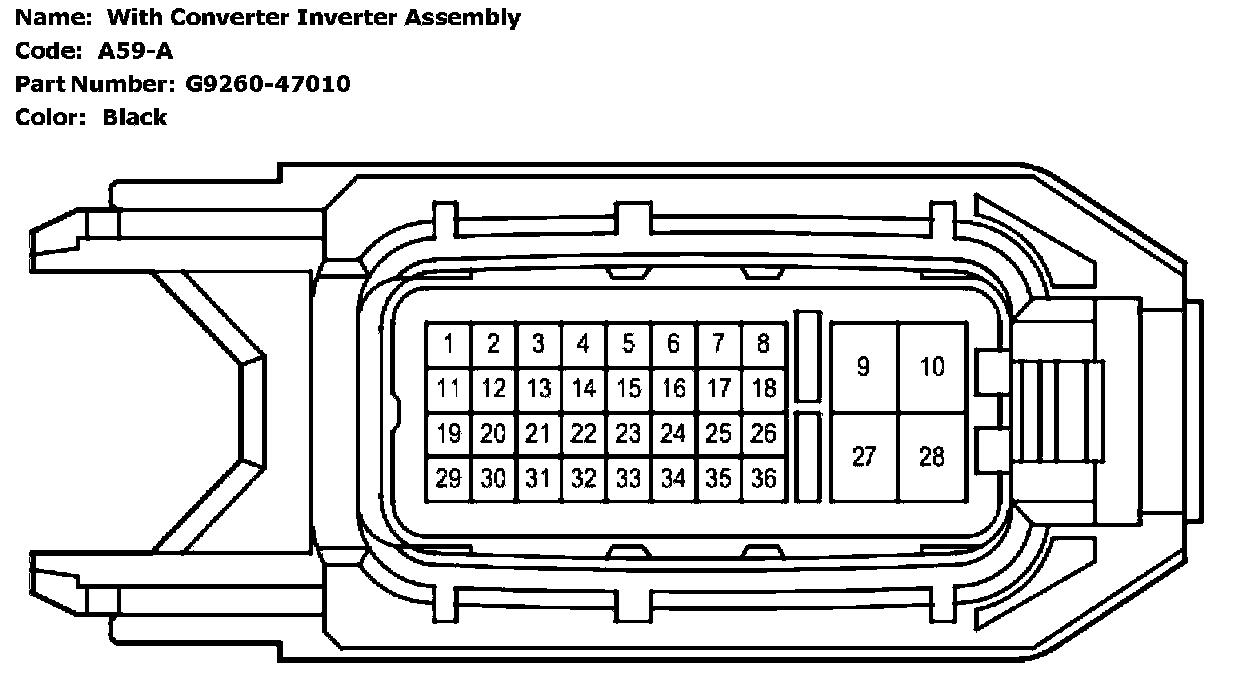

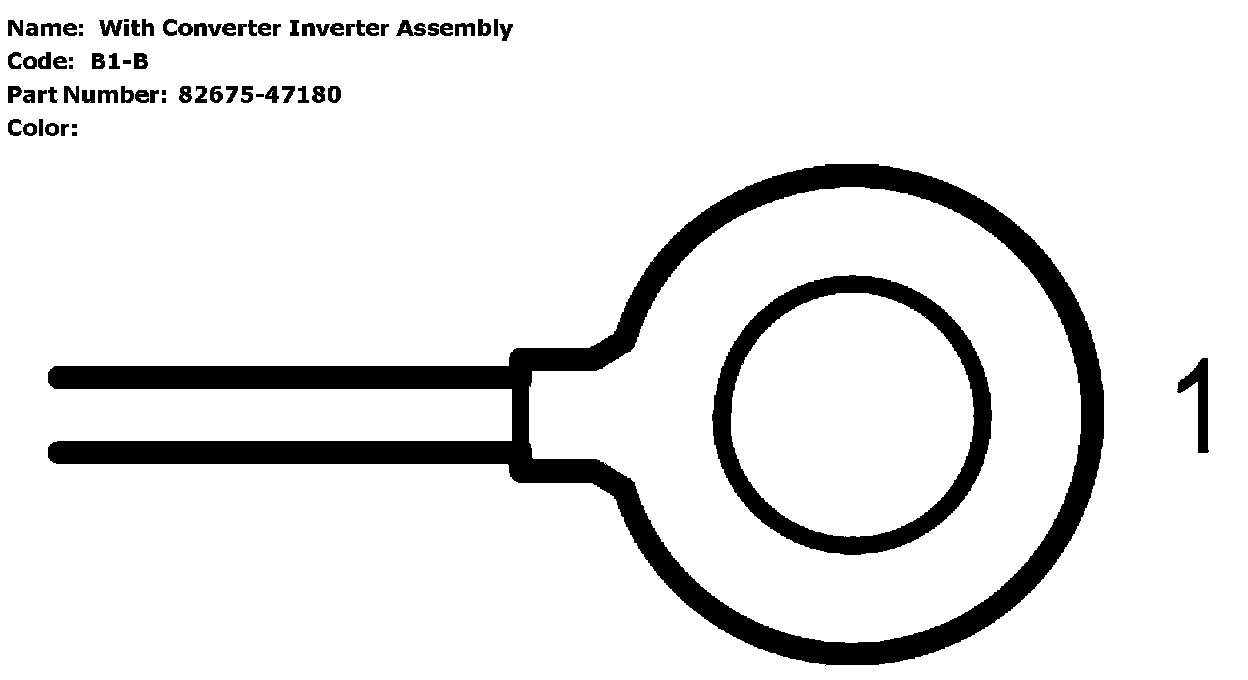

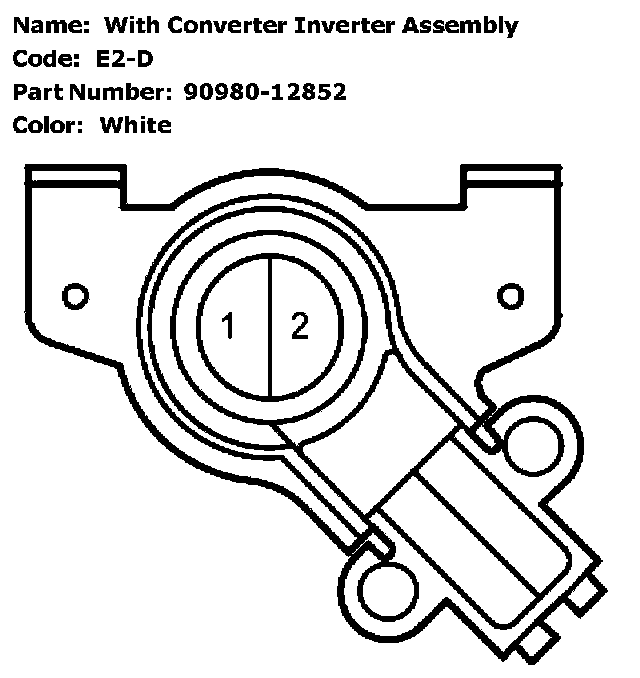

With Converter Inverter Assembly
With Converter Inverter Assembly
