Smart Key System (for Entry Function)

THEFT DETERRENT / KEYLESS ENTRY: SMART KEY SYSTEM (for Entry Function): CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT

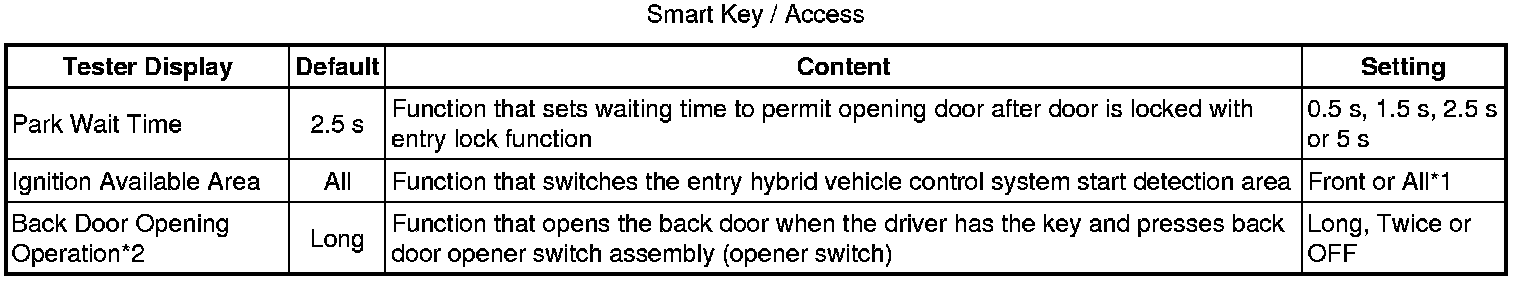

The items in the table below can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current setting before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.
(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Customize Setting.

(e) Select the setting by referring to the table below.





* *1: Weak radio waves will still be emitted from oscillators other than the front oscillator even when the "Front" customize setting is selected.

* *2: w/ Entry System Back Door Open Function





2. ENTRY UNLOCK MODE SWITCHING*

*: except for Korea and Mexico

(a) To change the vehicle entry unlock mode, make sure that the vehicle power is off and simultaneously push and hold the lock switch and another switch on the key for 5 seconds.

Driver door unlock default setting:

When the switches are pressed and held for 5 seconds, the entry door unlock mode changes to the mode that is not currently selected.

NOTICE:
After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

* Driver door unlock mode:

* When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.*

* *: w/ Entry System Back Door Open Function

* All door unlock mode:

* When any touch sensor is touched, all doors unlock.

(b) The certification ECU (smart key ECU assembly) receives this signal from the door control receiver assembly and changes the smart key system to entry unlock mode.

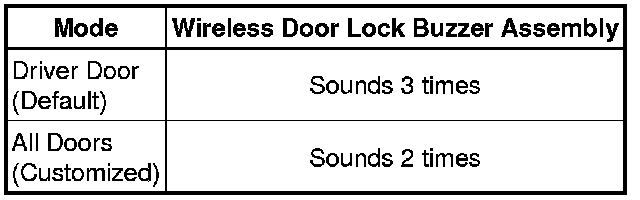

(c) The certification ECU (smart key ECU assembly) sounds the buzzers of the wireless door lock buzzer assembly.





HINT
The procedure only changes entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

3. ELECTRICAL KEY CANCEL

The electrical key cancel operation disables the following functions:

* Entry Unlock/Lock

* Entry Hybrid Vehicle Control System Start

* Entry System Back Door Open Function*

* *: w/ Entry System Back Door Open Function

* Electrical Key Lock-in Prevention

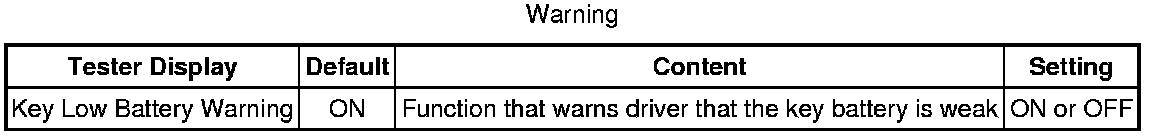

* Warning

(a) The operation procedure is as follows:

Precondition:

Power switch off, driver door closed and unlocked.

(1) Push the unlock switch of the key once.

(2) Open the driver door within 5 seconds.

(3) Push the unlock switch of the key twice within 5 seconds.

(4) Close and open the driver door twice within 30 seconds.

(Driver door: Close -> Open -> Close -> Open)

(5) Push the unlock switch of the key twice within 5 seconds.

(6) Close and open the driver door within 30 seconds.

(Driver door: Close -> Open)

(7) Close the driver door within 5 seconds.

When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

To return to the original condition, perform the procedure again. When the original condition is returned, the wireless door lock buzzer sounds once.
