Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2010
>>
Matrix FWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Display
>>

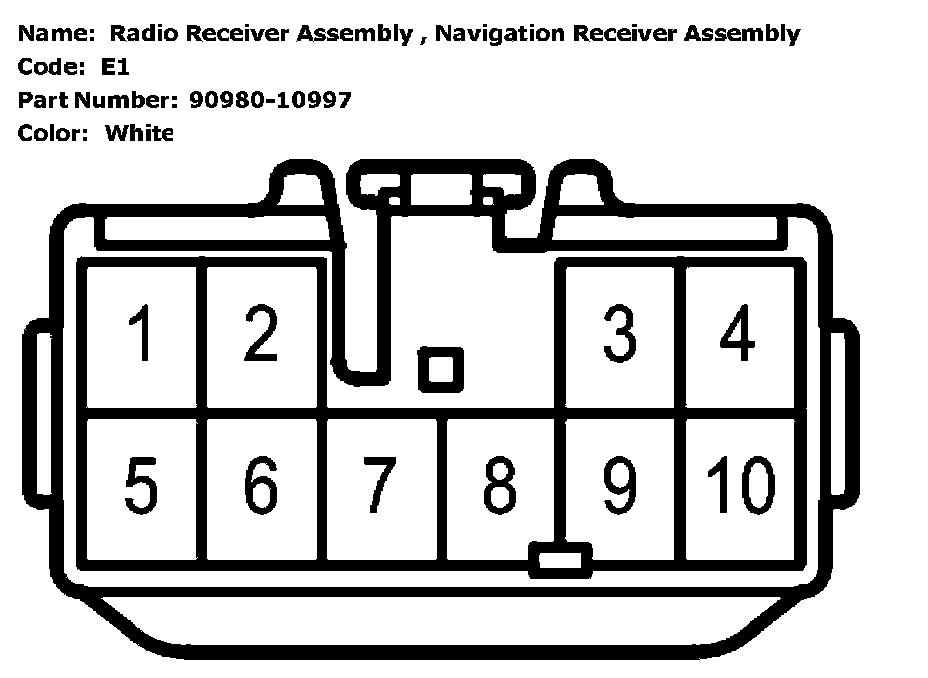

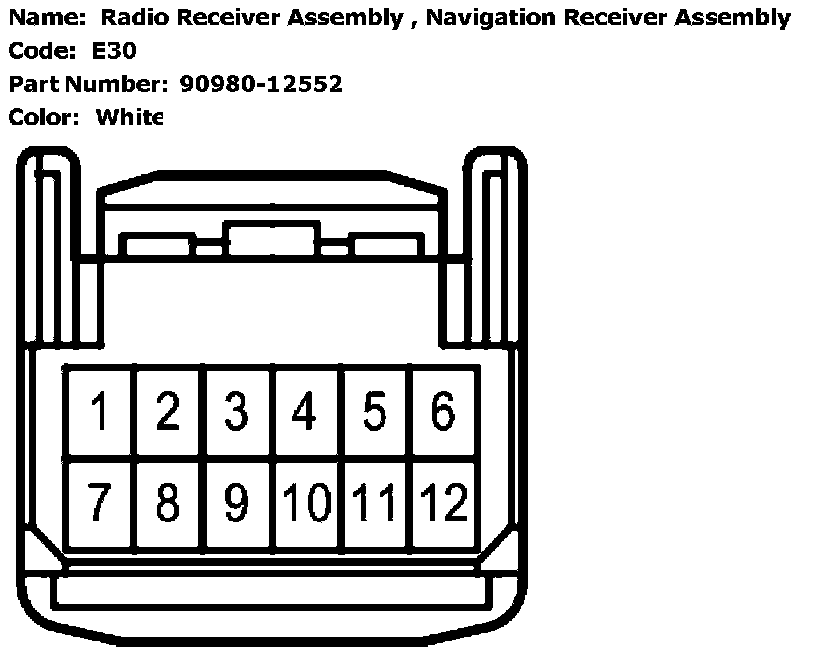

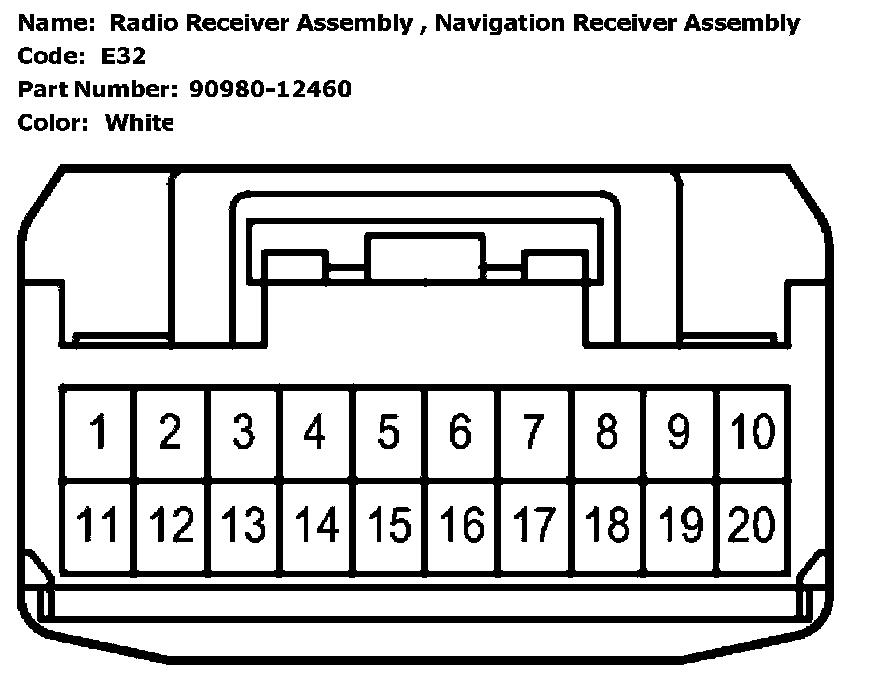

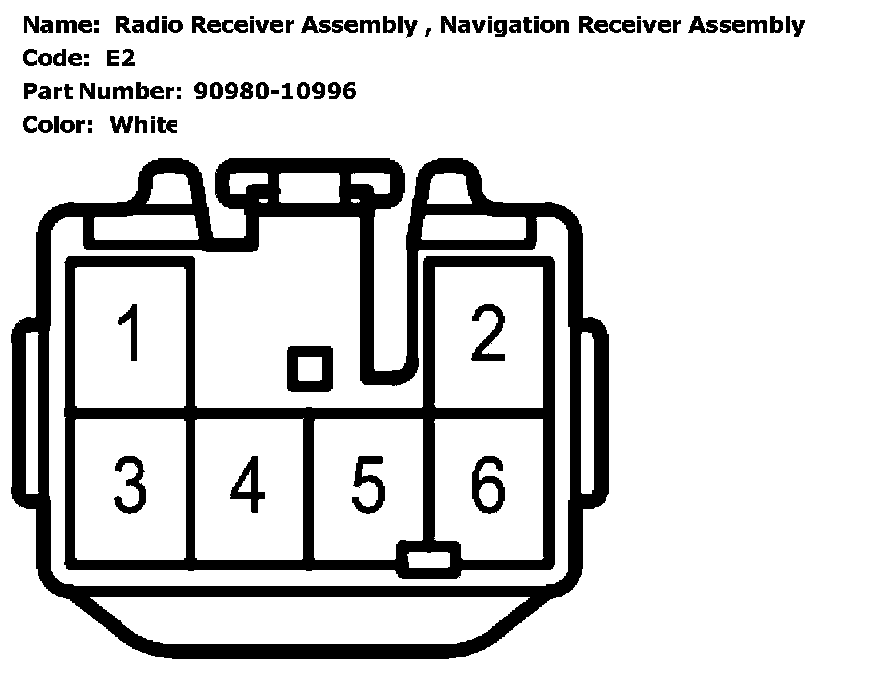

Radio Receiver Assembly, Navigation Receiver Assembly
Radio Receiver Assembly, Navigation Receiver Assembly
