Rear Differential Carrier Oil Seal
>>
Components
Components

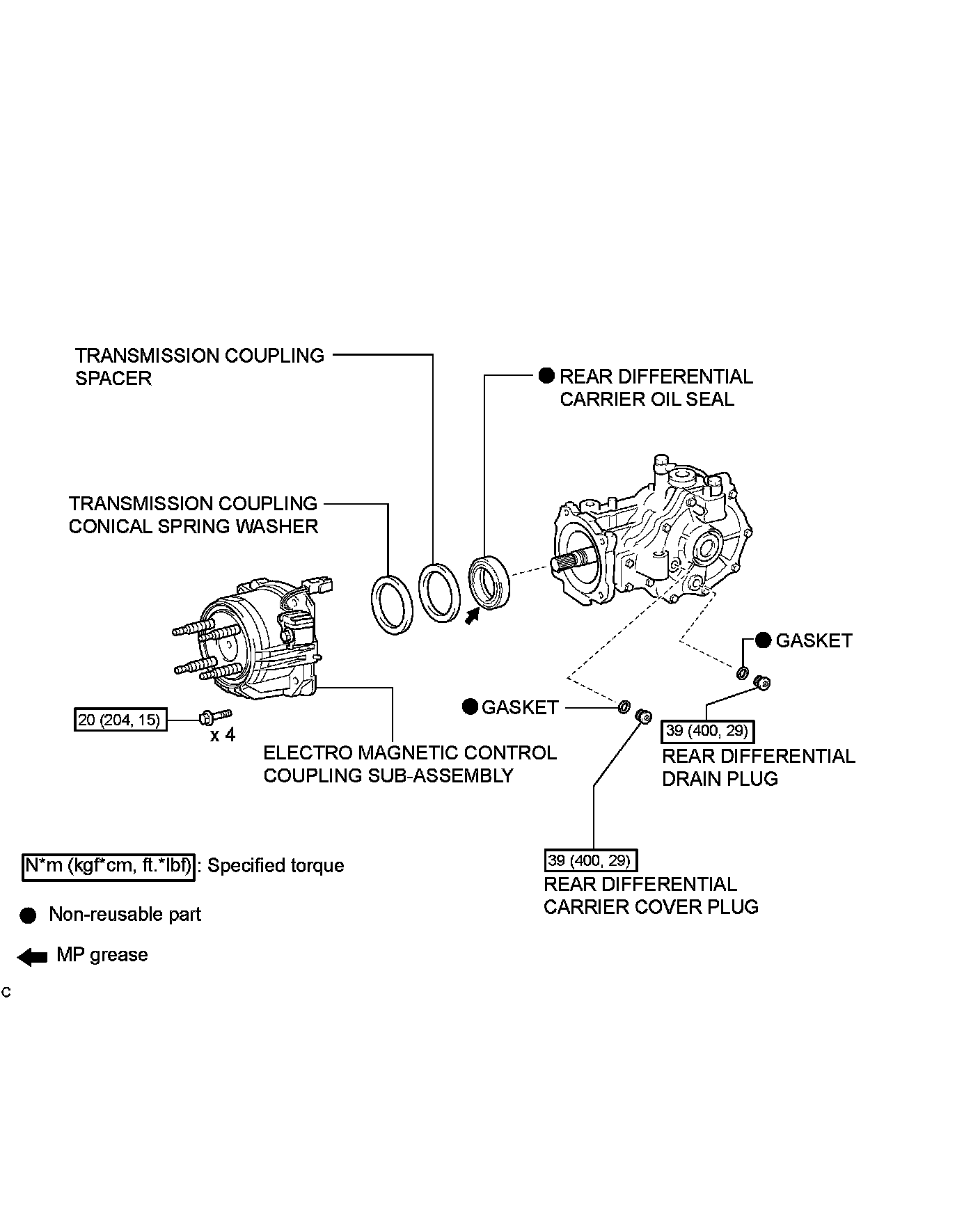

AXLE AND DIFFERENTIAL: REAR
DIFFERENTIAL CARRIER
OIL SEAL: COMPONENTS
