Toyota
>>
2010
>>
Matrix AWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>

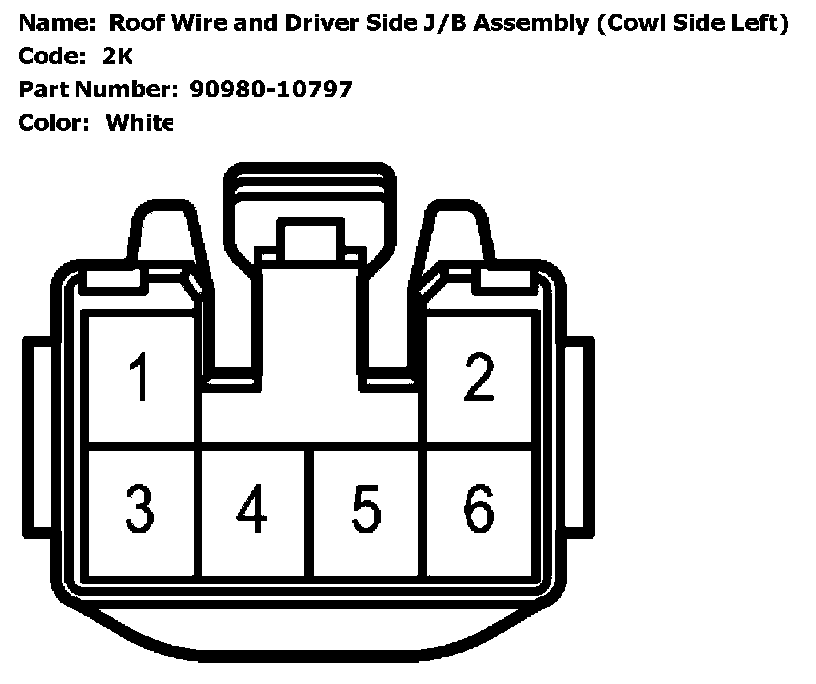

Roof Wire and Driver Side J/B Assembly (Cowl Side Left)
Roof Wire and Driver Side J/B Assembly (Cowl Side Left)
