Brake Actuator (w/ VSC)
>>
Components
Components

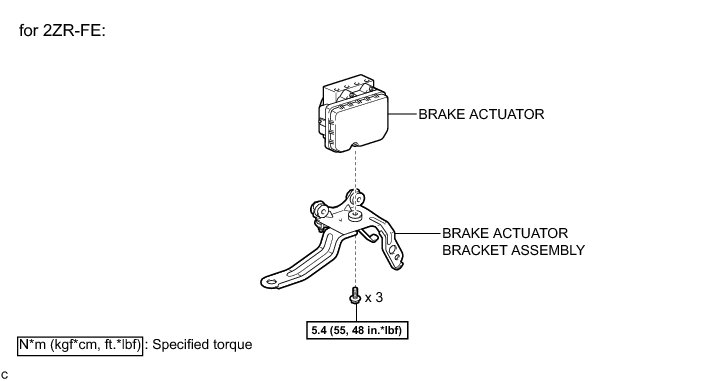

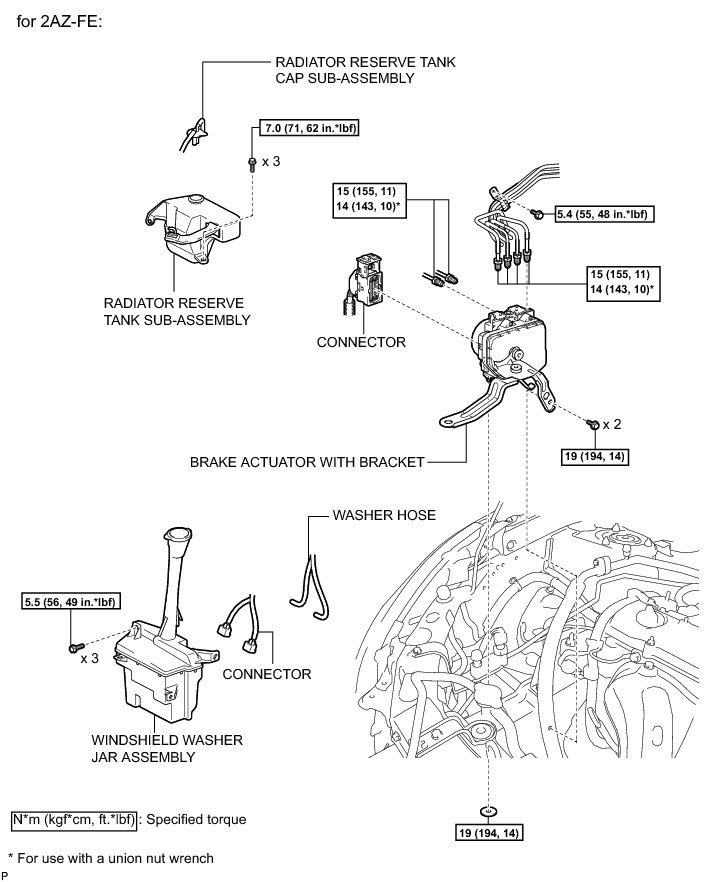

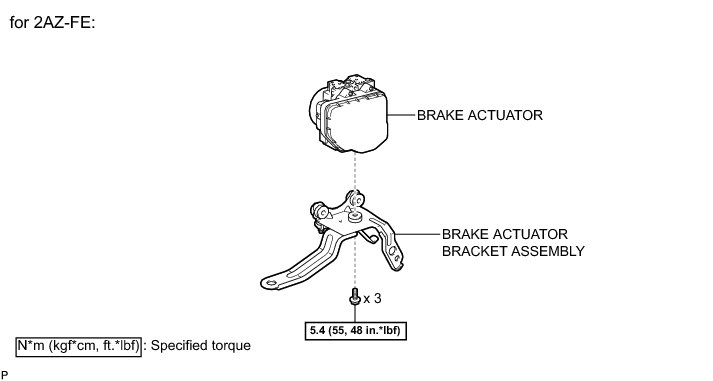

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR (w/ VSC): COMPONENTS
