Variable Induction System: Description and Operation

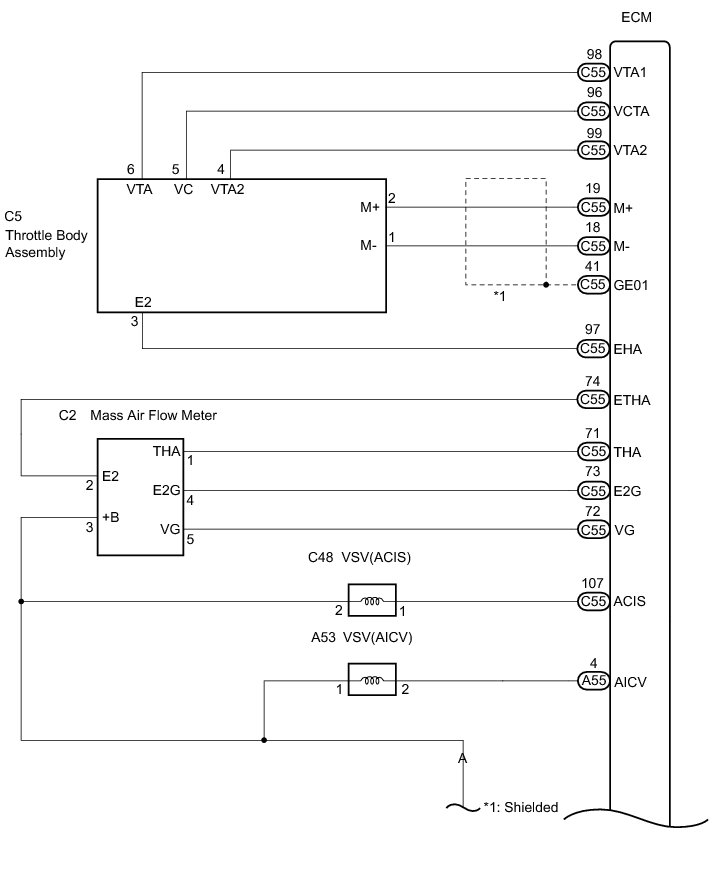

2GR-FE INTAKE: INTAKE AIR CONTROL SYSTEM: SYSTEM DIAGRAM
