Installation

2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR (for Bank 2)

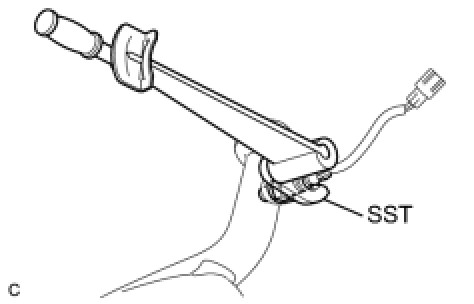

(a) Using SST, install the heated oxygen sensor.





SST : 09224-00010

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf)

2. INSTALL HEATED OXYGEN SENSOR (for Bank 1)

(a) Using SST, install the heated oxygen sensor.





SST : 09224-00010

3. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

4. INSTALL ENGINE UNDER COVER LH

5. INSTALL ENGINE UNDER COVER RH
