Wire and Wire In Instrument Panel

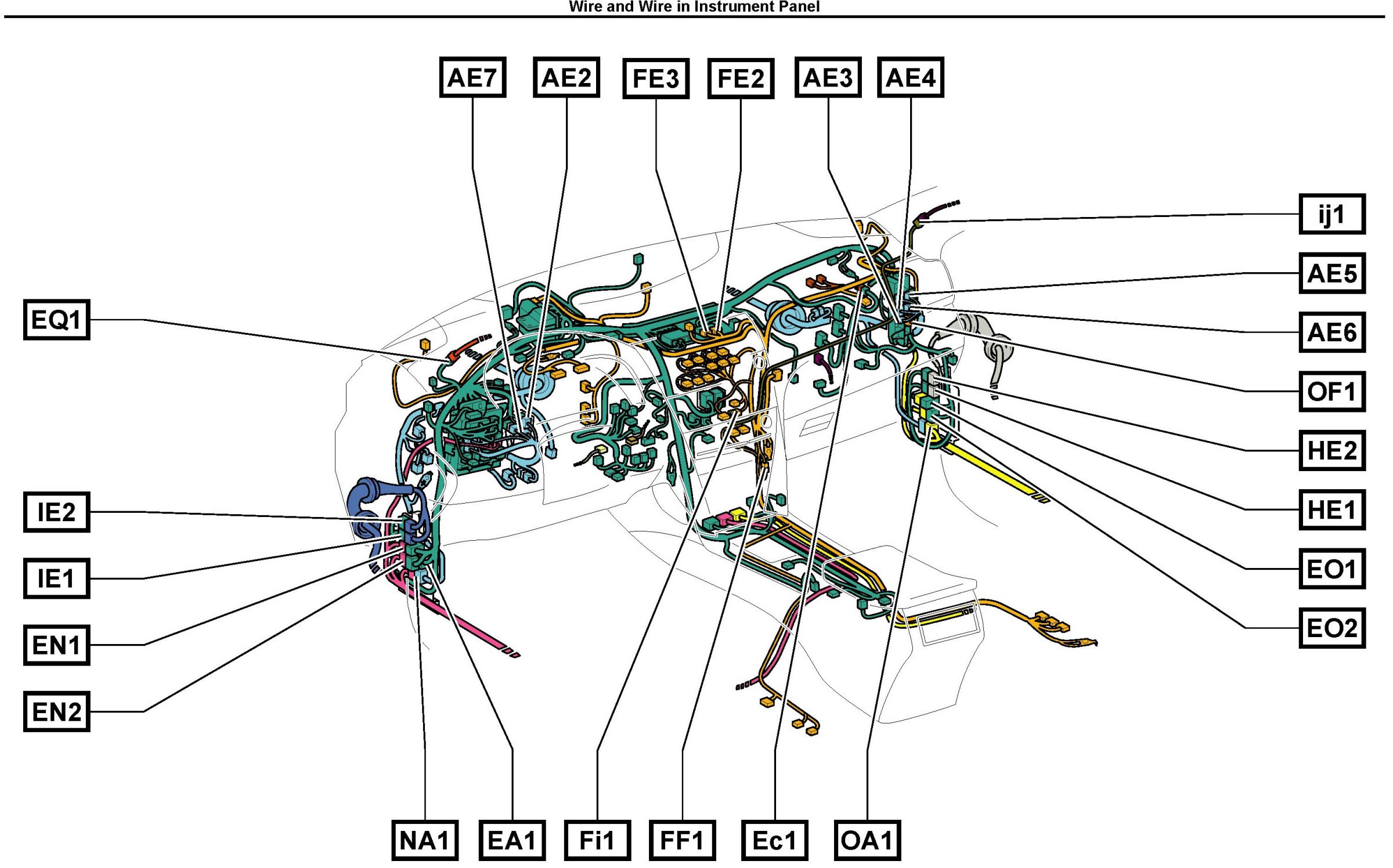

AE2-OF1 Positions:

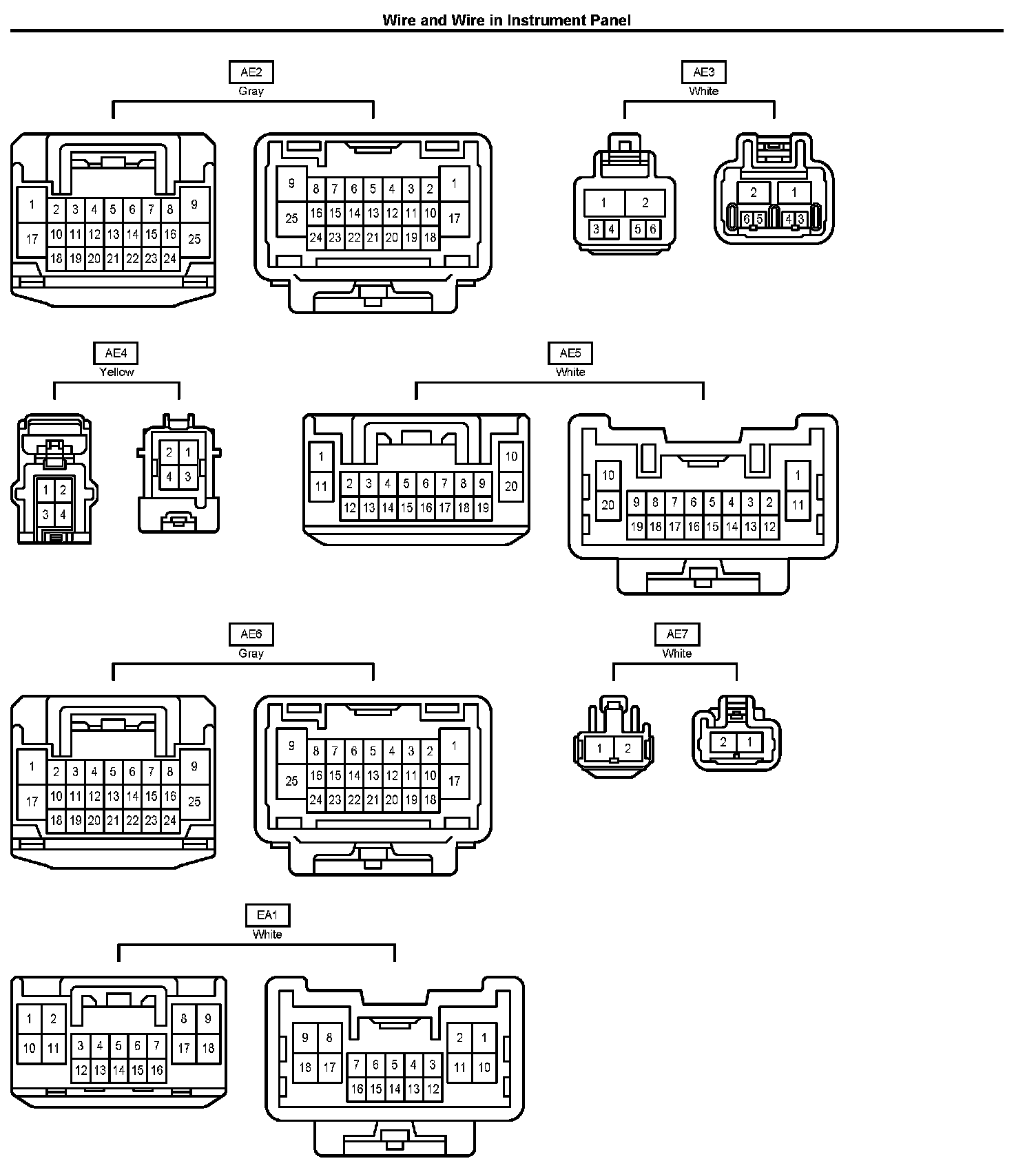

AE2-EA1 Connector Views:

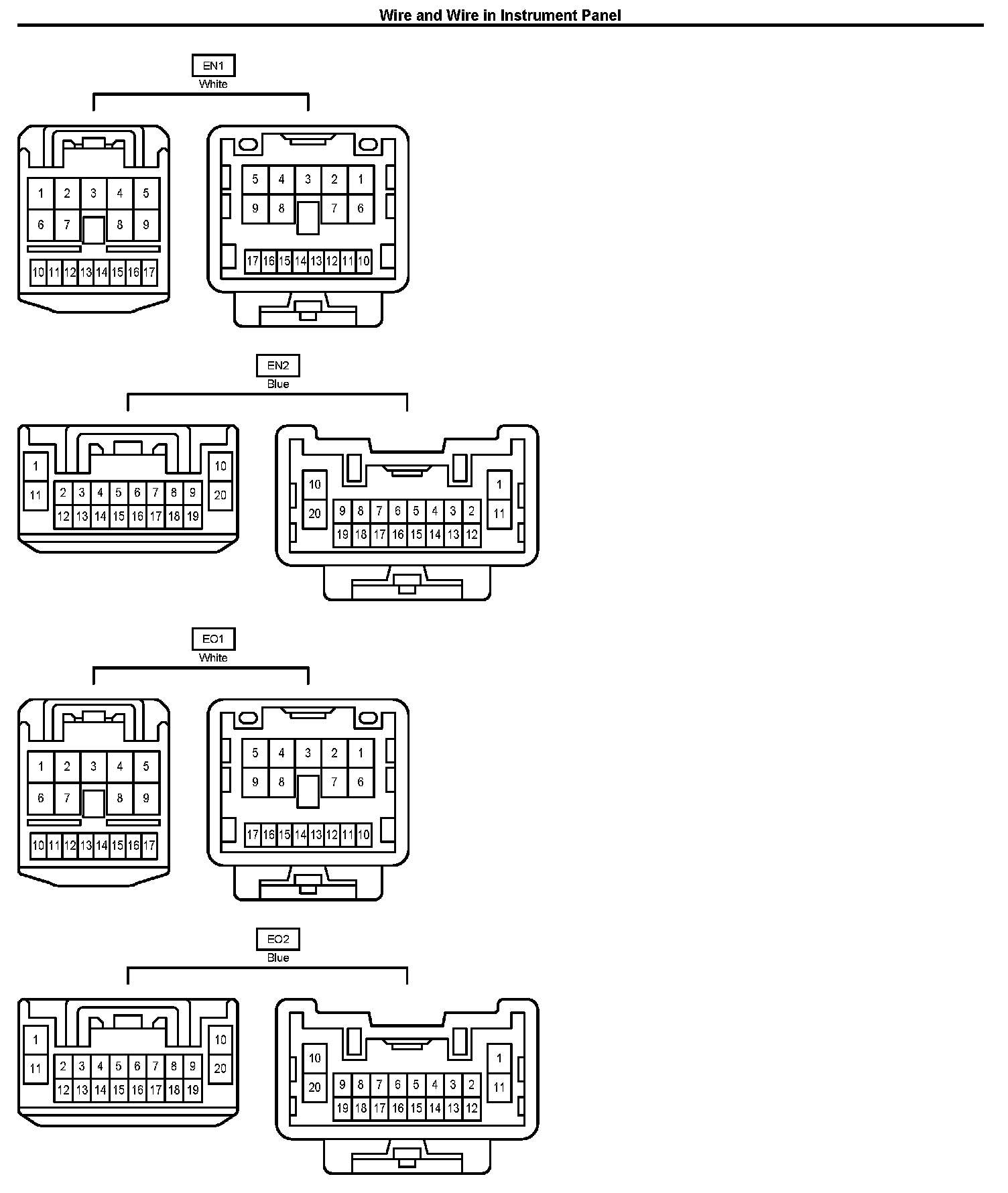

EN1-EO2 Connector Views:




Ec1-FF1 Connector Views:

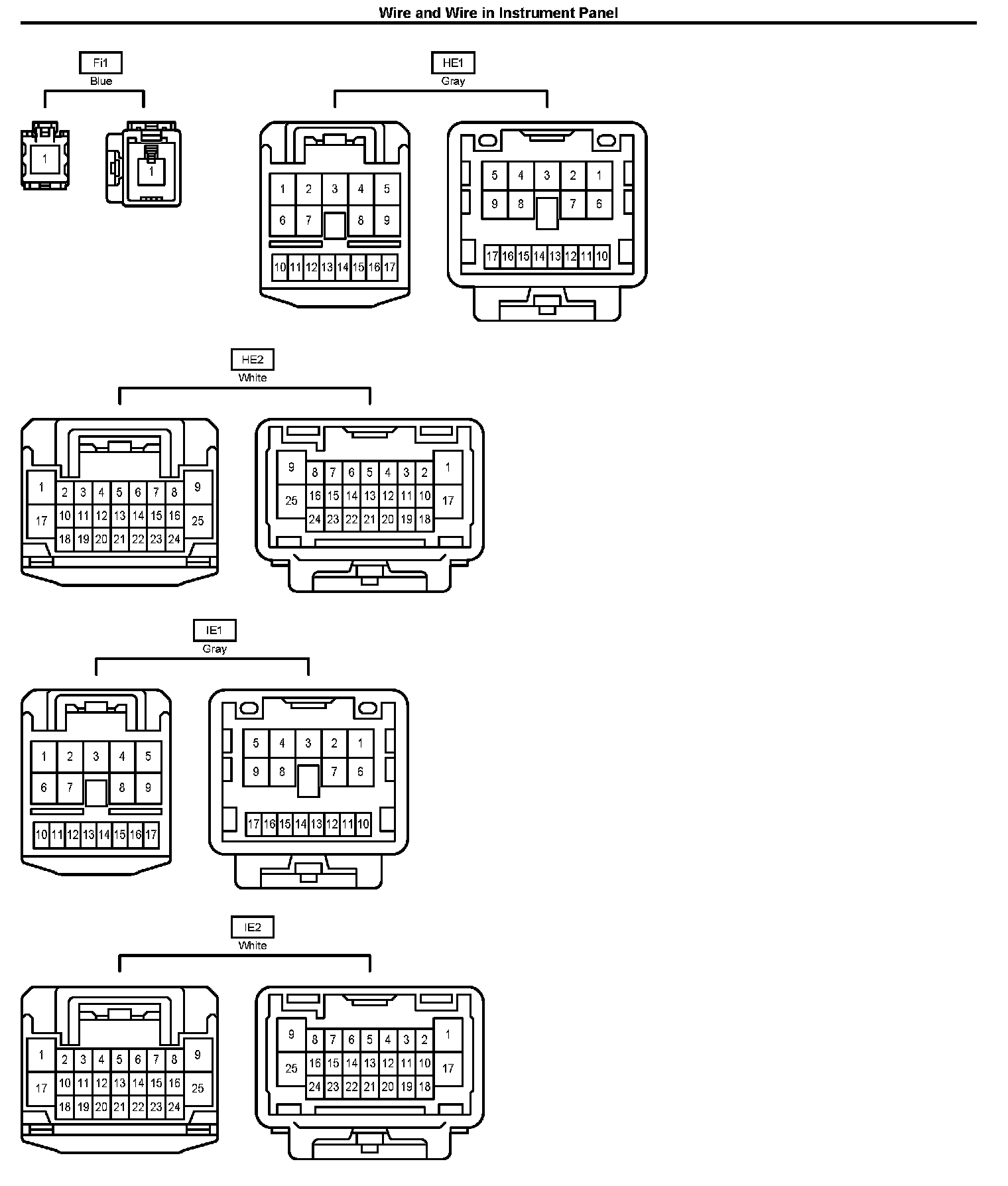

Fi1-IE2 Connector Views:

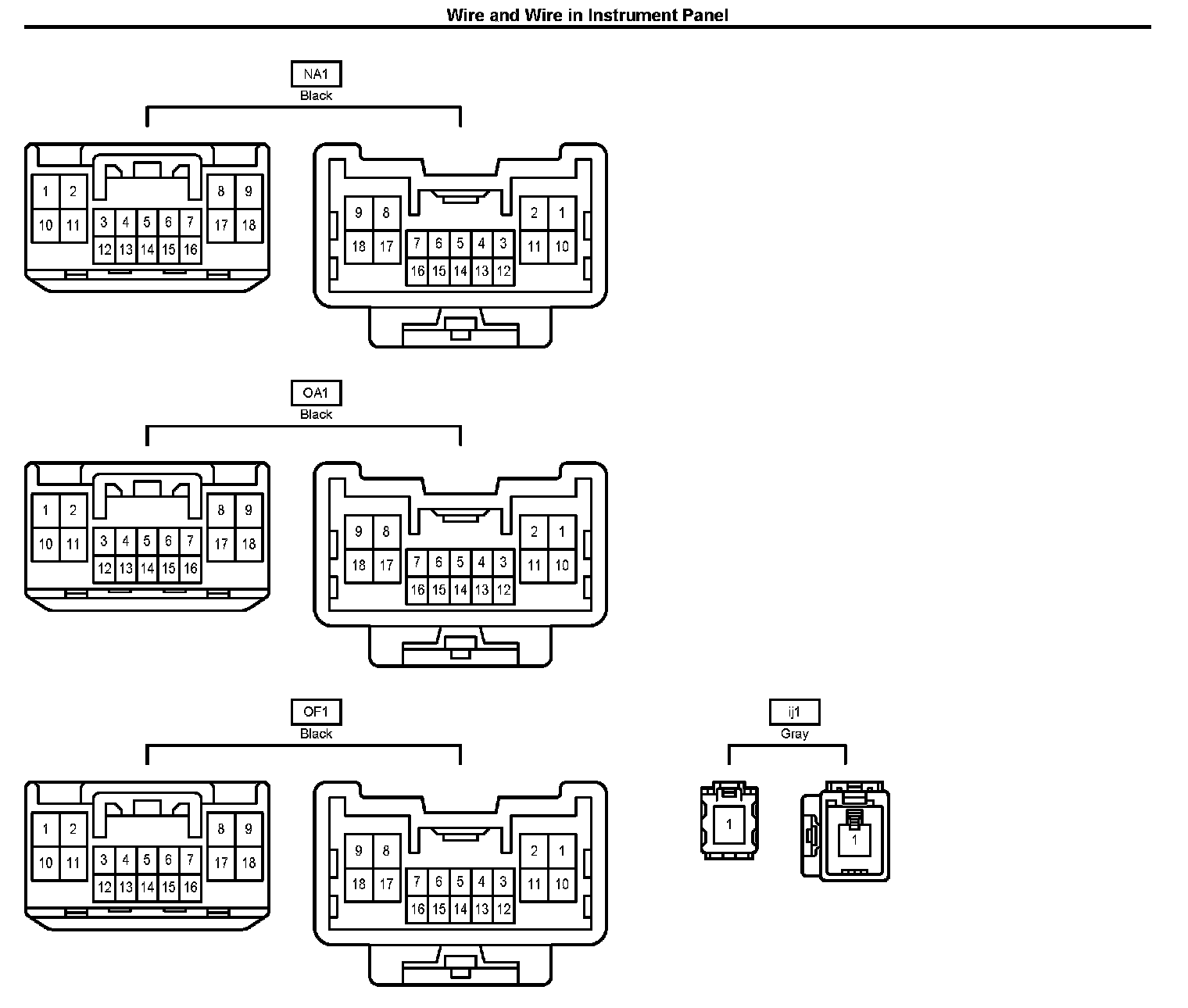

ij1-OF1 Connector Views:
