Fuse: Application and ID




Fuse Layout and Amperage Ratings

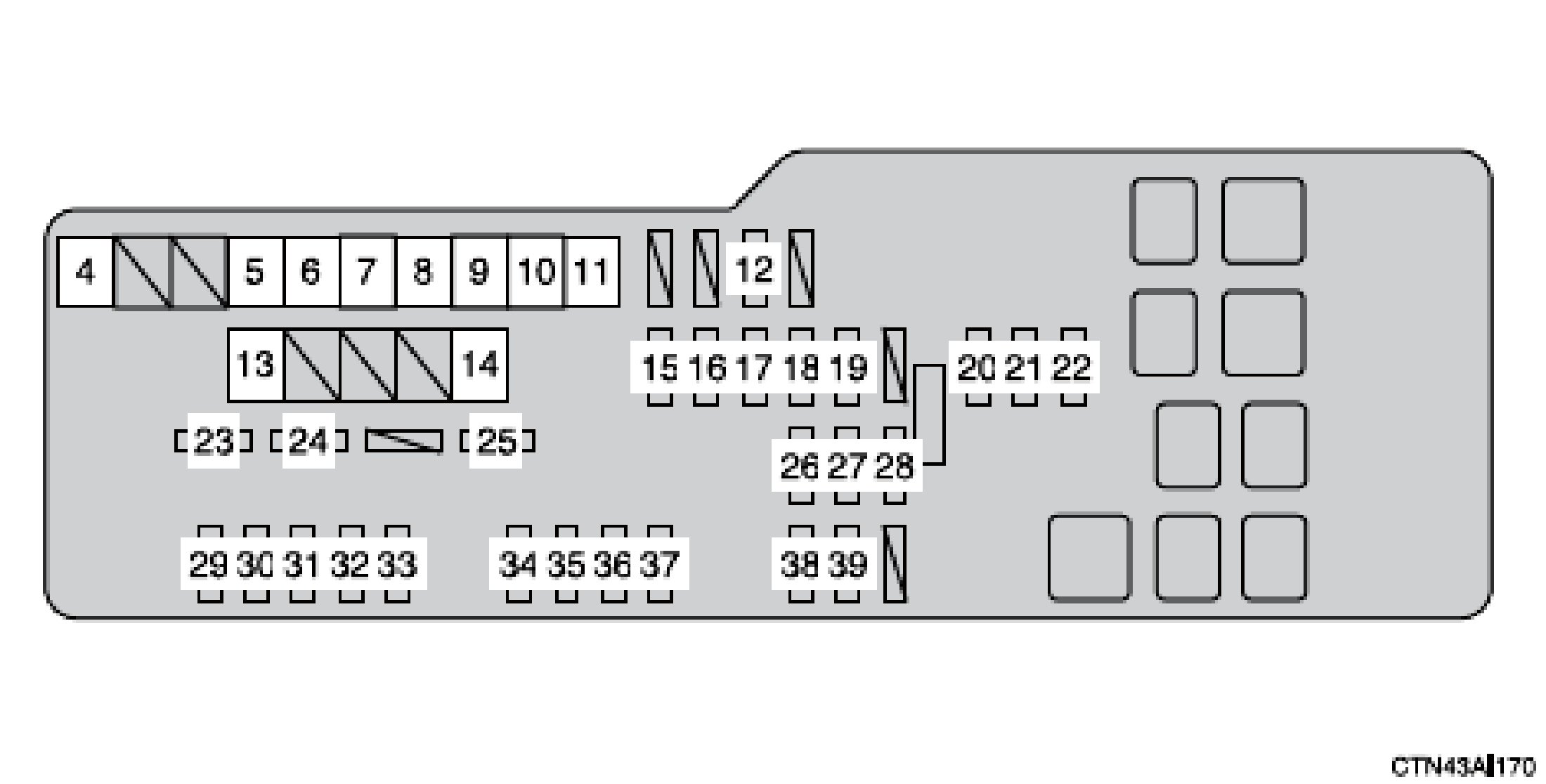

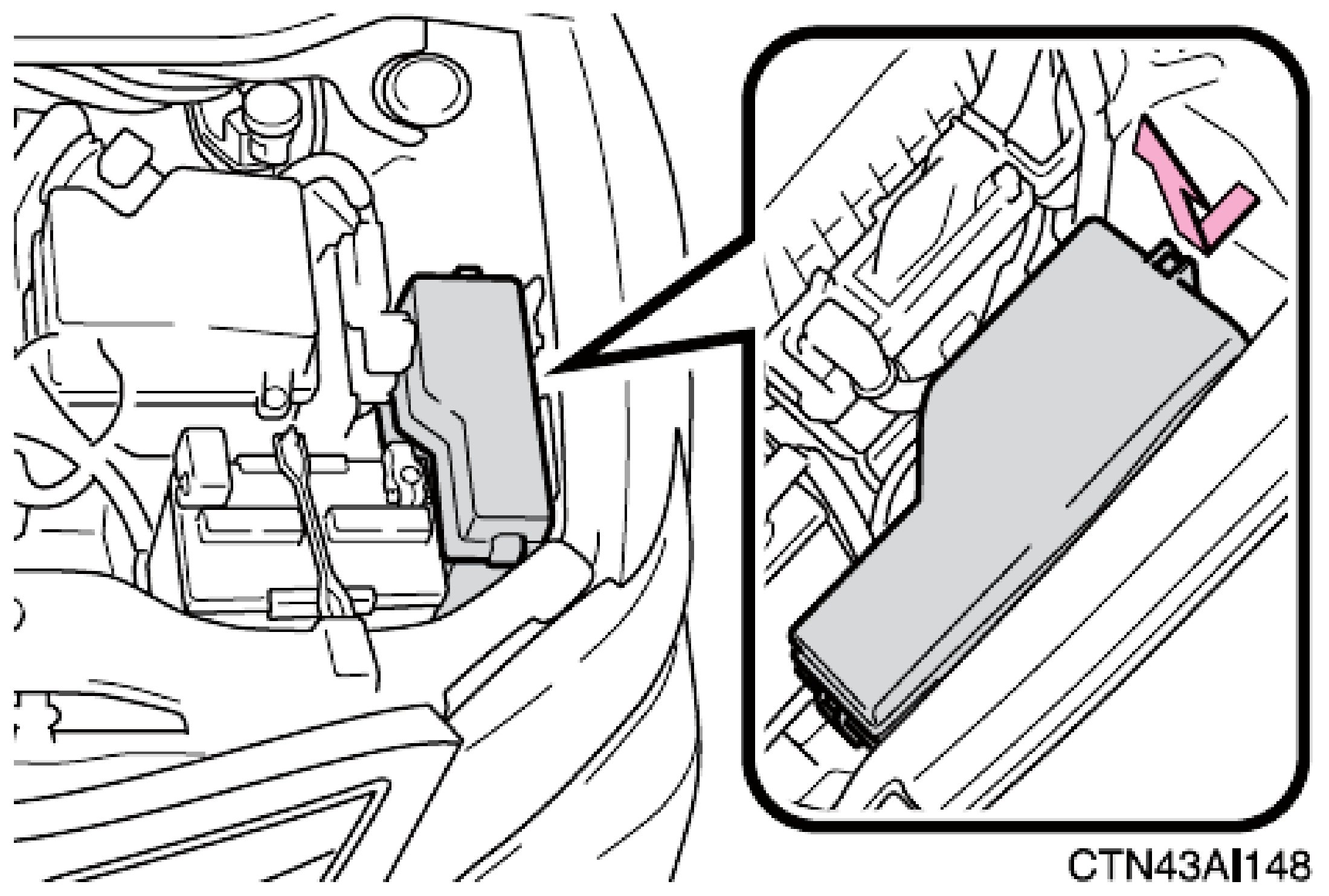

Engine Compartment:

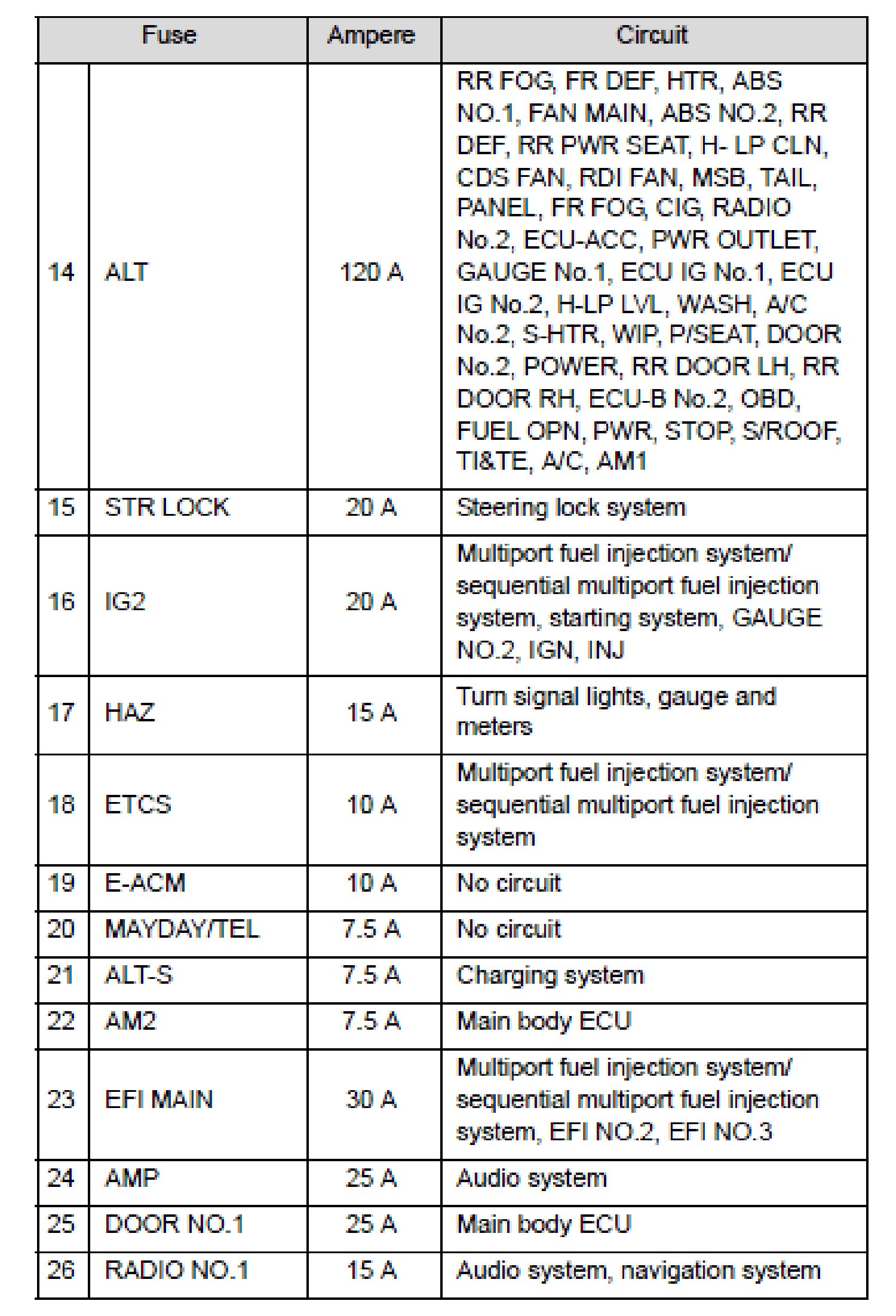

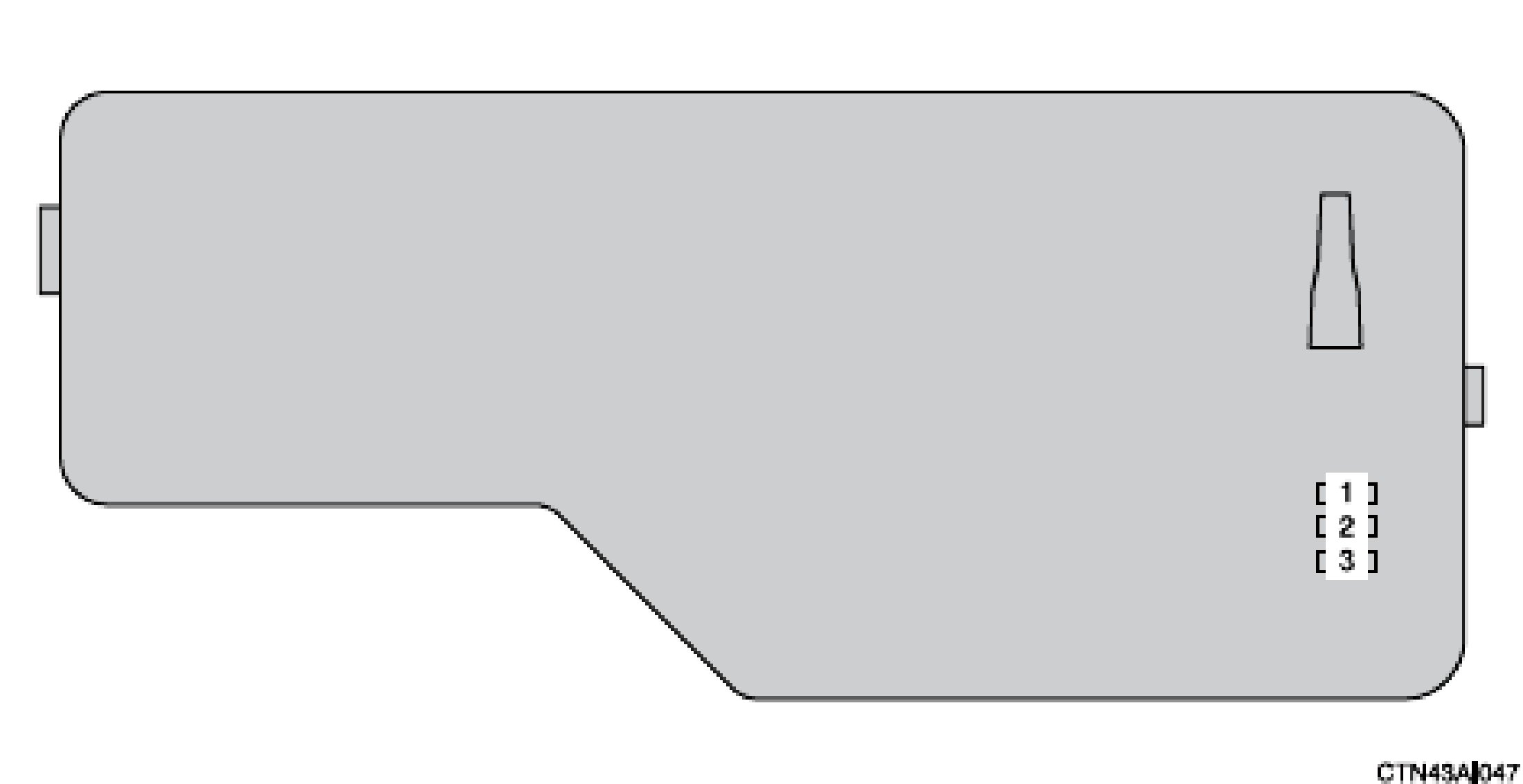

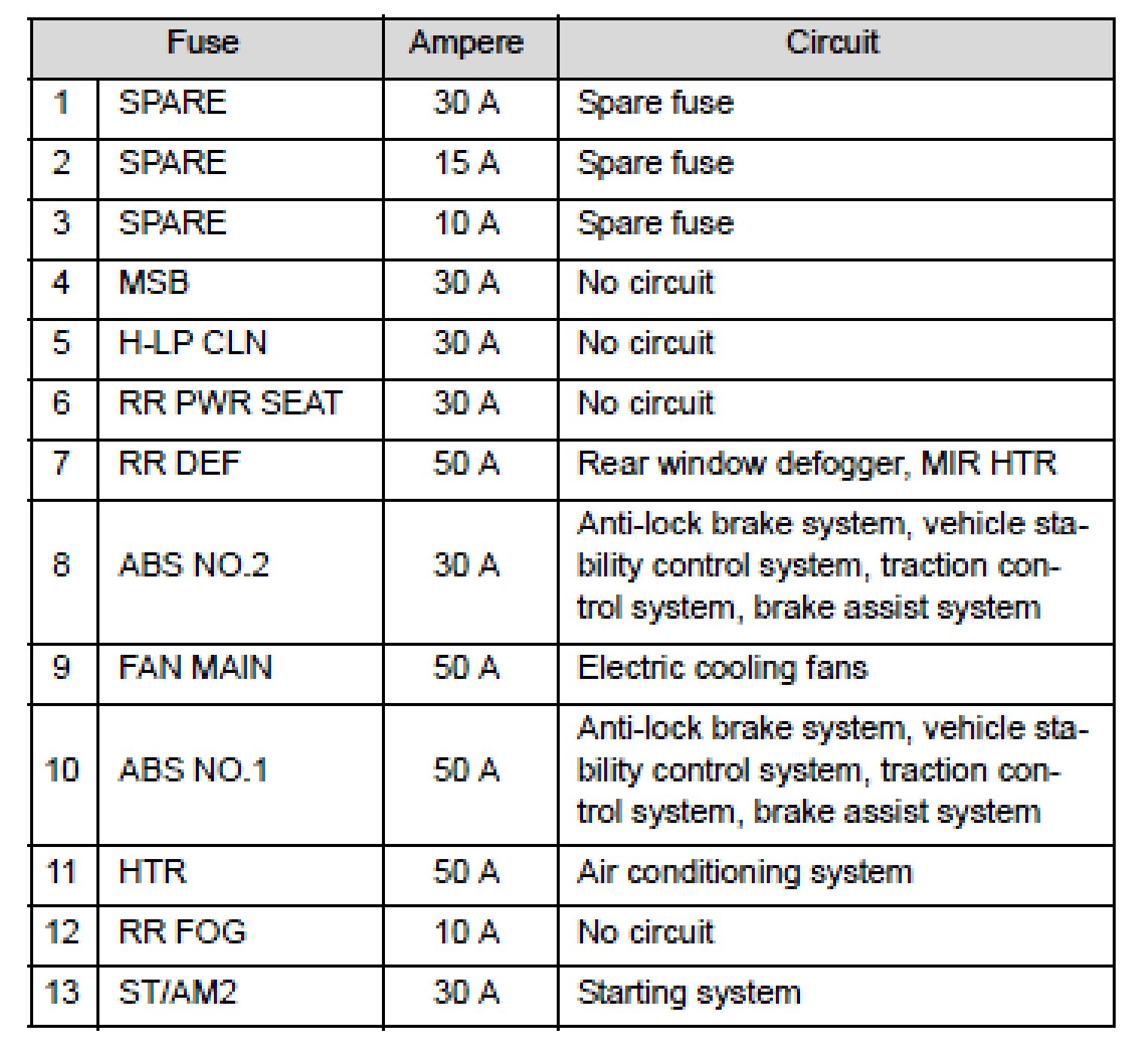

Fuse Location Part 1:

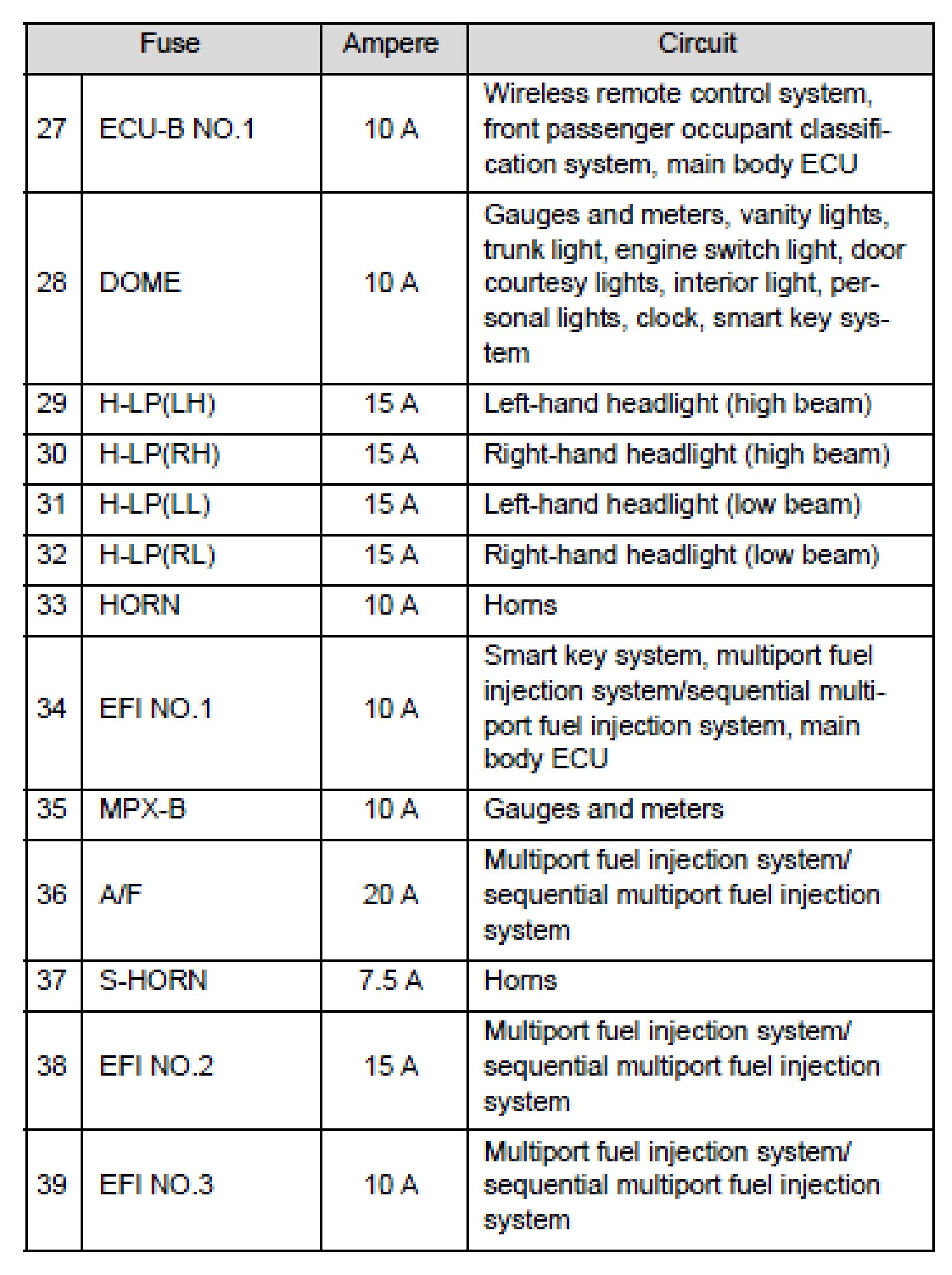

Fuse Location Part 2:

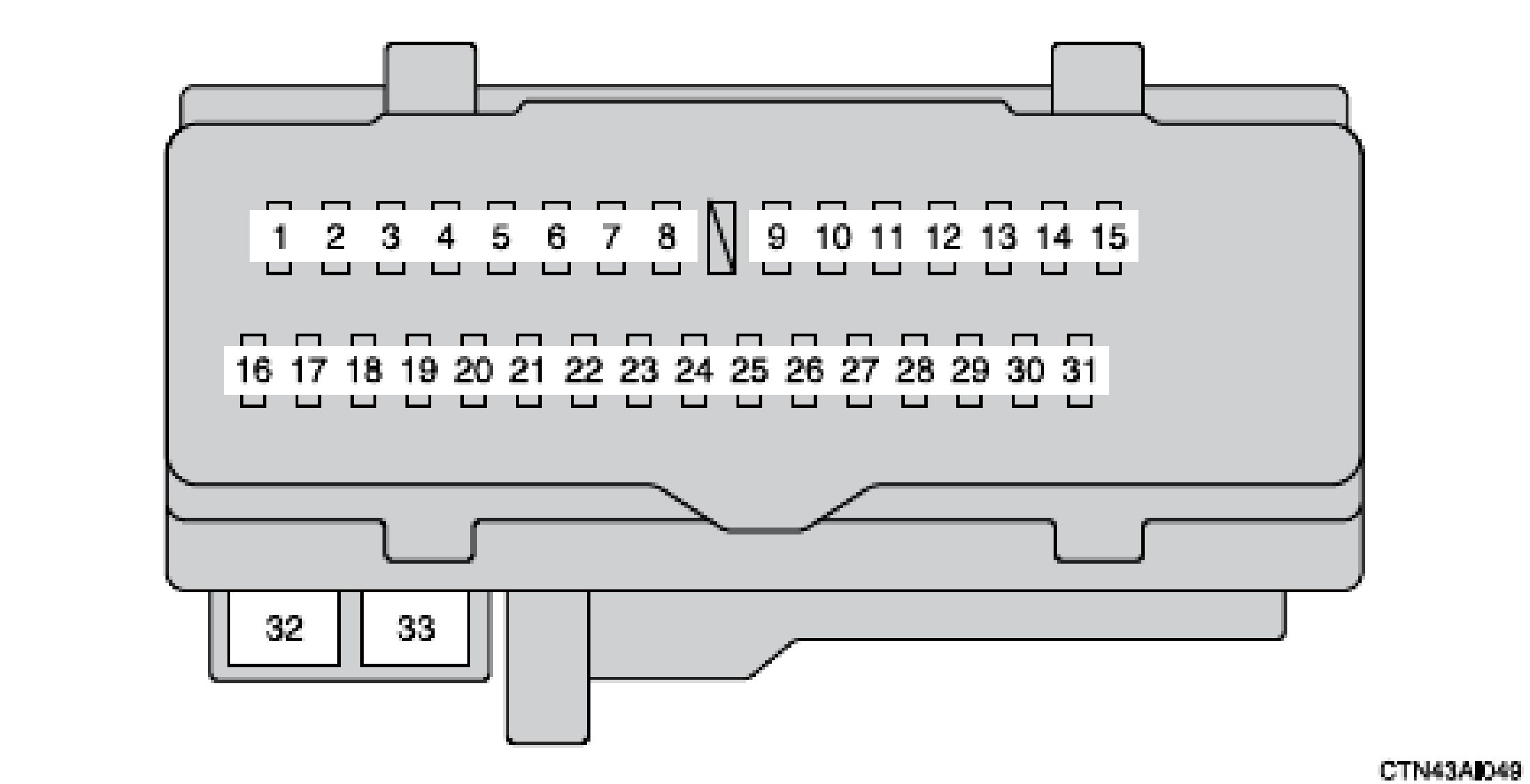

Left Side Instrument Panel:

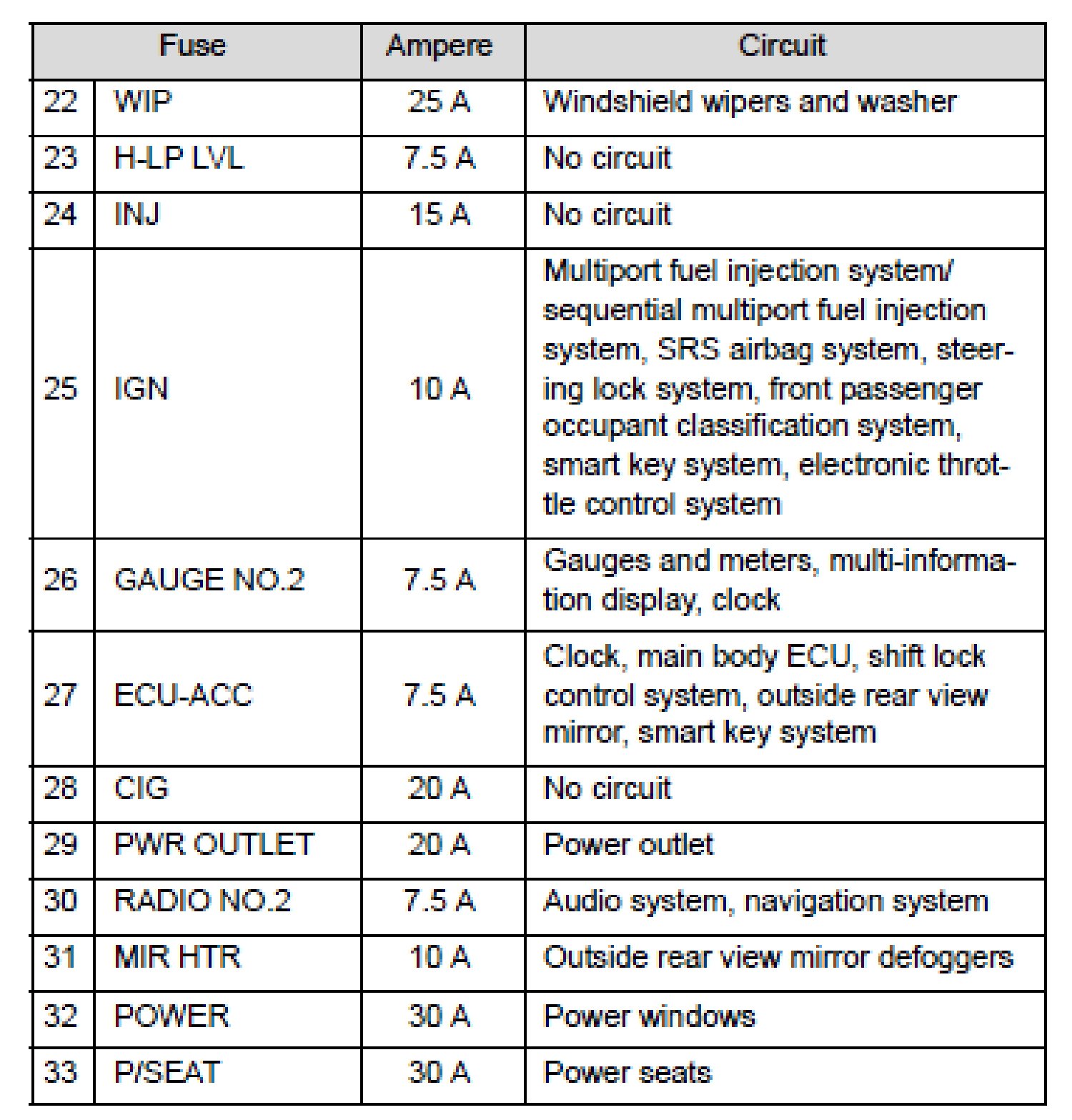

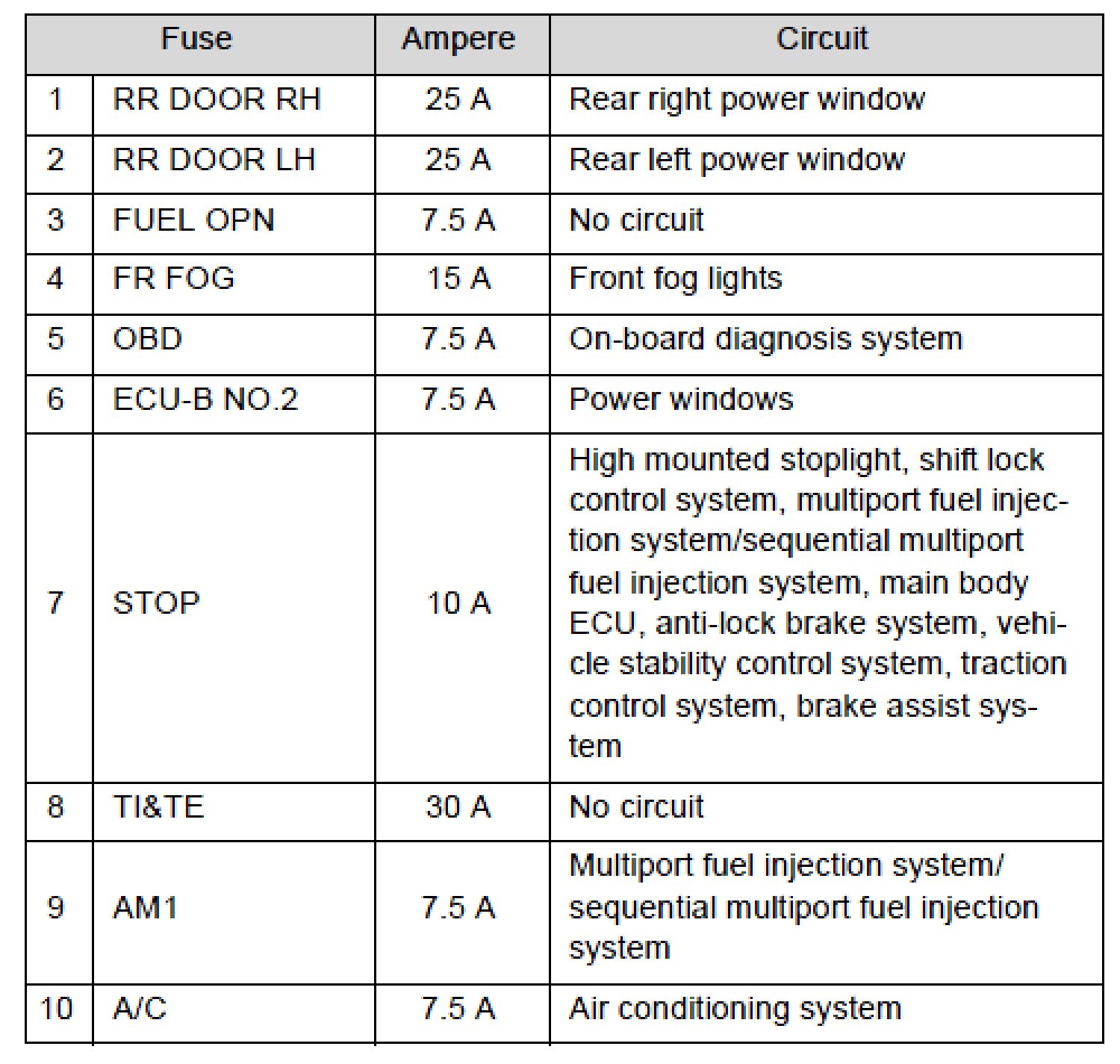

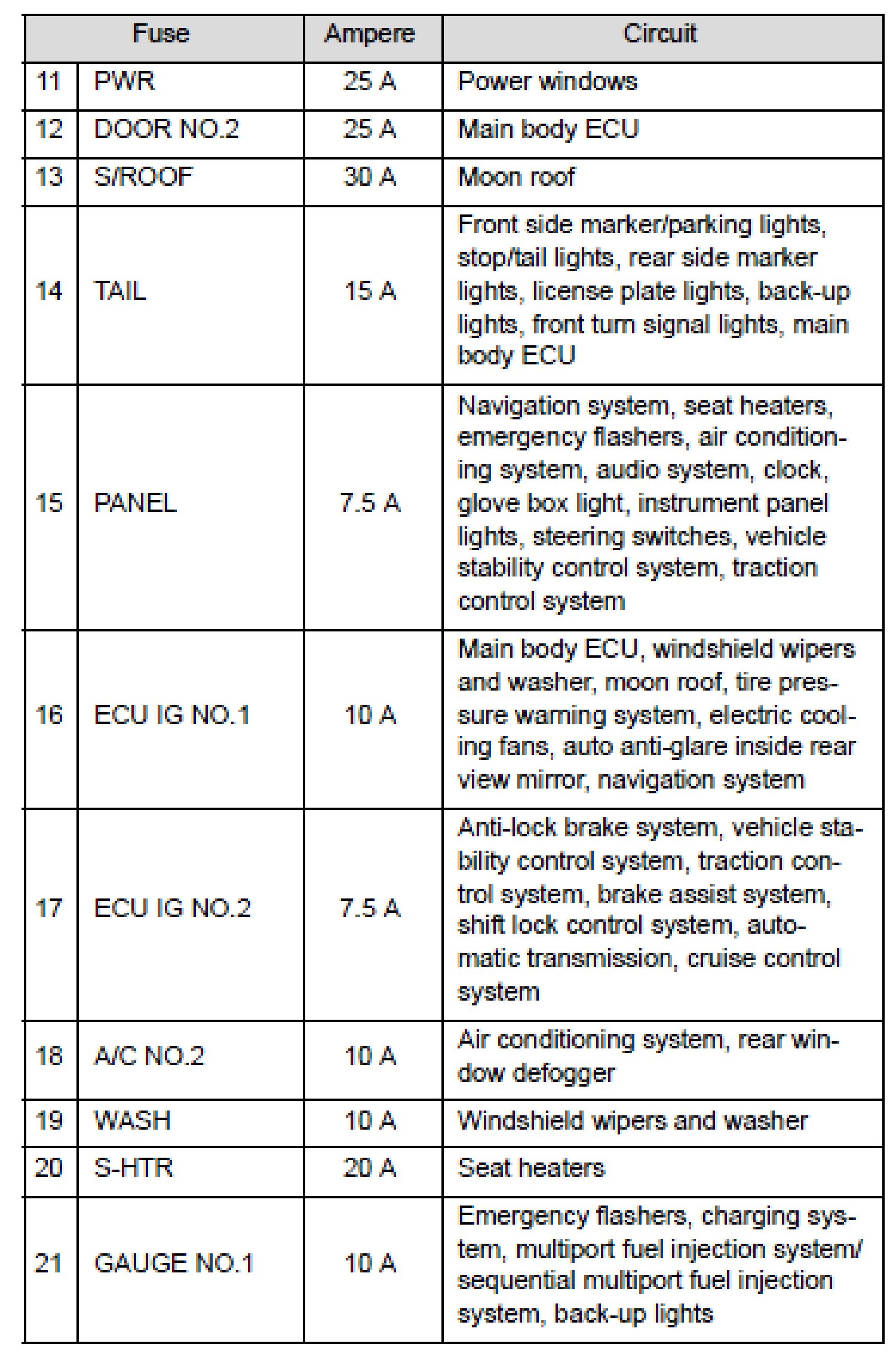

Fuse Location:
