Ground Locations
>>
Wire and Wire, Ground Points In Body
Wire and Wire, Ground Points In Body

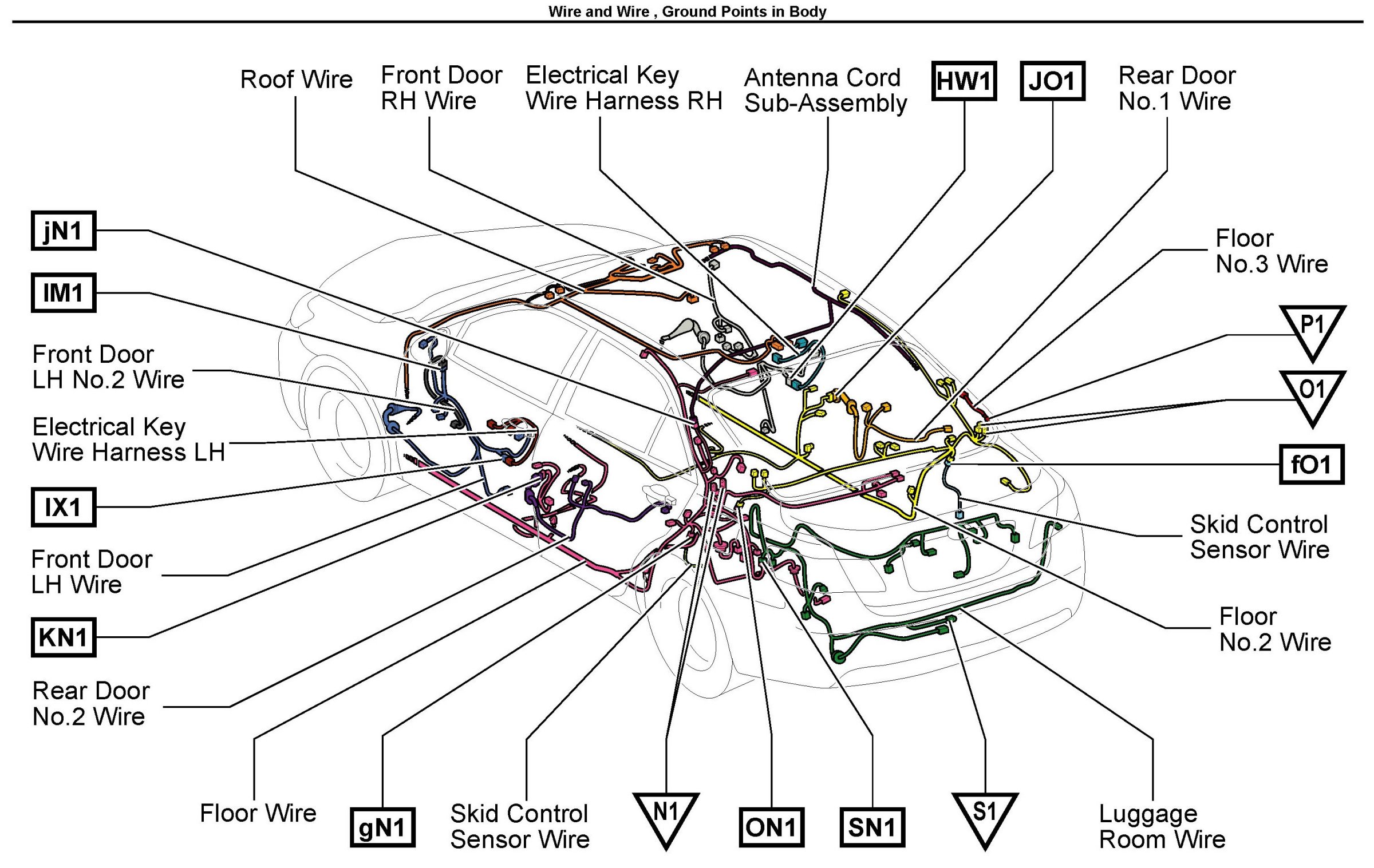

N1-S1, fO1-SN1 Positions:

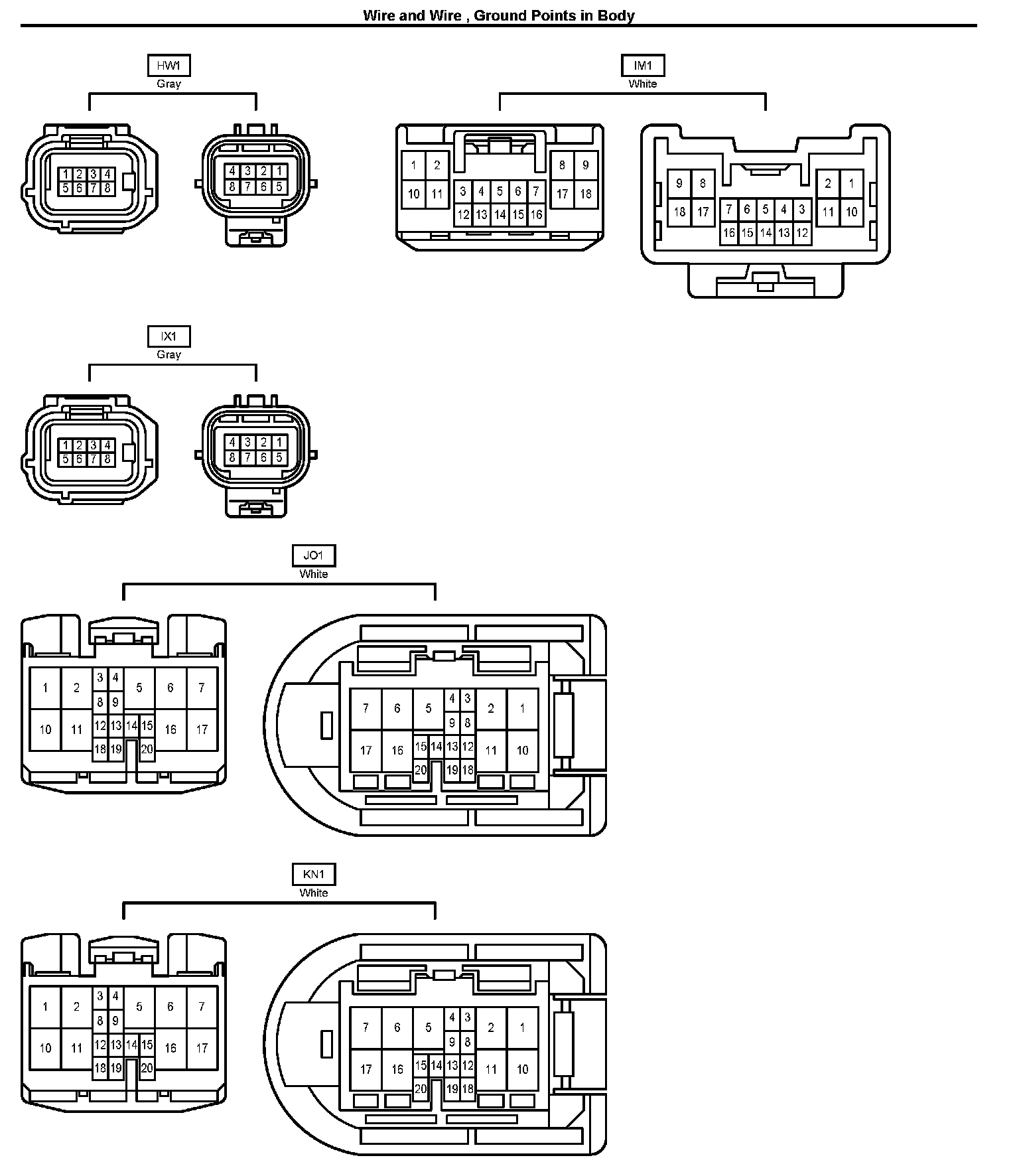

HW1-KN1 Connector Views:

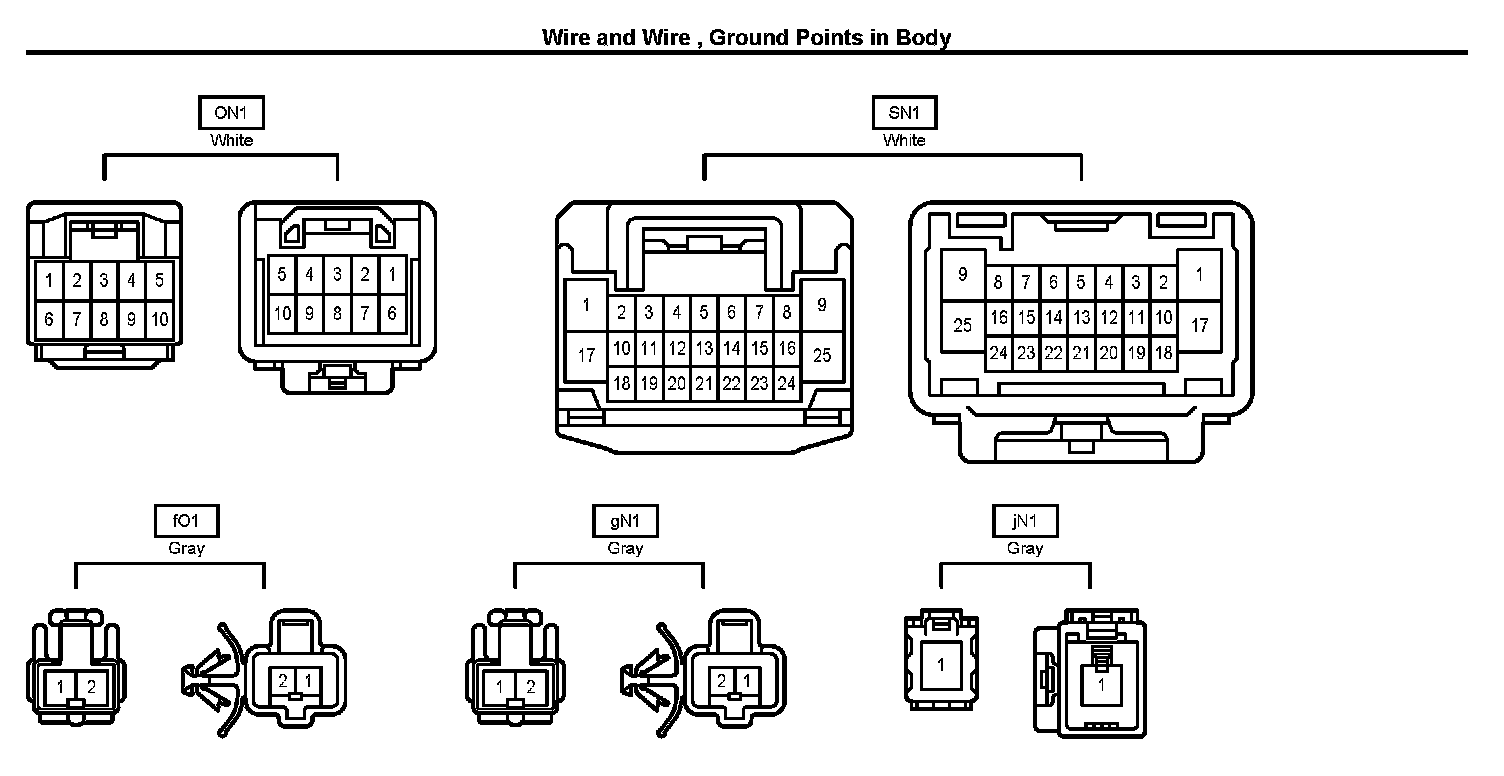

f01-SN1 Connector Views:
