Installation

LIGHTING: REAR DOOR COURTESY SWITCH: INSTALLATION

1. INSTALL REAR DOOR COURTESY SWITCH ASSEMBLY

(a) Connect the connector.

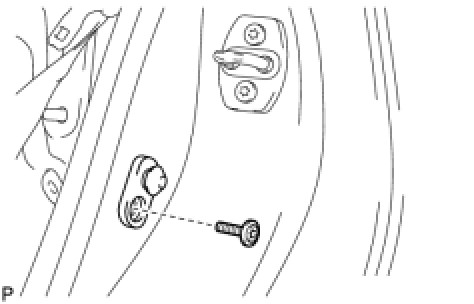

(b) Using a "TORX" socket wrench (T30), install the rear door courtesy switch assembly with the "TORX" bolt.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
