Installation

LIGHTING: FRONT DOOR COURTESY SWITCH: INSTALLATION

1. INSTALL FRONT DOOR COURTESY SWITCH ASSEMBLY

(a) Connect the connector.

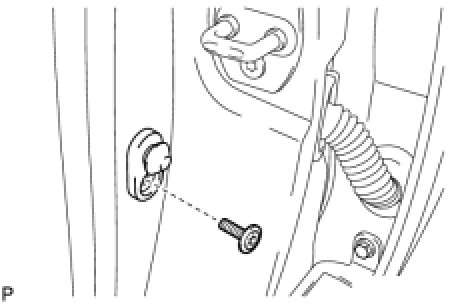

(b) Using a "TORX" socket wrench (T30), install the front door courtesy switch assembly with the "TORX" bolt.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
