Backup Lamp Switch: Testing and Inspection

LIGHTING: BACK-UP LIGHT SWITCH: INSPECTION

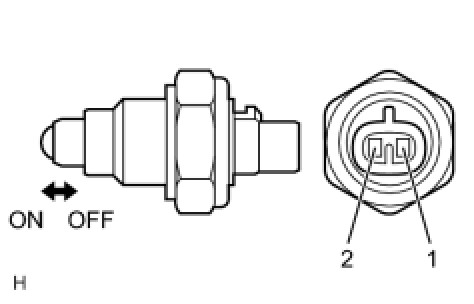

1. INSPECT BACK-UP LIGHT BULB (for Manual Transmission)

(a) Measure the resistance according to the value(s) in the table below.

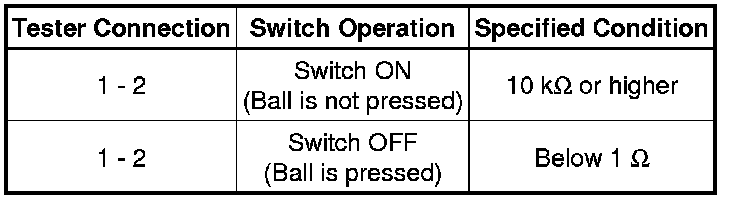

Standard resistance:





(b) If the result is not as specified, replace the back-up light switch.
