Home >> Toyota >> 2010 >> Camry V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Hose/Line HVAC >> Service and Repair

Hose/Line HVAC: Service and Repair

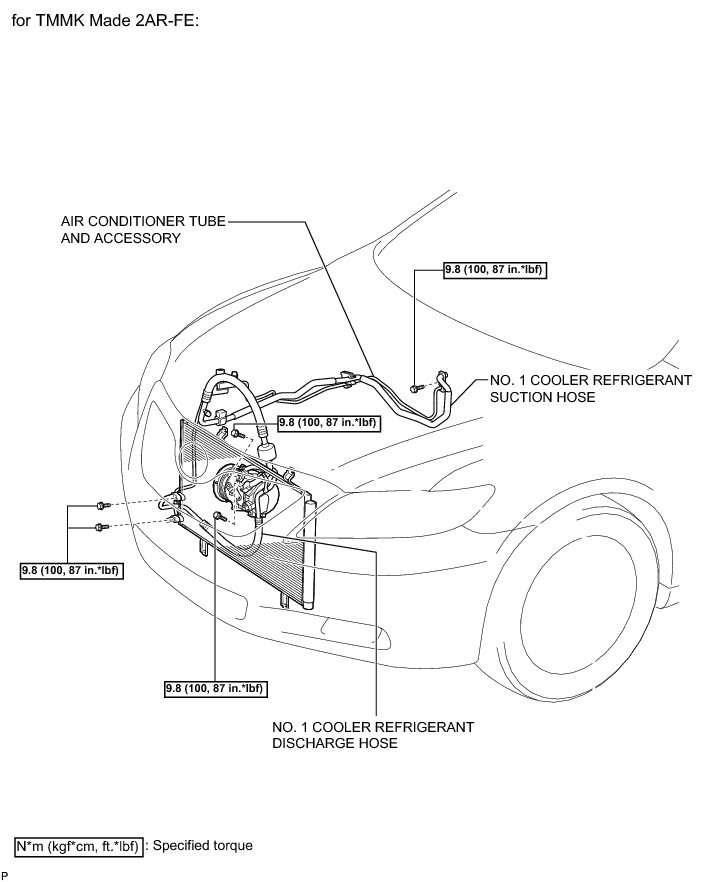

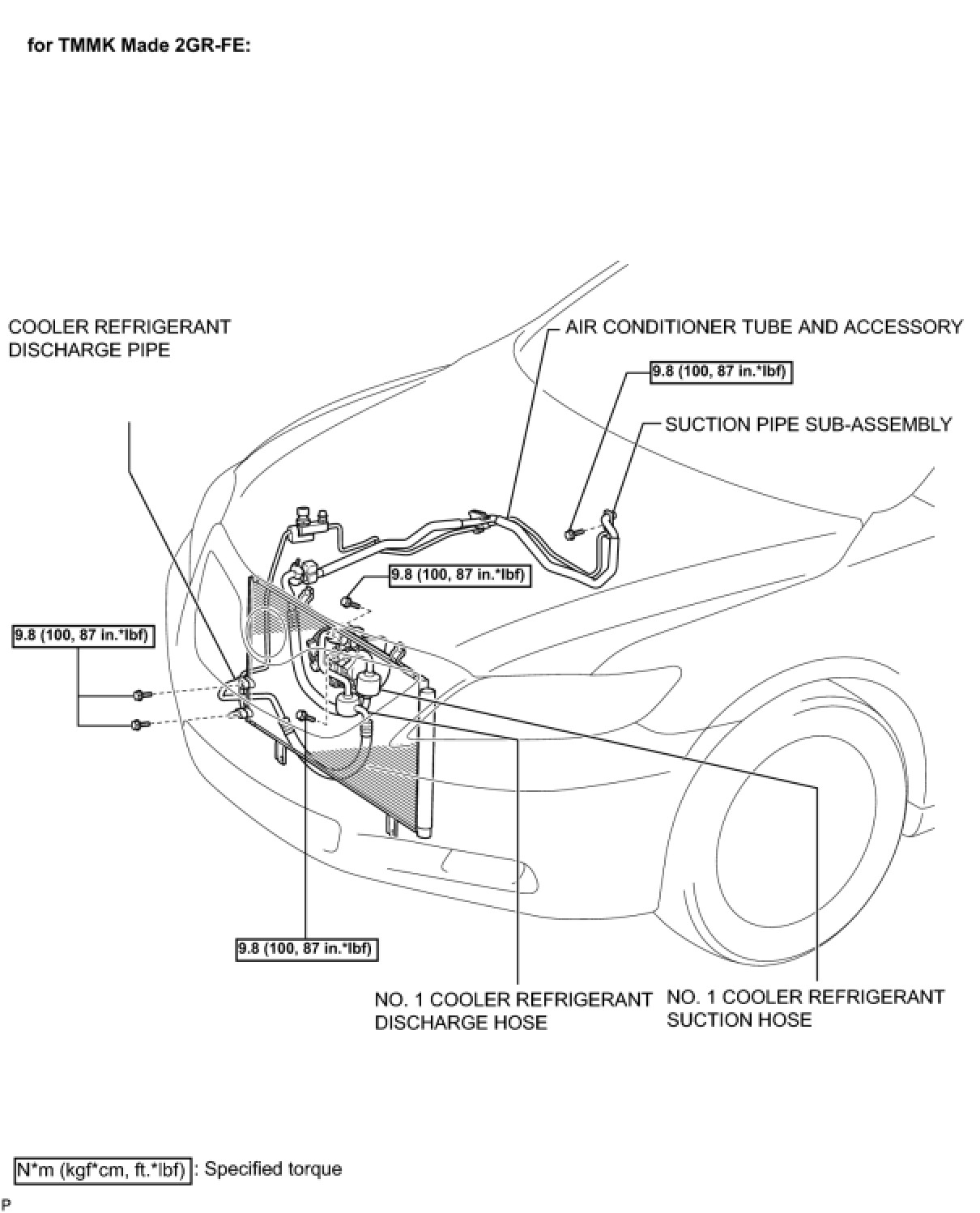

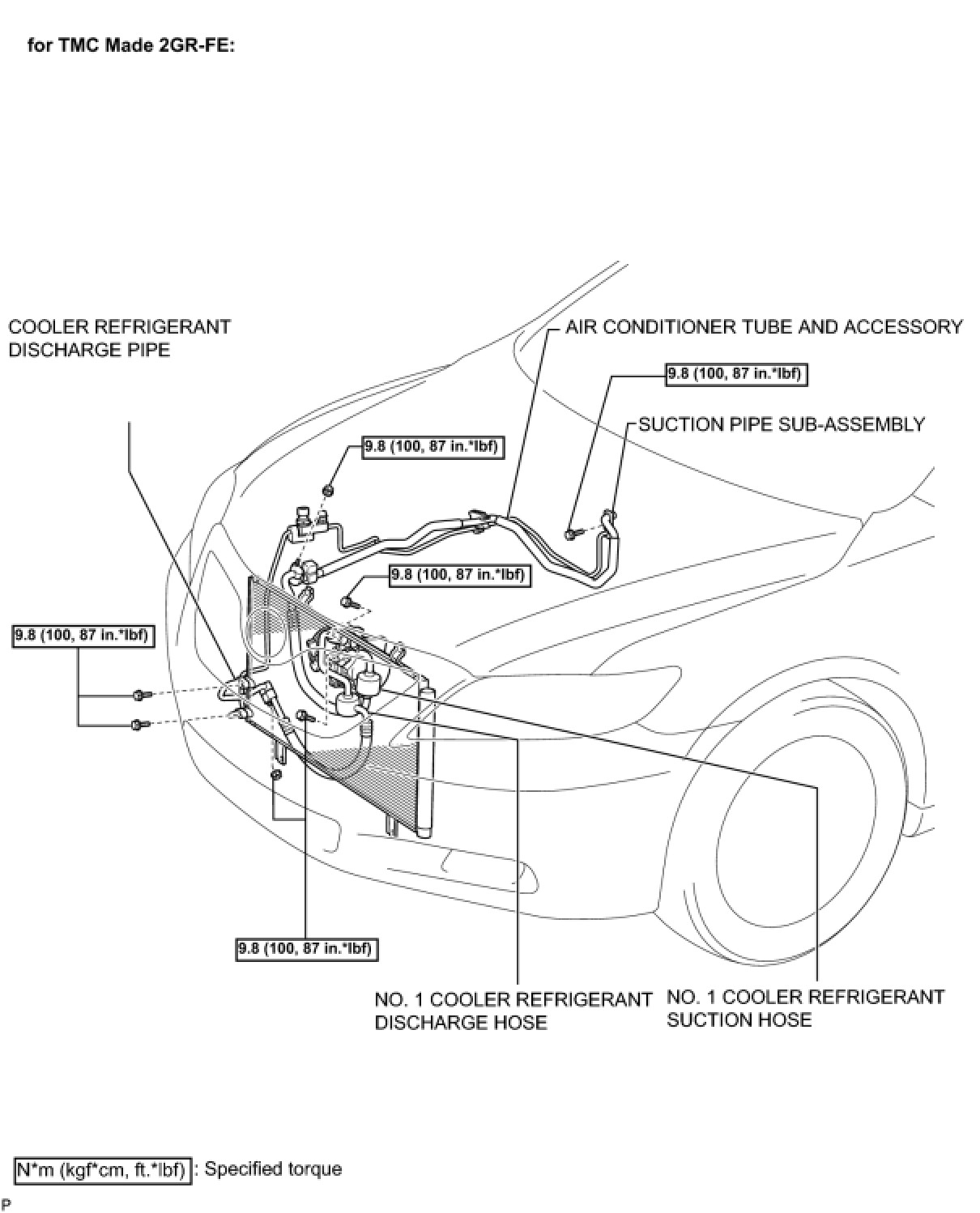

AIR CONDITIONING: REFRIGERANT LINE: COMPONENTS
