Brakes and Traction Control: Description and Operation

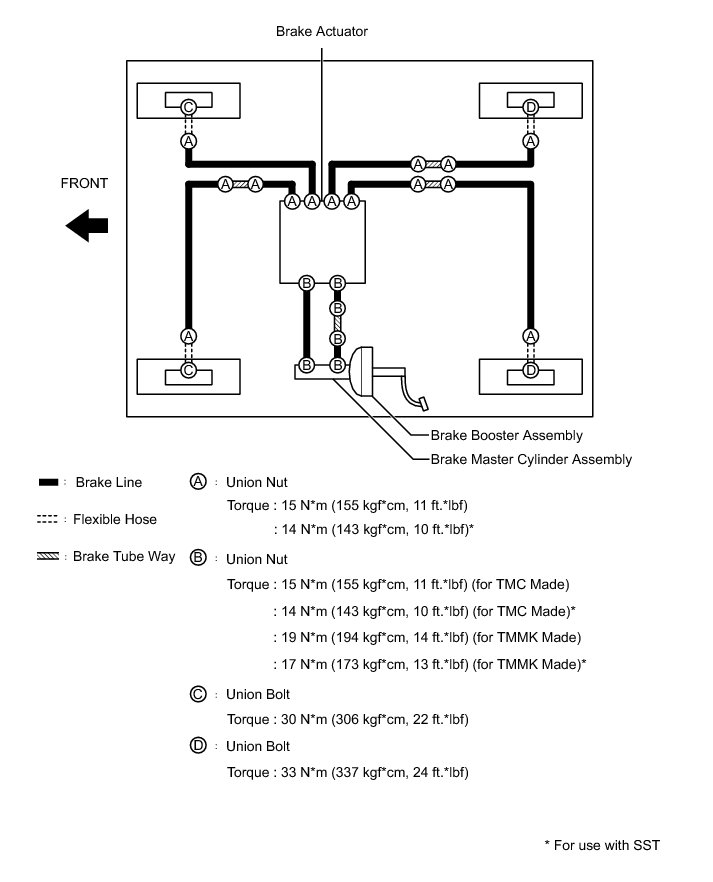

BRAKE: BRAKE SYSTEM: SYSTEM DIAGRAM

HINT
See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.
