Disassembly

BRAKE CONTROL: BRAKE ACTUATOR (for ADVICS Made): DISASSEMBLY

1. REMOVE BRAKE ACTUATOR BRACKET ASSEMBLY

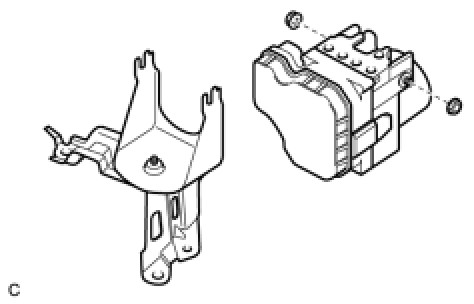

(a) Remove the 2 nuts and the brake actuator assembly from the actuator bracket assembly.
