Removal

GARAGE DOOR OPENER: GARAGE DOOR OPENER SWITCH: REMOVAL

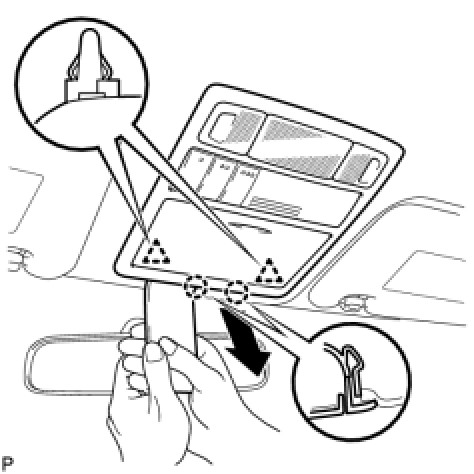

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

(a) Using a moulding remover, disengage the 2 clips and the 2 claws.





(b) Disconnect the connectors and remove the roof console box assembly.
