Engine Immobiliser System (w/o Smart Key System)
>>
System Diagram
System Diagram

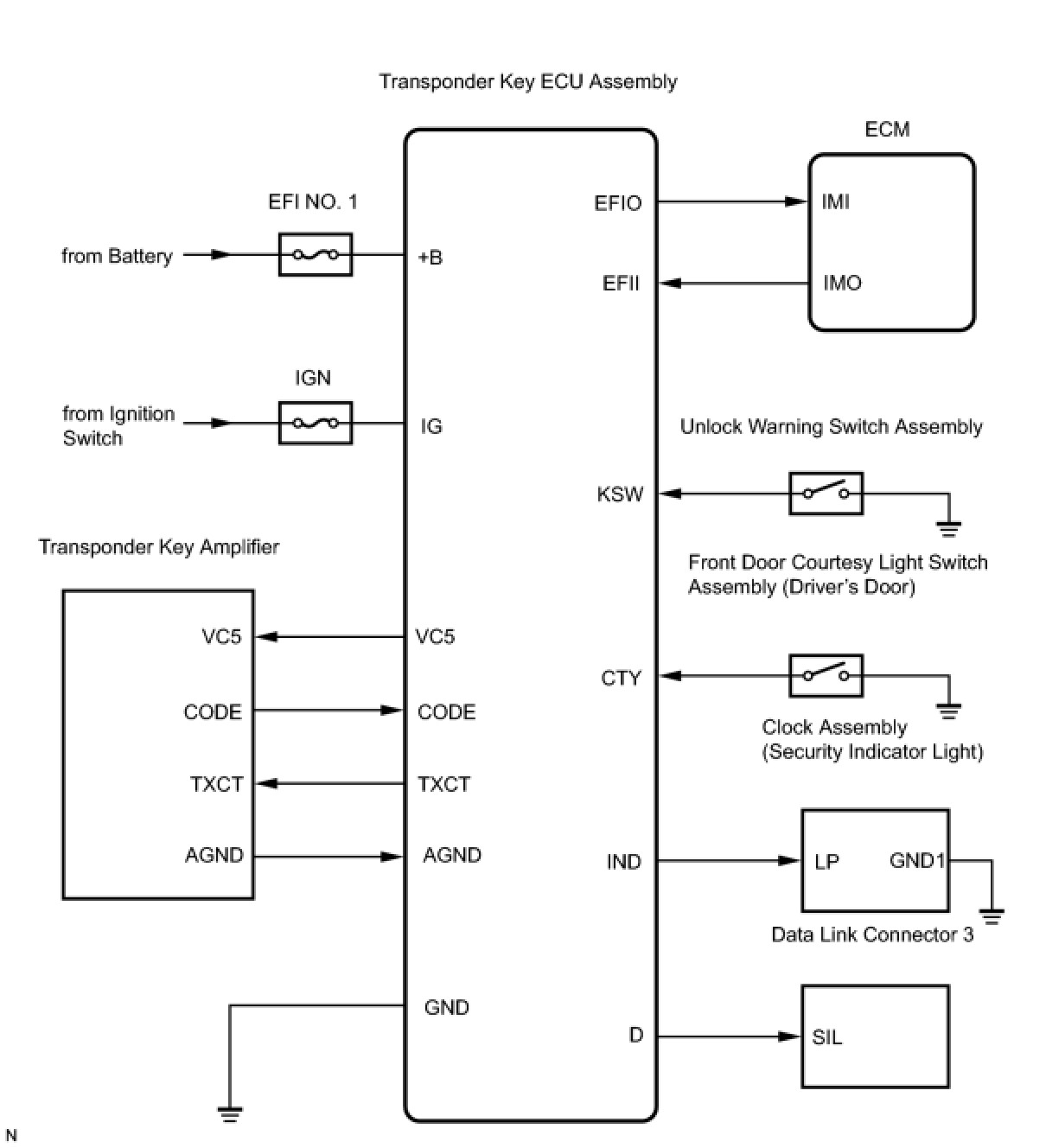

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): SYSTEM DIAGRAM
