Curtain Shield Airbag Assembly
>>
Components
Components

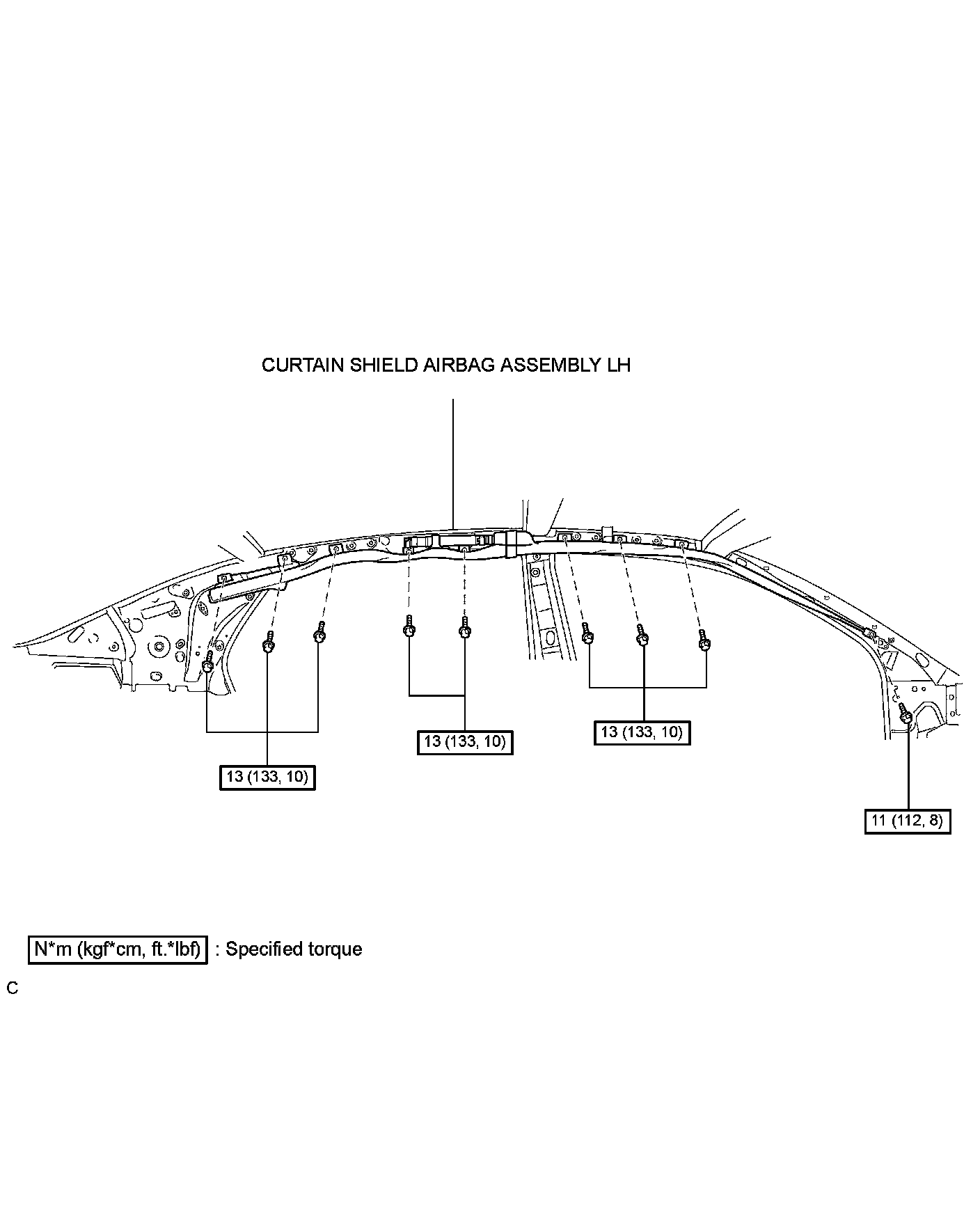

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: COMPONENTS
