Home
>>
Toyota
>>
2010
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
>>

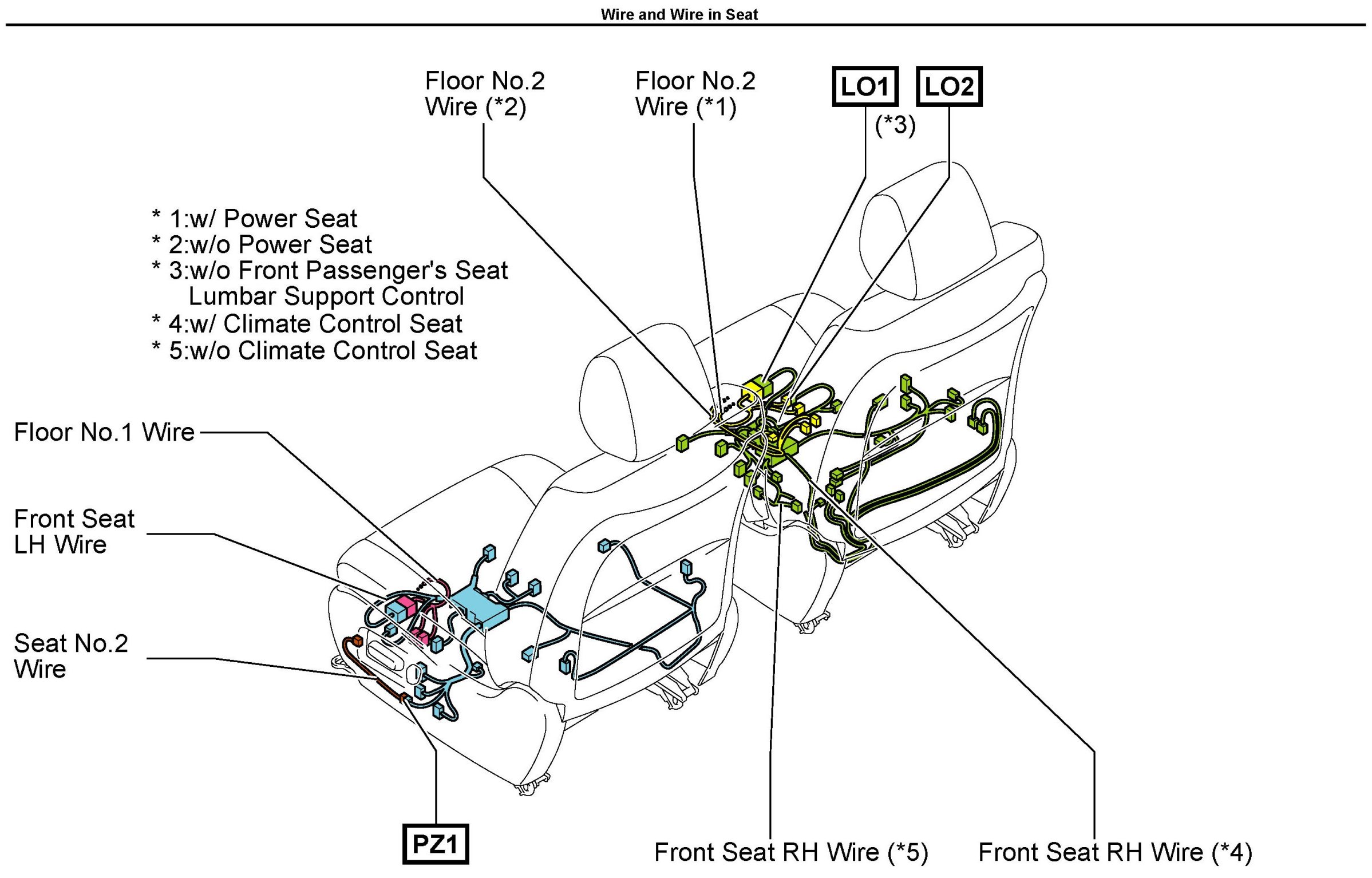

Wire and Wire In Seat
Wire and Wire In Seat

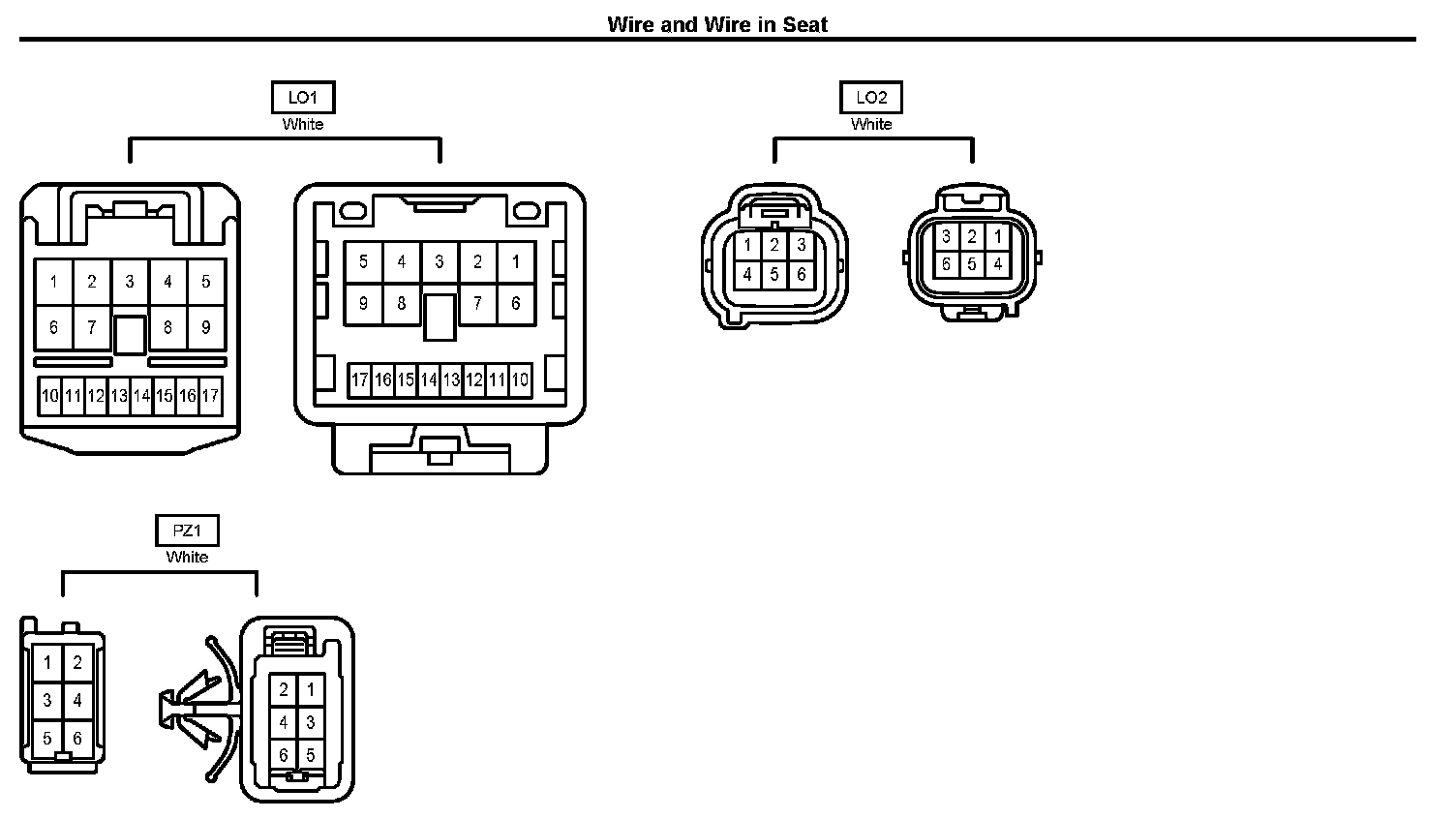

LO1-PZ1:
LO1-PZ1:
