Home
>>
Toyota
>>
2010
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>

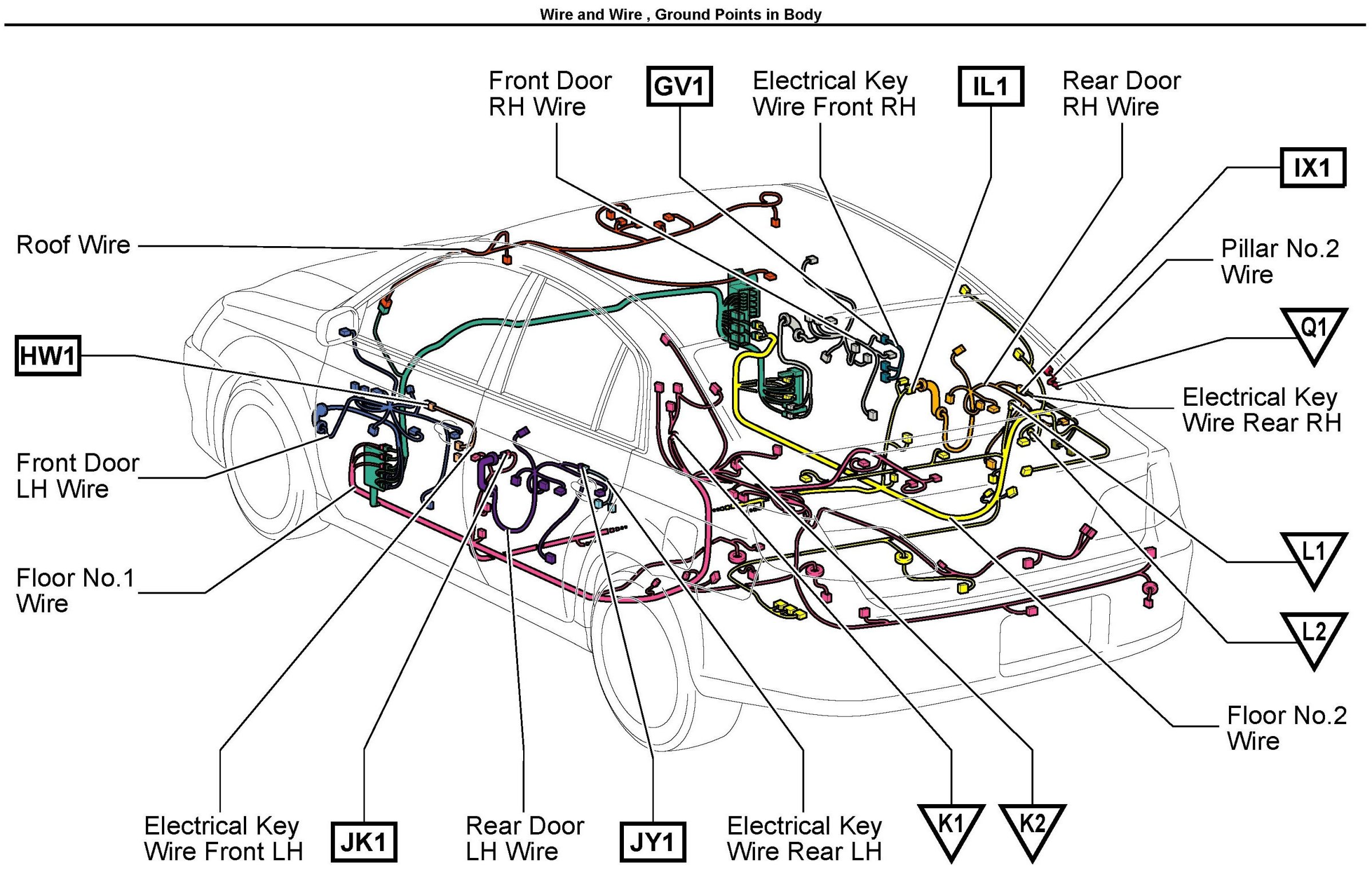

Wire and Wire, Ground Points In Body
Wire and Wire, Ground Points In Body

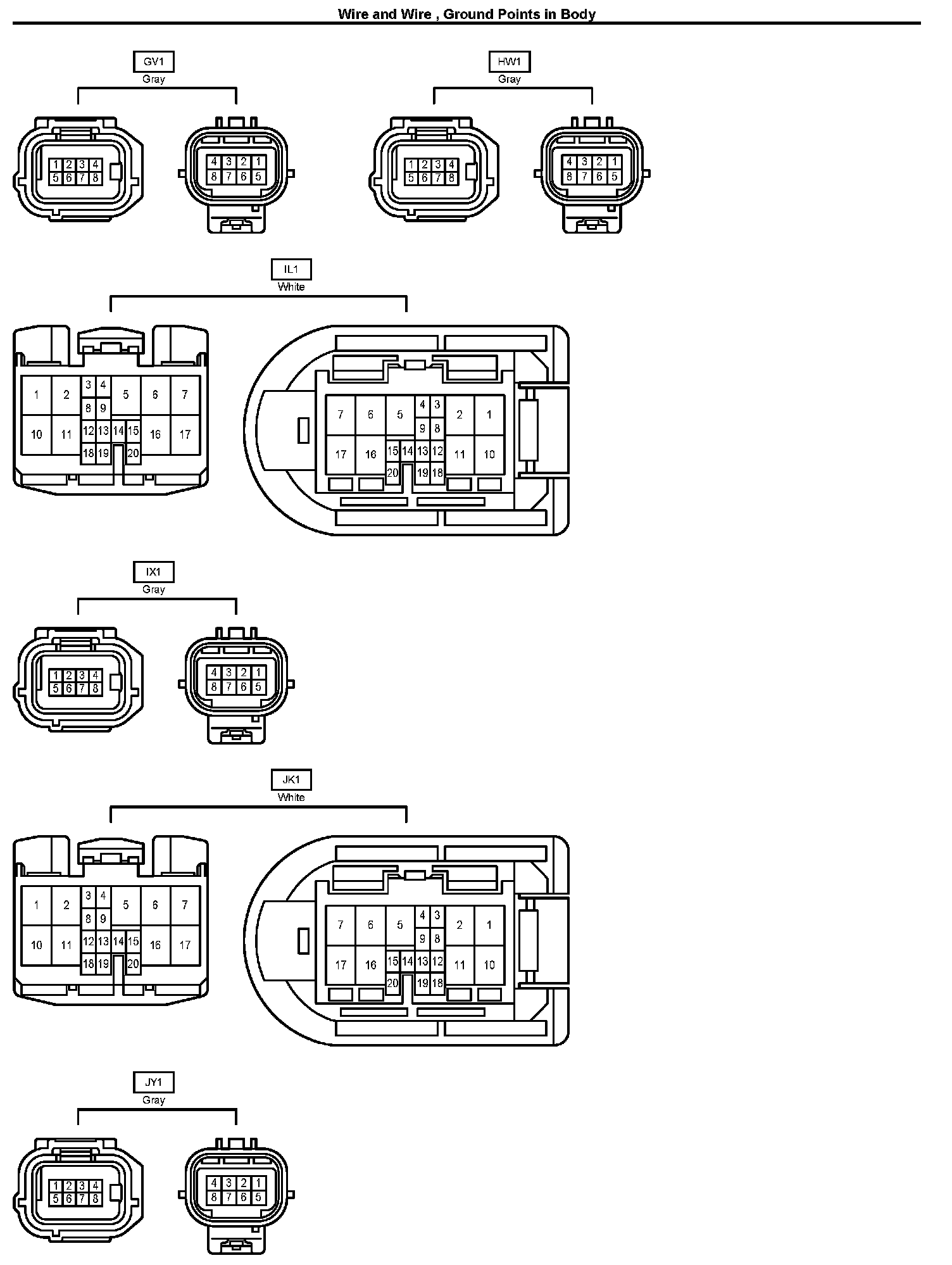

K1-Q1, GV1-JY1:
GV1-JY1:
