Front Door Courtesy Switch

LIGHTING: FRONT DOOR COURTESY SWITCH: INSPECTION

1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH

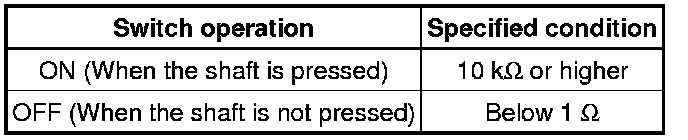

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:
