Courtesy Lamp: Testing and Inspection

LIGHTING: DOOR COURTESY LIGHT: INSPECTION

1. INSPECT COURTESY LIGHT ASSEMBLY

(a) Inspect the courtesy light.

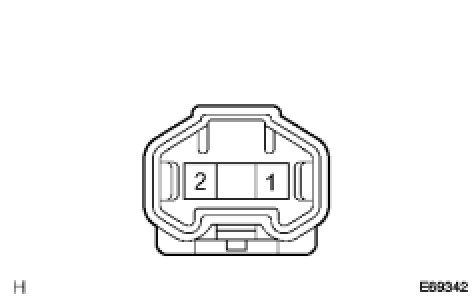

(1) Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1, then check that the courtesy light comes on.

OK:

The light comes on.
