Removal

LIGHTING: BACK-UP LIGHT ASSEMBLY: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.
* Installation is in the reverse order of removal.

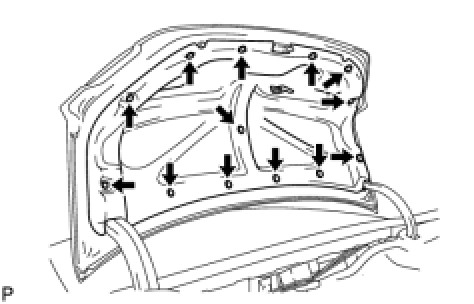

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

(a) Remove the 13 clips and the luggage compartment door cover.

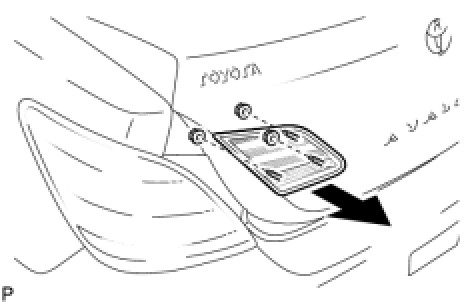

2. REMOVE BACK-UP LIGHT ASSEMBLY

(a) Disconnect the connector.





(b) Remove the 3 nuts and the rear light assembly LH.
