Removal

OTHER SYSTEM: CIGARETTE LIGHTER: REMOVAL

1. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal

2. REMOVE CIGARETTE LIGHTER ASSEMBLY

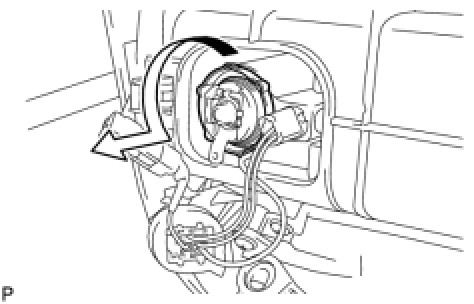

(a) Remove the ring nut as shown in the illustration.

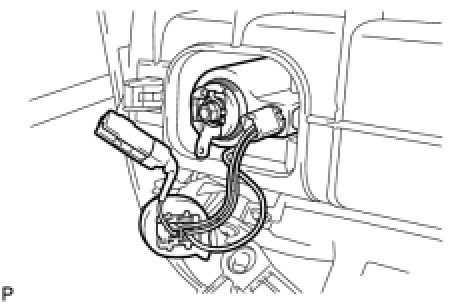

(b) Remove cigarette lighter socket and remove the cigarette lighter assembly.
