Trunk / Liftgate

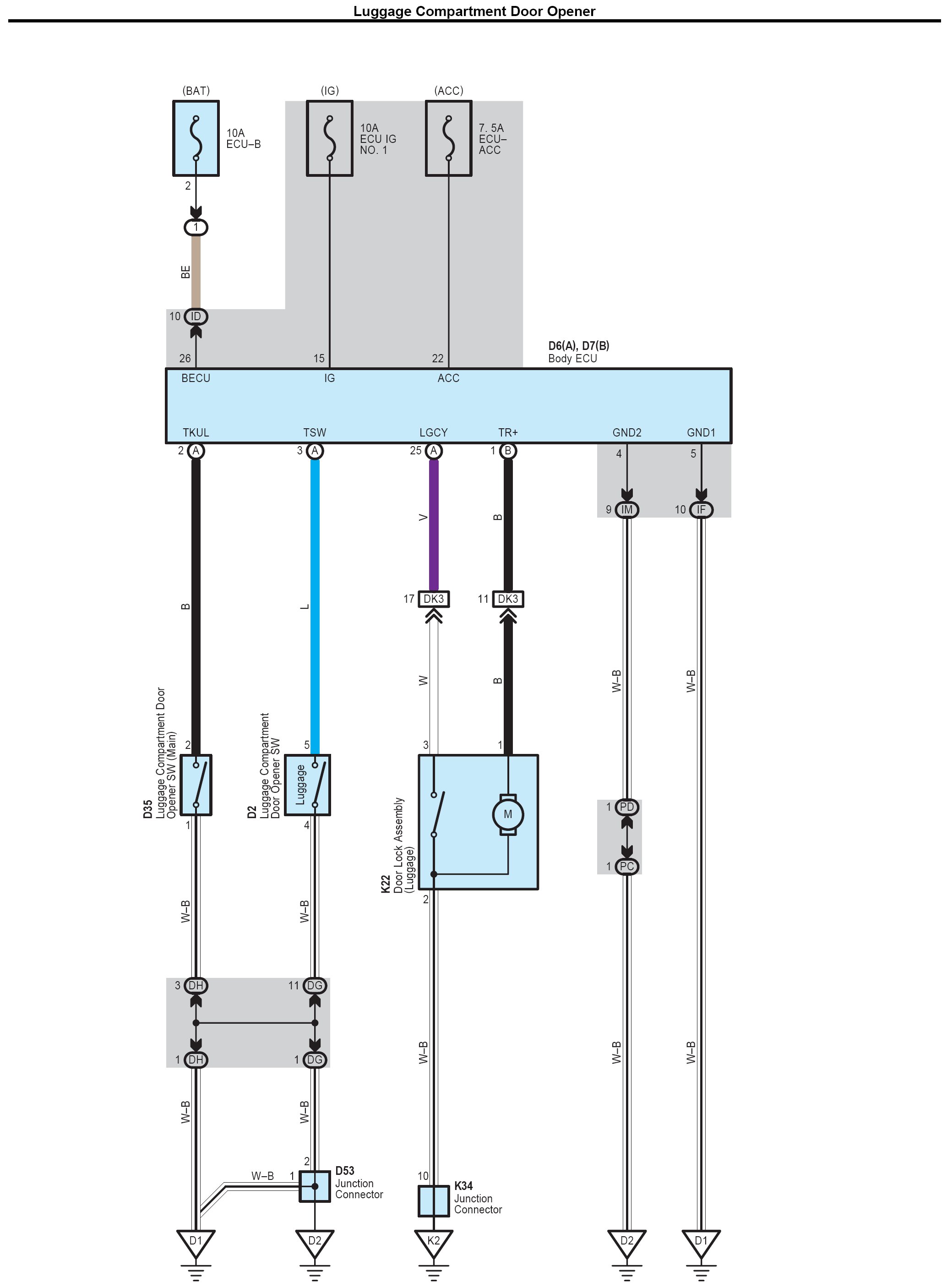

Luggage Compartment Door Opener:

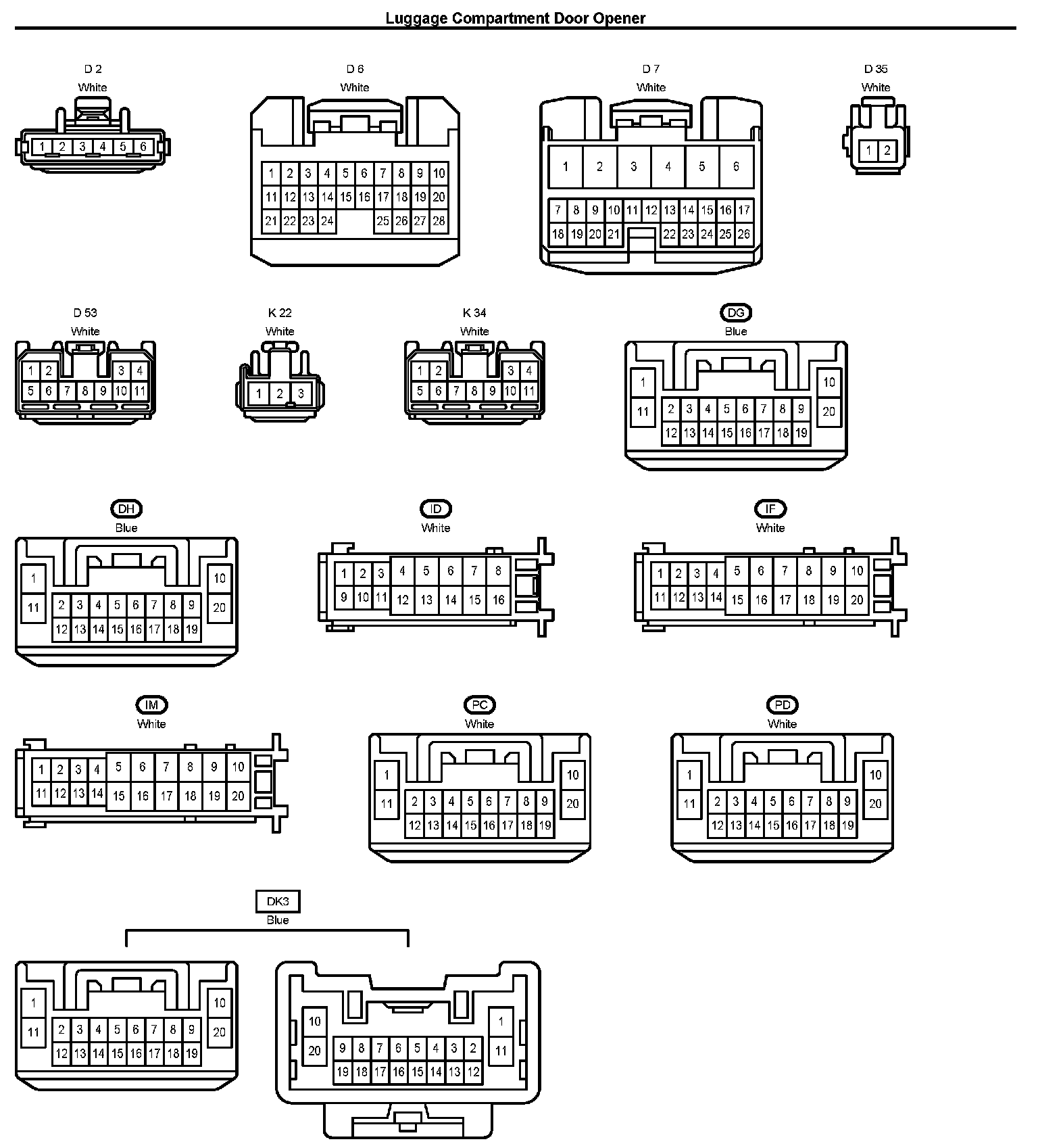

Connectors:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
