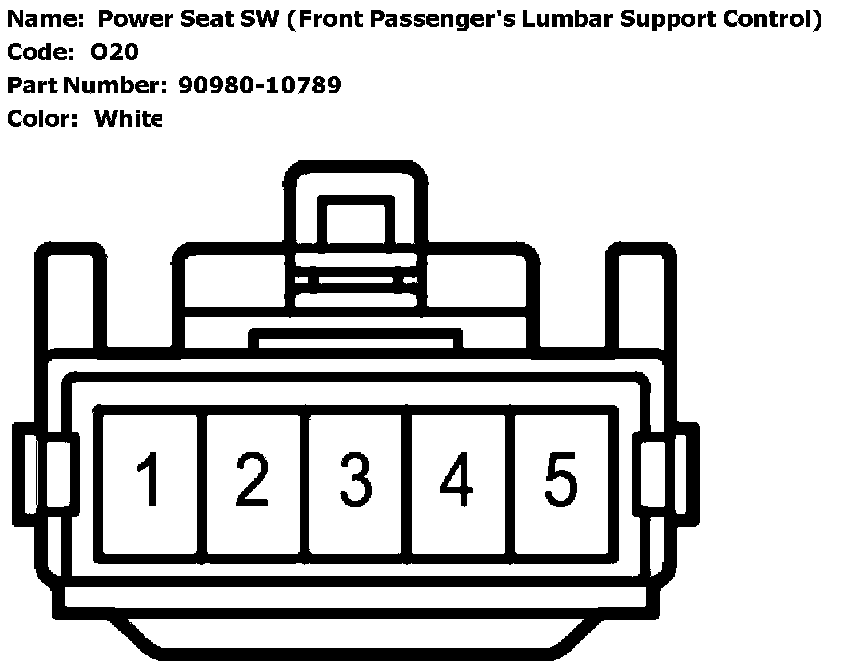

O20 (Power Seat SW (Front Passenger's Lumbar Support Control))
O20 (Power Seat SW (Front Passenger's Lumbar Support Control))
