Problem Symptoms Table

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

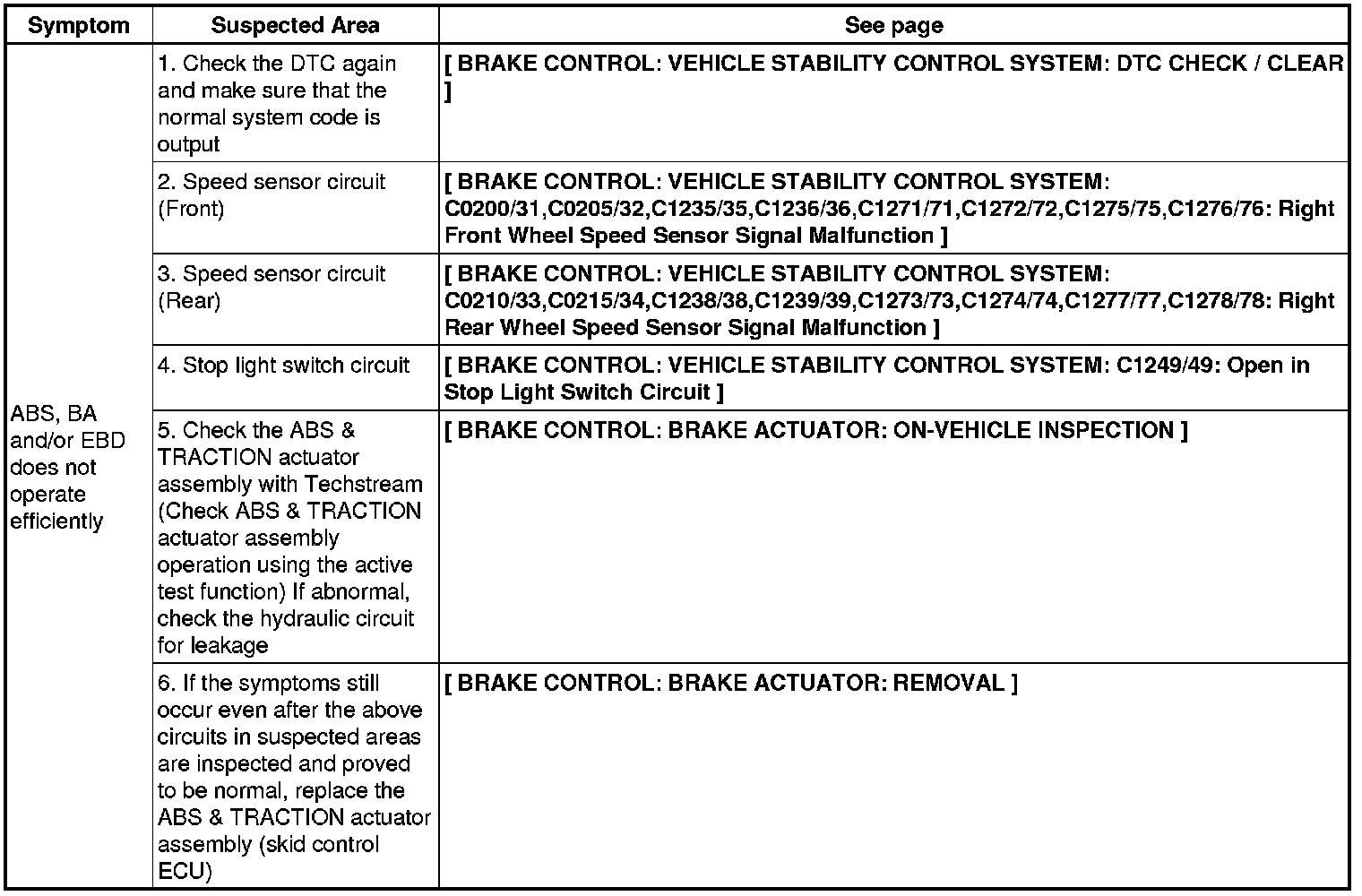

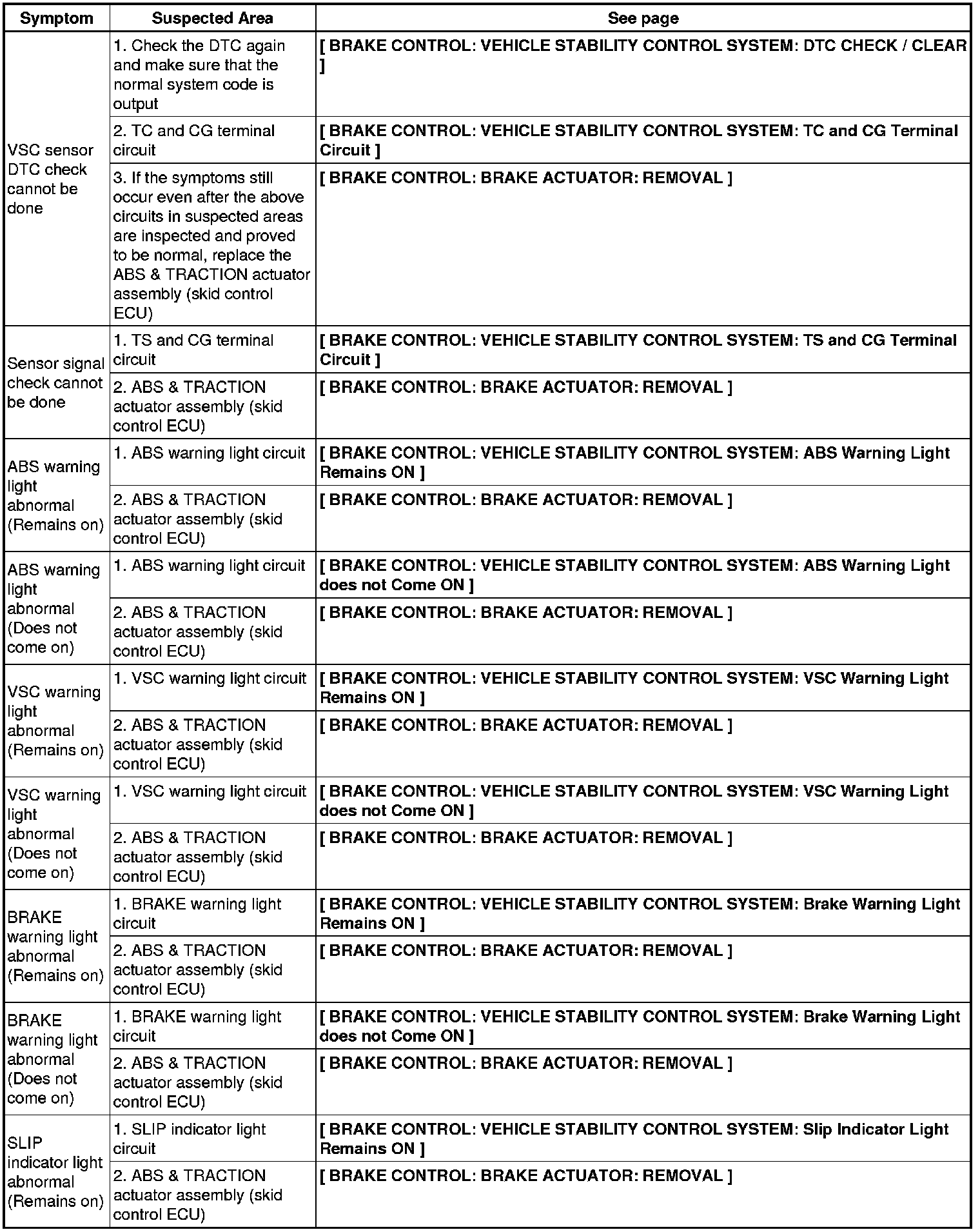

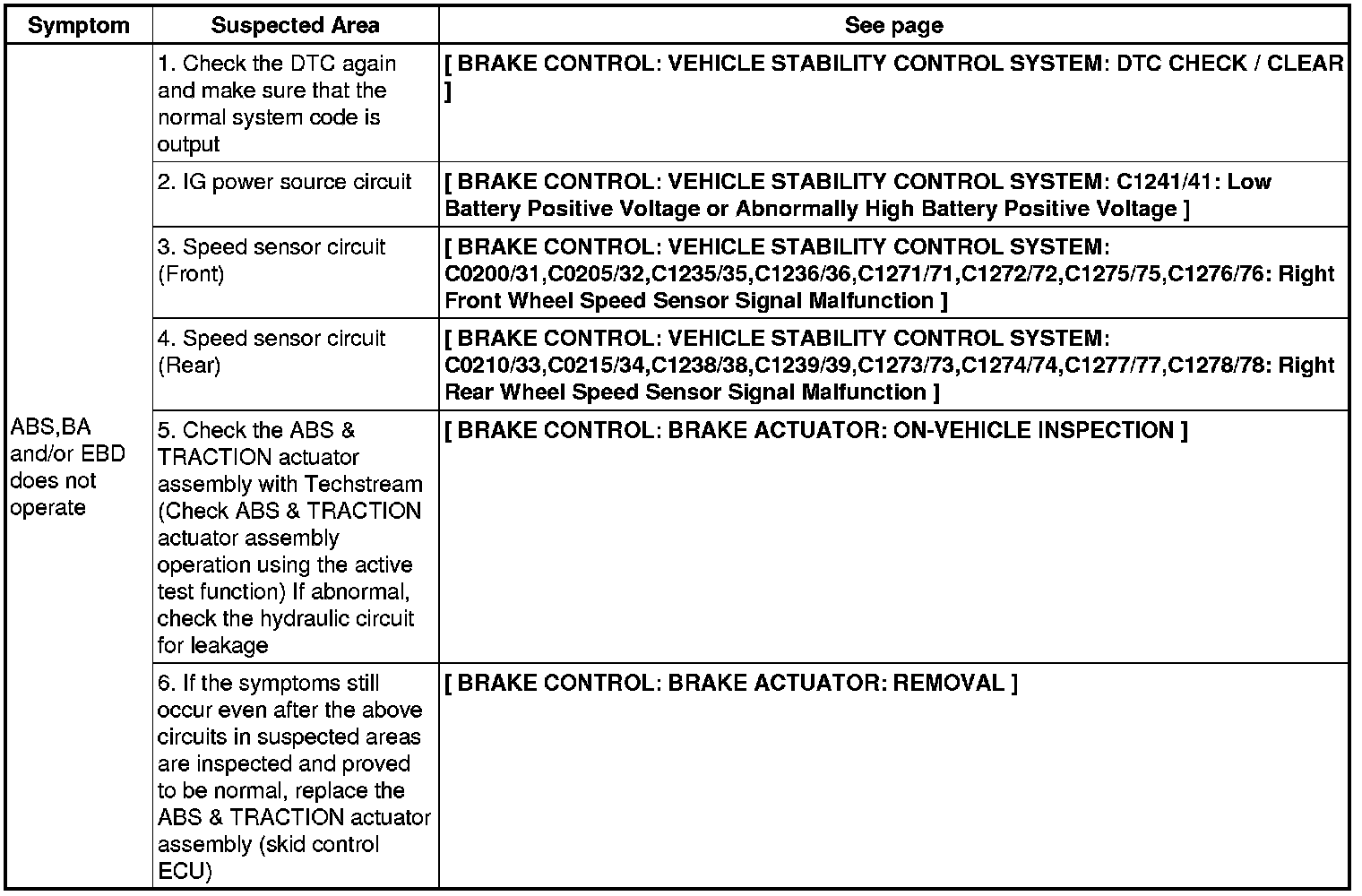

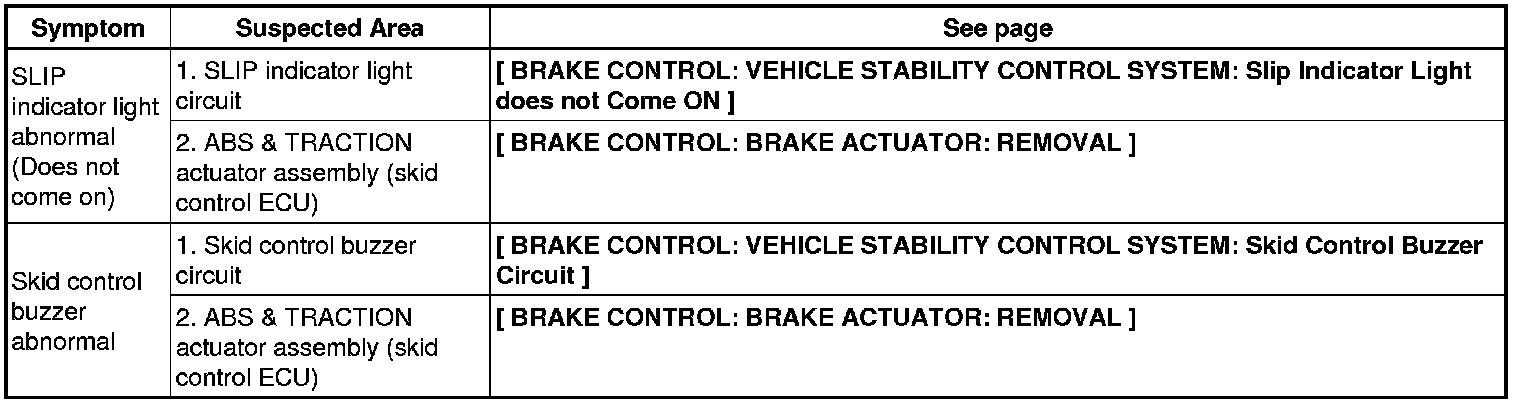

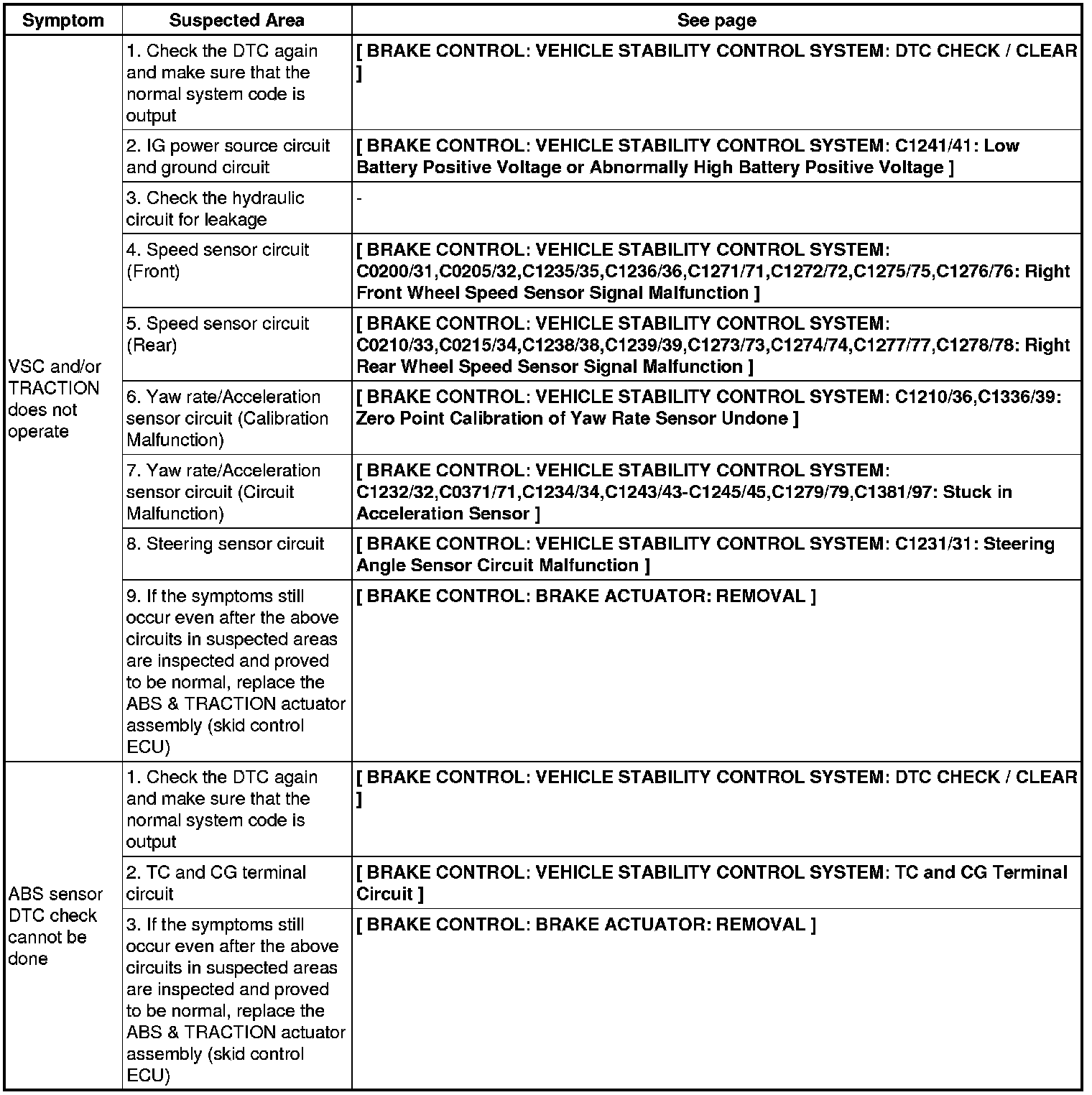

If there are no DTCs output but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting.
